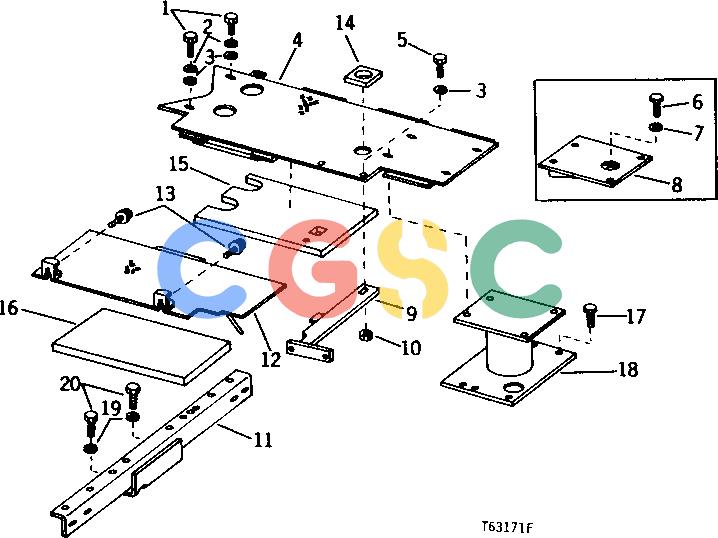

约翰迪尔零件查询410 - BACKHOE, LOADER CENTER PLATFORM AND BATTERY COVER (SERIAL NO. -388072) [02C06]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
709 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19H2284
|
[4] |
Cap Screw
|
|
| 2. |
12H304
|
[2] |
Lock Washer
|
|
| 3. |
24H1305
|
[3] |
Washer
|
|
| 4. |
AT37771
|
[1] |
Platform
|
|
| 4. |
AT39739
|
[1] |
Platform
|
|
| 5. |
19H3483
|
[1] |
Cap Screw
|
|
| 6. |
19H2898
|
[2] |
Cap Screw
|
|
| 7. |
12H301
|
[2] |
Lock Washer
|
|
| 8. |
AT33062
|
[1] |
Support
|
|
| 9. |
AT33064
|
[1] |
Brace
|
|
| 10. |
14H812
|
[1] |
Nut
|
|
| 11. |
AT53579
|
[1] |
Support
|
|
| 11. |
T33928
|
[1] |
Support
|
|
| 12. |
AT37770
|
[1] |
Cover
|
|
| 13. |
T34037
|
[2] |
Screw
|
|
| 14. |
T36273
|
[1] |
Isolator
|
|
| 15. |
T45625
|
[1] |
Pad
|
|
| 16. |
T45621
|
[1] |
Isolator
|
|
| 17. |
19H2993
|
[4] |
Cap Screw
|
|
| 18. |
AT59086
|
[1] |
Support
|
|
| 19. |
12H301
|
[2] |
Lock Washer
|
|
| 20. |
19H1815
|
[2] |
Cap Screw
|
|
