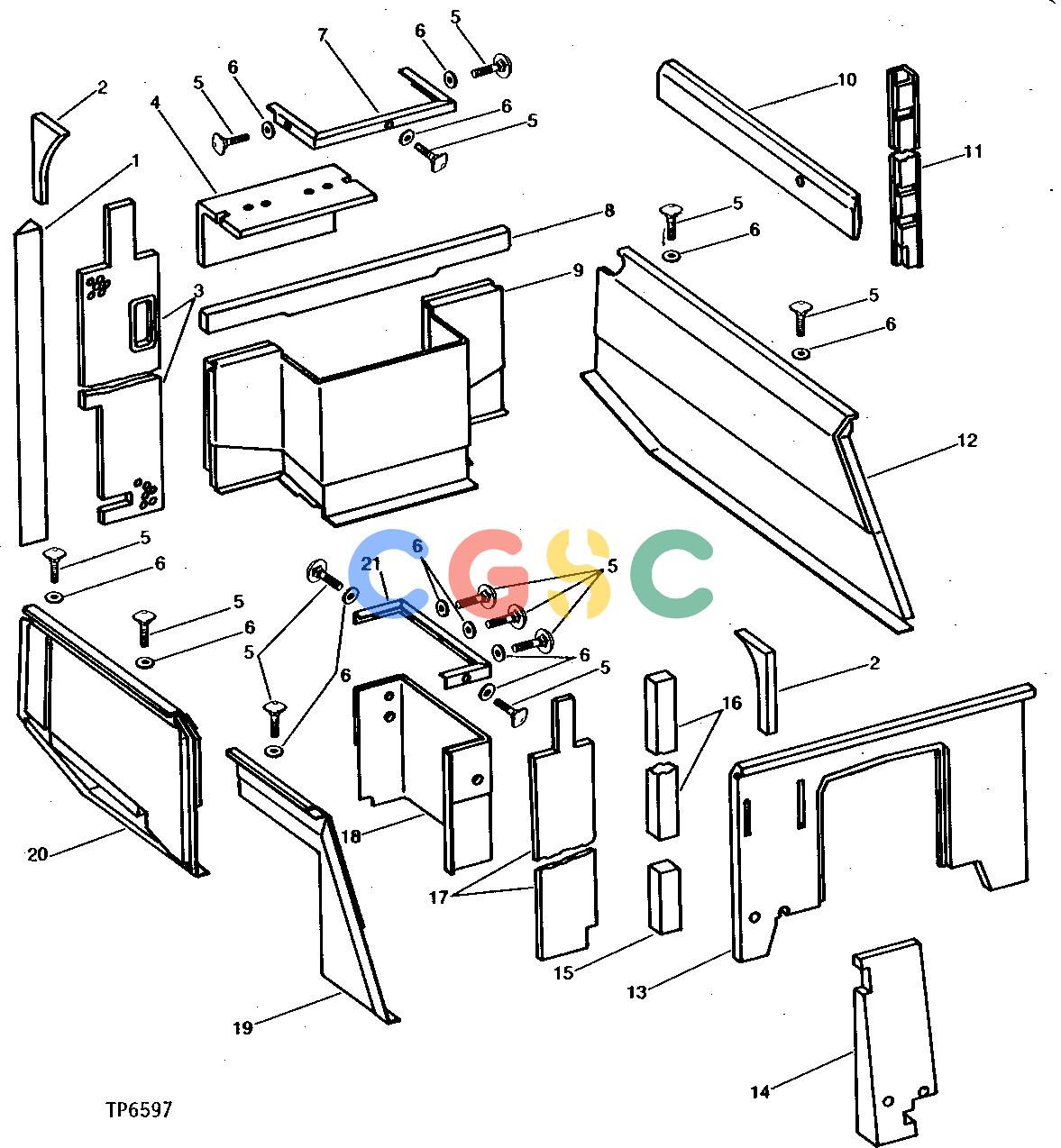

Pos.	Part No	Qty	Parts name	Comments
1.	T75335	[2]	Reinforcement	REAR POST
2.	T75324	[4]	Gusset	POST
3.	AT73214	[1]	Barrier	REAR RIGHT POST
3.	AT73215	[1]	Barrier	REAR LEFT POST (NOT ILLUSTRATED)
4.	T135327	[1]	Isolator	BACKHOE VALVE COVER, (SUB FOR T51223)
5.	37H112	[13]	Screw	0.190" X 1/2"
6.	24H1283	[13]	Washer	7/32" X 1/2" X 0.049"
7.	T75336	[1]	Molding	REAR CONSOLE
8.	T75330	[1]	Barrier	REAR
9.	AT73911	[1]	Barrier	REAR CONSOLE
10.	T75331	[1]	Barrier	RIGHT WINDOW (NOT ILLUSTRATED)
10.	T75332	[1]	Barrier	LEFT WINDOW
11.	T75333	[1]	Barrier	RIGHT WINDOW (NOT ILLUSTRATED)
11.	T75334	[1]	Barrier	LEFT WINDOW
12.	AT73227	[1]	Barrier	LEFT FENDER
13.	T75325	[1]	Barrier	FRONT
14.	T75326	[1]	Isolator	FRONT LEFT (NOT ILLUSTRATED)
14.	T75327	[1]	Reinforcement	FRONT RIGHT
15.	T51217	[2]	Isolator	FRONT POST TO CAB LOWER
16.	T51216	[2]	Isolator	FRONT POST TO CAB UPPER
17.	AT73216	[1]	Barrier	FRONT RIGHT POST
17.	AT73217	[1]	Barrier	FRONT LEFT POST (NOT ILLUSTRATED)
18.	AT73221	[1]	Barrier	RIGHT CONSOLE
19.	AT73219	[1]	Barrier	RIGHT FENDER FRONT
20.	AT73218	[1]	Barrier	RIGHT FENDER REAR
21.	T75337	[1]	Molding	RIGHT CONSOLE
