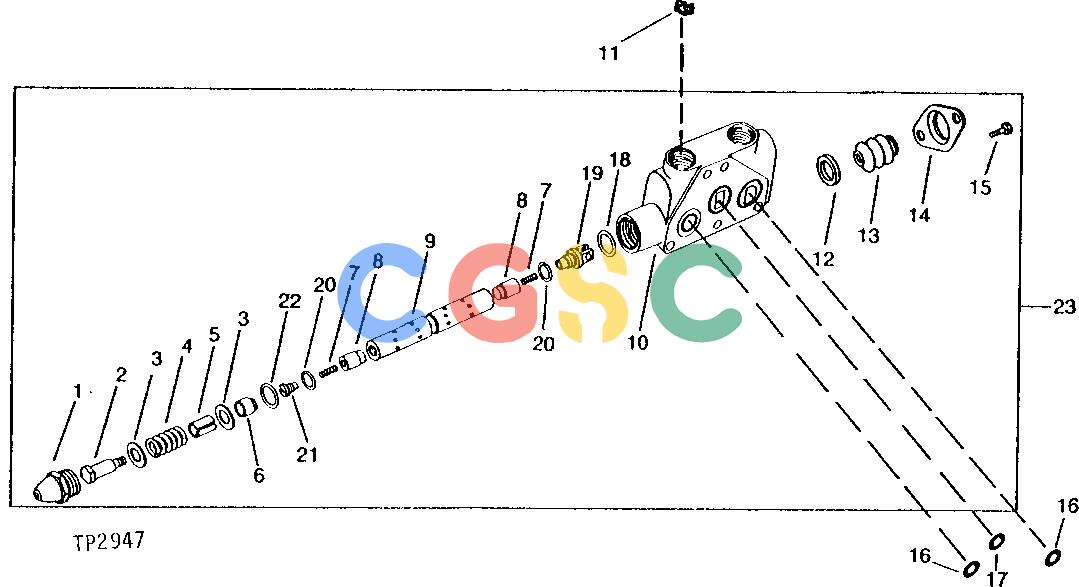

约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE STABILIZER VALVE [02H09]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
424 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AU41892
|
[1] |
Cap
|
|
| 2. |
U11428
|
[1] |
Bolt
|
|
| 3. |
N31767
|
[2] |
Washer
|
|
| 4. |
U11336
|
[1] |
Spring
|
|
| 5. |
U41167
|
[1] |
Bushing
|
|
| 6. |
U41169
|
[1] |
Bushing
|
|
| 7. |
U41170
|
[2] |
Spring
|
|
| 8. |
U41168
|
[2] |
Check Valve
|
|
| 9. |
........
|
[1] |
Spool
|
|
| 10. |
........
|
[2] |
Housing
|
|
| 11. |
U11426
|
[1] |
Orifice
|
|
| 12. |
U42835
|
[1] |
Washer
|
|
| 13. |
U42834
|
[1] |
Boot
|
|
| 14. |
U42827
|
[1] |
Retainer
|
|
| 15. |
21H1206
|
[2] |
Screw
|
|
| 16. |
U11326
|
[2] |
O-Ring
|
|
| 17. |
U15415
|
[1] |
O-Ring
|
|
| 18. |
T57246
|
[1] |
O-Ring
|
|
| 19. |
U42833
|
[1] |
Clevis
|
|
| 20. |
P46051
|
[2] |
O-Ring
|
|
| 21. |
U41162
|
[1] |
Plug
|
|
| 22. |
T13119
|
[1] |
O-Ring
|
|
| 23. |
AU41882
|
[2] |
Valve
|
|
| 23. |
AT62848
|
[2] |
Spool Valve
|
|
| ... |
AU42191
|
[1] |
Kit
|
|
