约翰迪尔零件查询410 - BACKHOE, LOADER STANDARD BUCKETS (WITH STRAIGHT PIVOT PLATES) [02I16]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 189 次

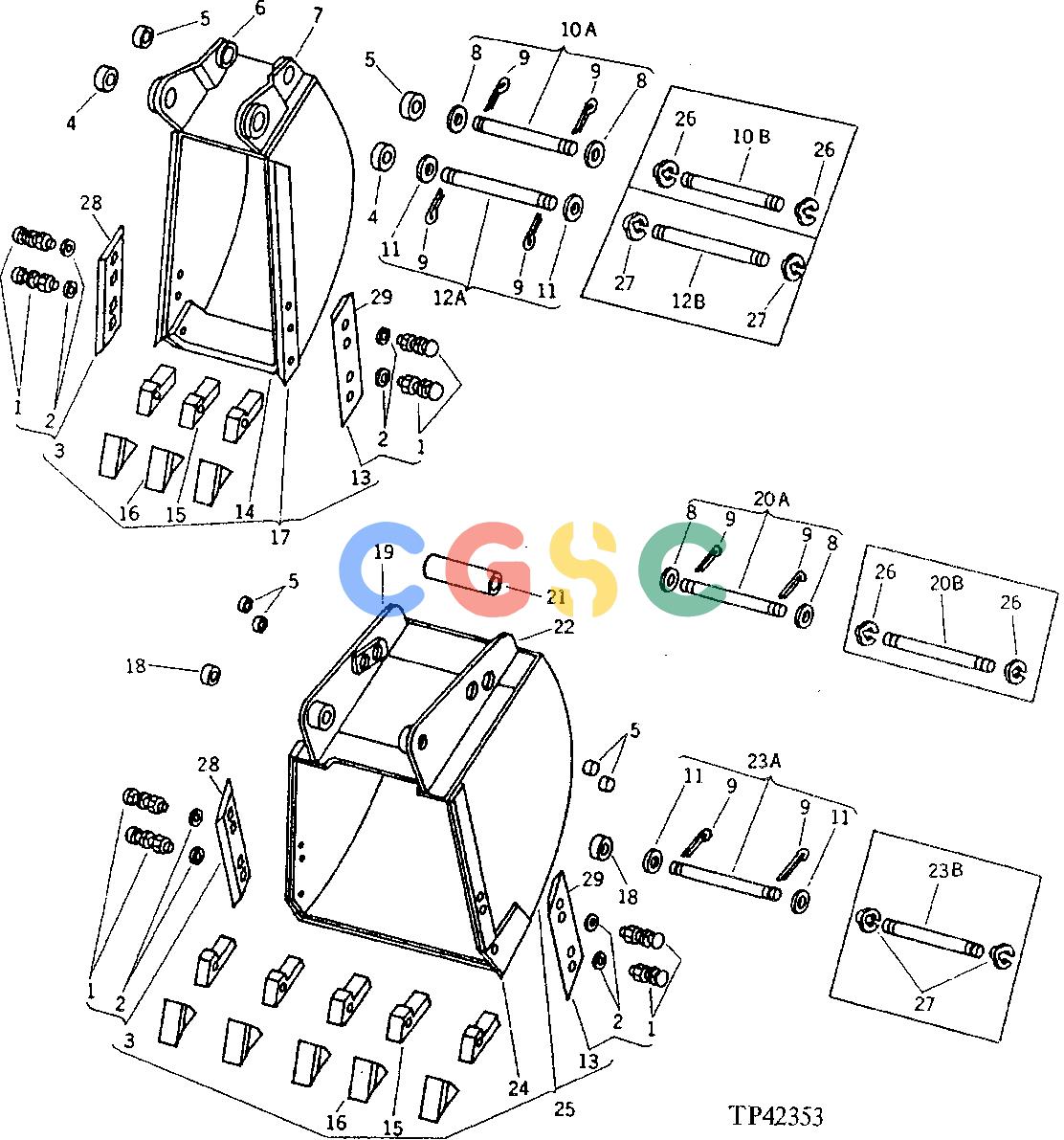

Pos.	Part No	Qty	Parts name	Comments
1.	03H1439	[6]	Bolt	1/2" X 1-3/4", HS, SAE 8
1.	12H301	[6]	Lock Washer	1/2"
1.	14H826	[6]	Nut	1/2"
2.	24H1162	[6]	Washer	17/32" X 1-1/4" X 0.060"
3.	........	[1]	Cutting Edge	L.H. ( AU12225 NO LONGER AVAILABLE)
4.	U10481	[2]	Bushing	USE WITH 305 MM (12") AND 406 MM (16") BUCKET
5.	U11121	[2]	Bushing
6.	AU13425	[1]	Plate	L.H. USE WITH 305 MM (12") AND 406 MM (16") BUCKET
7.	AU13424	[1]	Plate	R.H. USE WITH 305 MM (12") AND 406 MM (16") BUCKET
8.	U11649	[4]	Washer
8.	U11649	[4]	Washer
9.	11H221	[8]	Cotter Pin	3/8" X 2-1/2"
9.	11H221	[8]	Cotter Pin	3/8" X 2-1/2"
10A.	AU13550	[1]	Pin Fastener	USE WITH 305 MM (12") AND 406 MM (16") BUCKET
10A.	AU13550	[1]	Pin Fastener	USE WITH 305 MM (12") AND 406 MM (16") BUCKET
10B.	T59454	[1]	Pin Fastener	(SUB AU13550)
11.	U11650	[4]	Washer
11.	U11650	[4]	Washer
12A.	AU13551	[1]	Pin Fastener	USE WITH 305 MM (12") AND 406 MM (16") BUCKET
12A.	AU13551	[1]	Pin Fastener	USE WITH 305 MM (12") AND 406 MM (16") BUCKET
12B.	T59455	[1]	Pin Fastener	(SUB AU13551)
13.	........	[1]	Cutting Edge	R.H. ( AU12224 NO LONGER AVAILABLE)
14.	U15995	[1]	Cutting Edge	FRONT, FOR 305 MM (12") BUCKET
14.	U16079	[1]	Cutting Edge	FRONT, FOR 406 MM (16") BUCKET
15.	U14436	[1]	Shank
16.	U14437	[1]	Point
17.	........	[1]	Backhoe Bucket	AT83702 NO LONGER AVAILABLE, (MARKED AT83704) (SUB FOR BU10614) 305 MM (12") COMPLETE WITH BUSHINGS
17.	BU10618	[1]	Backhoe Bucket	406 MM (16") COMPLETE WITH BUSHINGS
18.	U16017	[2]	Bushing	USE WITH 914 MM (36") BUCKET
19.	AU13415	[1]	Plate	L.H., USE WITH 914 MM (36") BUCKET
20A.	AU42334	[1]	Pin Fastener	(SUB (2) U11649, (2) 11H221 AND T125931) USE WITH 914 MM (36") BUCKET
20A.	AU42334	[1]	Pin Fastener	(SUB (2) U11649, (2) 11H221 AND T125931) USE WITH 914 MM (36") BUCKET
20A.	T125931	[1]	Pin Fastener	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
20B.	T59451	[1]	Pin Fastener	(SUB (2) U11649, (2) 11H221 AND T125931)
21.	28H2240	[1]	Bushing	1-1/2" X 7.000"
22.	AU13414	[1]	Plate	USE WITH 914 MM (36") BUCKET
23A.	AU42333	[1]	Pin Fastener	(SUB (2) U11650, (2) 11H221 AND T125926) USE WITH 914 MM (36") BUCKET
23A.	AU42333	[1]	Pin Fastener	(SUB (2) U11650, (2) 11H221 AND T125926) USE WITH 914 MM (36") BUCKET
23A.	T125926	[1]	Pin Fastener	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
23B.	T59450	[1]	Pin Fastener	(SUB (2) U11650, (2) 11H221 AND T125926)
24.	U13957	[1]	DURA-MAX TM CUTTING EDGE	USE WITH 914 MM (36") BUCKET
25.	........	[1]	Backhoe Bucket	914 MM (36") COMPLETE WITH BUSHINGS
26.	T59452	[4]	Snap Ring
27.	T59445	[4]	Snap Ring
28.	U13953	[1]	Cutting Edge	L.H.
29.	U13952	[1]	Cutting Edge	R.H.
