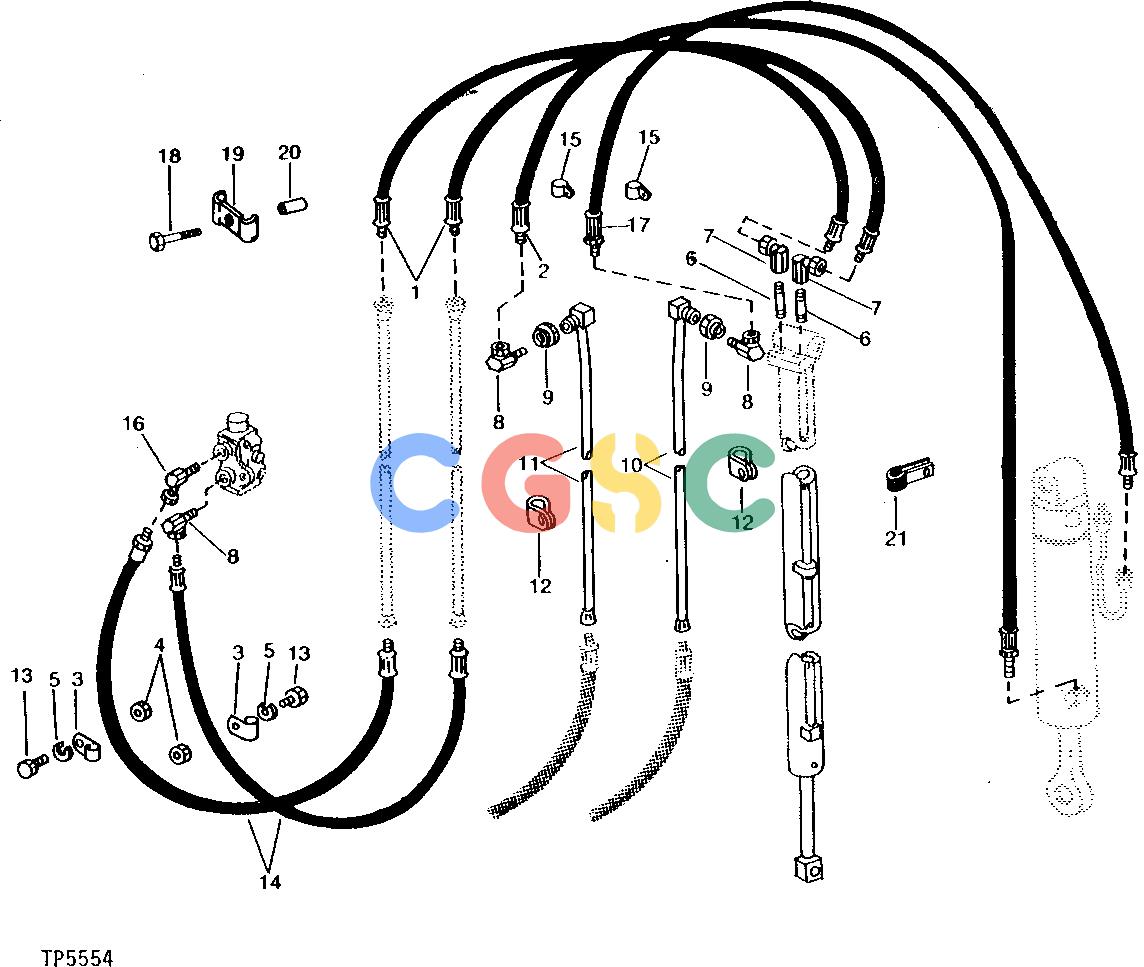

约翰迪尔零件查询410 - BACKHOE, LOADER EXTENDIBLE DIPPERSTICK HYDRAULICS [02J18]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 746 次

Pos.	Part No	Qty	Parts name	Comments
1.	AU13295	[2]	Hydraulic Hose - Fabricate	1 143 MM LONG (1/2" X 45")
2.	AT54470	[1]	Hydraulic Hose - Fabricate	2 880 MM LONG (1/2" X 115") (SUB FOR AT34201, THIS APPLICATION)
3.	T26955	[2]	Clamp	(SUB FOR T51856)
4.	14H812	[2]	Nut	3/8"
5.	12H304	[2]	Lock Washer	3/8"
6.	29H594	[2]	Threaded Nipple	1/2", (SUB FOR T55467)
7.	AT50201	[2]	Elbow Fitting
8.	JD172	[3]	Tee Fitting
9.	14H873	[2]	Nut	1-1/4"
10.	AU12425	[1]	Tube	R.H.
11.	AU12424	[1]	Oil Line	L.H.
12.	R46414	[2]	Clamp	(SUB FOR T51884) (SUB FOR AH78125, THIS APPLICATION)
13.	19H2676	[2]	Cap Screw	3/8" X 1"
14.	AU40250	[2]	Hydraulic Hose - Fabricate	1 727 MM LONG (5/8" X 68")
15.	T26955	[2]	Clamp
16.	JD184	[1]	Elbow Fitting
17.	AT54470	[1]	Hydraulic Hose - Fabricate	2 880 MM LONG (1/2" X 115") (SUB FOR AT34201, THIS APPLICATION) (SUB FOR AT34201)
17.	AT63293	[1]	Hydraulic Hose - Fabricate	3 429 MM LONG (1/2" X 135")
18.	19H1648	[1]	Cap Screw	3/8" X 3/4"
19.	U46753	[1]	Hose Clamp
20.	28H860	[1]	Washer	3/8" X 3/8"
21.	T43361	[1]	Clip
