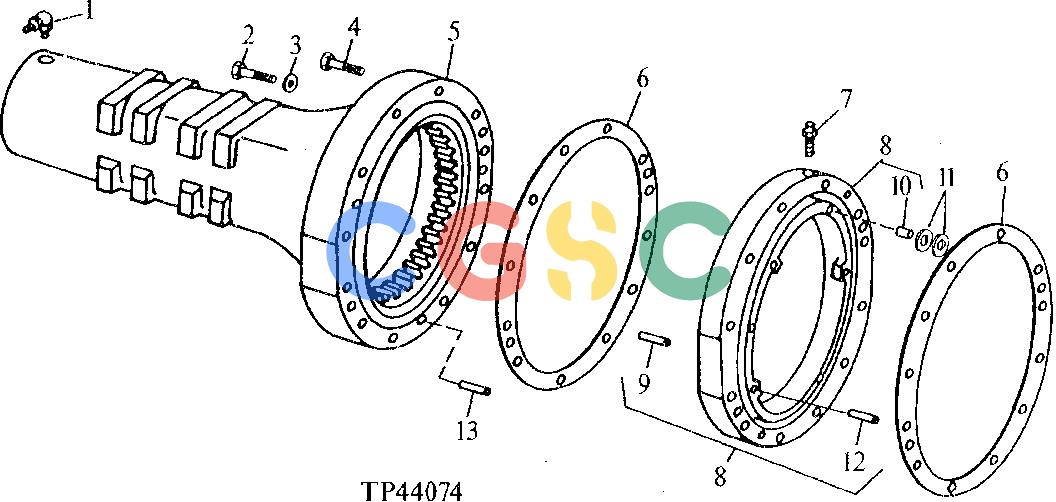

约翰迪尔零件查询410B - BACKHOE, LOADER REAR AXLE HOUSING (SERIAL NO. 704002- ) [01B07]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
793 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
JD7781
|
[1] |
Lubrication Fitting
|
|
| 2. |
R31631
|
[1] |
Drain Plug
|
|
| 3. |
R26287
|
[1] |
O-Ring
|
|
| 4. |
T125874
|
[12] |
Cap Screw
|
|
| 5. |
AT168435
|
[1] |
Housing
|
|
| 6. |
R98915
|
[2] |
Gasket
|
|
| 7. |
R21612
|
[1] |
Bleed Valve
|
|
| 8. |
AT63498
|
[1] |
Housing
|
|
| 8. |
AT63498
|
[1] |
Housing
|
|
| 8. |
AT150682
|
[1] |
Housing
|
|
| 9. |
R26650
|
[3] |
Dowel Pin
|
|
| 10. |
T81219
|
[3] |
Spring Pin
|
|
| 11. |
M4T
|
[AR] |
Shim
|
|
| 11. |
M6T
|
[AR] |
Shim
|
|
| 12. |
T66915
|
[2] |
Dowel Pin
|
|
| 13. |
R26198
|
[3] |
Dowel Pin
|
|
