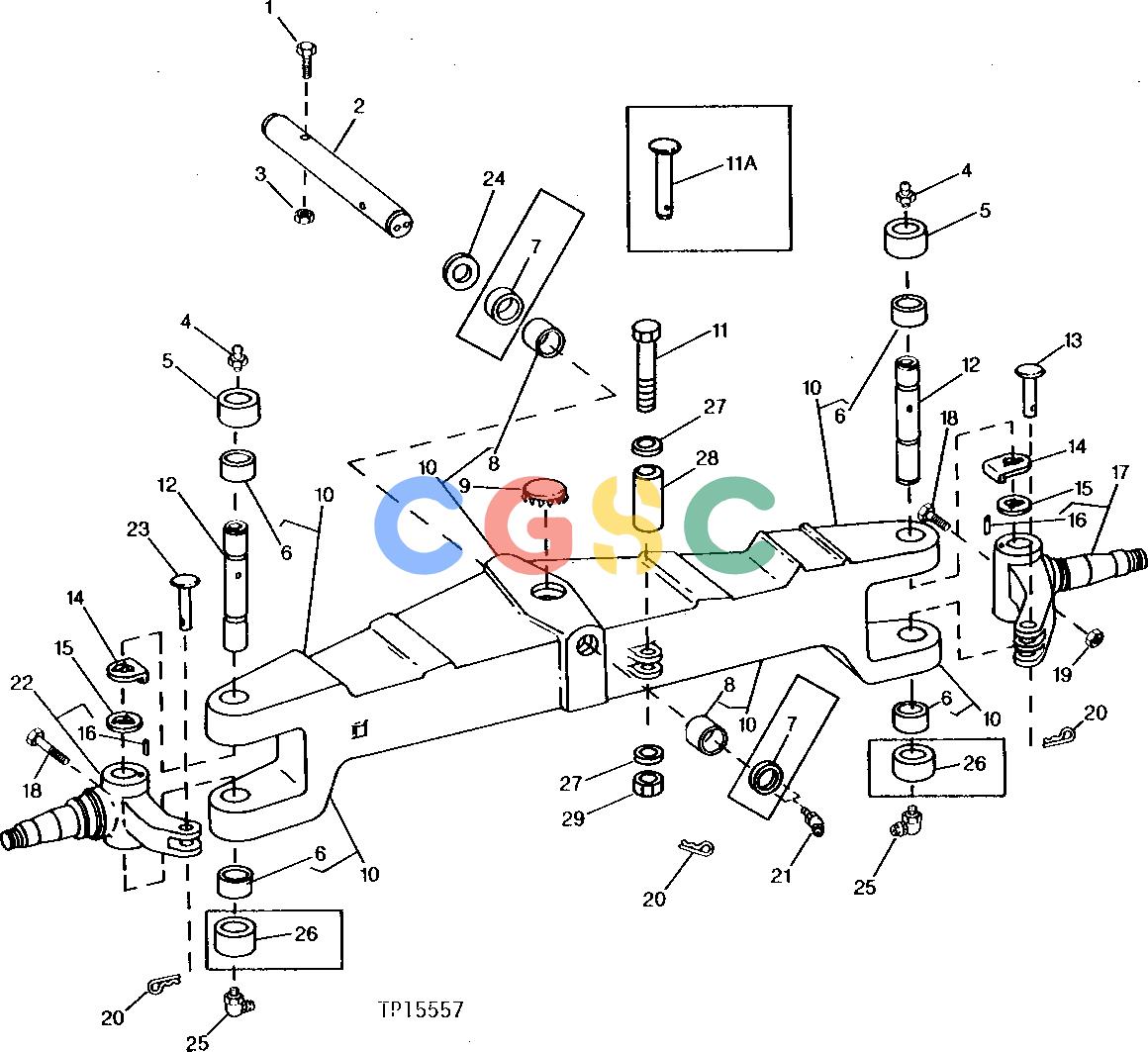

Pos.	Part No	Qty	Parts name	Comments
1.	19M7949	[1]	Cap Screw	M12 X 100
2.	T75383	[1]	Pin Fastener
3.	14M7319	[1]	Lock Nut	M12
4.	T162396	[2]	Lubrication Fitting	1/8", (SUB FOR JD7759 OR JD7798)
5.	T69027	[2]	Seal
6.	T140207	[4]	Bushing	(SUB FOR T23170, THIS APPLICATION)
7.	........	[2]	Seal	( T67592 IS NO LONGER AVAILABLE OR REQUIRED)
8.	T140211	[2]	Bushing	(SUB FOR T69352)
9.	L2083C	[1]	Plug	(SUB FOR R1680R)
10.	AT166010	[1]	Front Axle	(MARKED T149772) (SUB FOR AT66368) (MARKED T69351) (SUB FOR AT106559) (MARKED T106099)
11A.	T69356	[1]	Pin
11B.	T100810	[1]	Cap Screw	(SUB 19M6575, 14M7184 AND 11M7086)
11B.	19M6575	[1]	Cap Screw	M12 X 110
12.	T184816	[2]	Kingpin	(SUB FOR AT86426 AND T69365) (ALSO ORDER (4) T162396)
13.	T69355	[1]	Pin
14.	T69364	[2]	Thrust Washer
15.	T69363	[2]	Thrust Washer
16.	34M7117	[2]	Spring Pin	5 X 10 MM
17.	AT182387	[1]	Knuckle	R.H. (MARKED T82851) (SUB FOR AT66370) (MARKED T82851)
18.	19H3445	[2]	Cap Screw	3/8" X 3-3/4"
19.	T11234	[2]	Lock Nut	3/8"
20.	11M7028	[3]	Cotter Pin	5 X 32 MM
20.	11M7028	[2]	Cotter Pin	5 X 32 MM
20.	11M7083	[1]	Cotter Pin	3.200 X 50 MM, (USE WITH T100810)
20.	11H229	[1]	Cotter Pin	3/32" X 2", (USE WITH 19M6575)
21.	JD7763	[2]	Lubrication Fitting	45°, 1/8"
22.	AT182388	[1]	Knuckle	L.H. (MARKED T82852) (SUB FOR AT66370) (MARKED T82852)
23.	T69354	[1]	Pin
24.	R46973	[AR]	Thrust Washer
25.	T162396	[2]	Lubrication Fitting	(SUB FOR JD7799, THIS APPLICATION)
26.	T69027	[2]	Seal
27.	R42408	[2]	Washer
28.	T100813	[1]	Bushing
29.	14H909	[1]	Nut	1/2", (USE WITH T100810)
29.	14M7184	[1]	Nut	M12, (USE WITH 19M6575)
