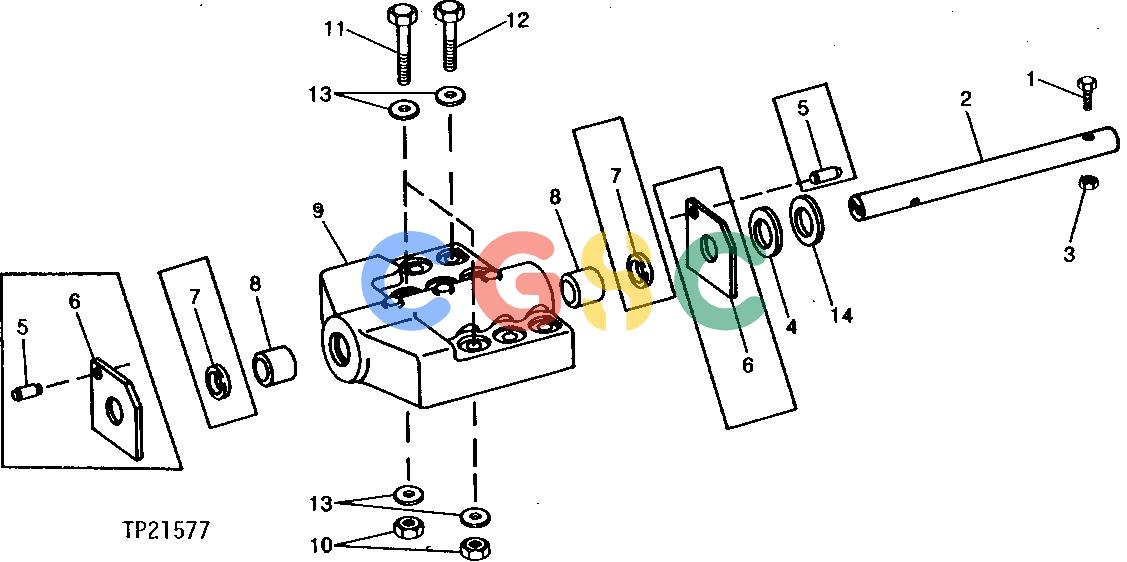

约翰迪尔零件查询410B - BACKHOE, LOADER AXLE SUPPORT (MECHANICAL FRONT WHEEL DRIVE) [01C01]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
184 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7949
|
[1] |
Cap Screw
|
|
| 2. |
T75383
|
[1] |
Pin Fastener
|
|
| 3. |
14M7319
|
[1] |
Lock Nut
|
|
| 4. |
R46973
|
[AR] |
Thrust Washer
|
|
| 5. |
R48685
|
[2] |
Dowel Pin
|
|
| 6. |
T76754
|
[2] |
Plate
|
|
| 7. |
........
|
[2] |
Seal
|
|
| 8. |
T140211
|
[2] |
Bushing
|
|
| 9. |
T76753
|
[1] |
Pivot
|
|
| 10. |
14M7315
|
[2] |
Nut
|
|
| 11. |
19M8157
|
[2] |
Cap Screw
|
|
| 12. |
19M8005
|
[6] |
Cap Screw
|
|
| 13. |
N231749
|
[10] |
Washer
|
|
| 14. |
T80027
|
[2] |
Thrust Washer
|
|
