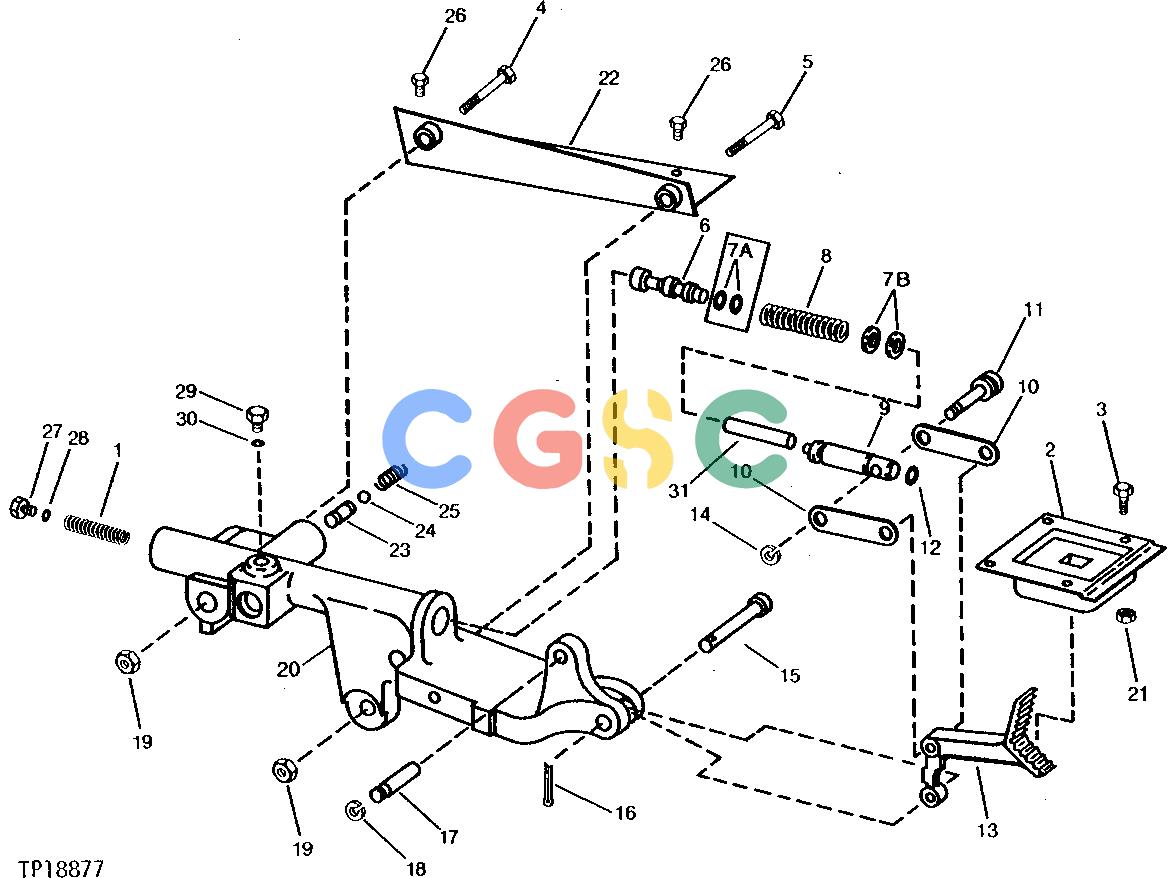

约翰迪尔零件查询410B - BACKHOE, LOADER DIFFERENTIAL LOCK CONTROL VALVE (MECHANICAL FRONT WHEEL DRIVE) [01C07]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 660 次

Pos.	Part No	Qty	Parts name	Comments
1.	R74418	[1]	Spring
2.	AT75860	[1]	Boot
3.	19M7862	[4]	Screw	M6 X 20
4.	19M7501	[1]	Cap Screw	M16 X 110
5.	19M7344	[1]	Cap Screw	M16 X 65
6.	R82134	[1]	Valve	(SUB FOR R79134) (WHEN SUBBED FOR R79134, ALSO ORDER R82133) (USE WITH R79133)
6.	R85362	[1]	Valve	(USE WITH R86162)
7A.	R82133	[AR]	Shim	0.51 MM (.020") (SUB FOR R46901) (USE WITH R68648)
7B.	R82133	[1]	Shim	0.51 MM (.020") (USE WITH R86162)
7B.	B1664R	[AR]	Shim	0.76 MM (.030") (USE WITH R86162)
8.	B2597R	[1]	Spring
9.	R86162	[1]	Plunger	(SUB FOR R68648) (ALSO ORDER R63249)
10.	R79135	[2]	Strap
11.	R26385	[2]	Pin Fastener
12.	F3353R	[1]	O-Ring
13.	R79136	[1]	Pedal
14.	R26386	[2]	Snap Ring
15.	R46866	[1]	Pin Fastener
16.	11M7059	[1]	Cotter Pin	3.200 X 20 MM
17.	R26650	[1]	Dowel Pin
18.	F3396R	[1]	Snap Ring
19.	14M7276	[2]	Nut	M16
20.	R86770	[1]	Housing	(SUB FOR R79133)
21.	14M7303	[4]	Flange Nut	M6
22.	AT118788	[1]	Support	(SUB FOR AT75072)
23.	R33058	[1]	Needle Roller
24.	400R	[1]	Ball
25.	R26373	[1]	Spring
26.	19H2993	[2]	Cap Screw	1/2" X 1-1/2"
27.	R27218	[1]	Fitting Plug
28.	R26448	[1]	O-Ring
29.	R31631	[1]	Drain Plug	(SUB FOR R72834)
30.	R26287	[1]	O-Ring
31.	R63249	[1]	Needle Roller	(SUB FOR R77904) (ALSO ORDER R86162)
