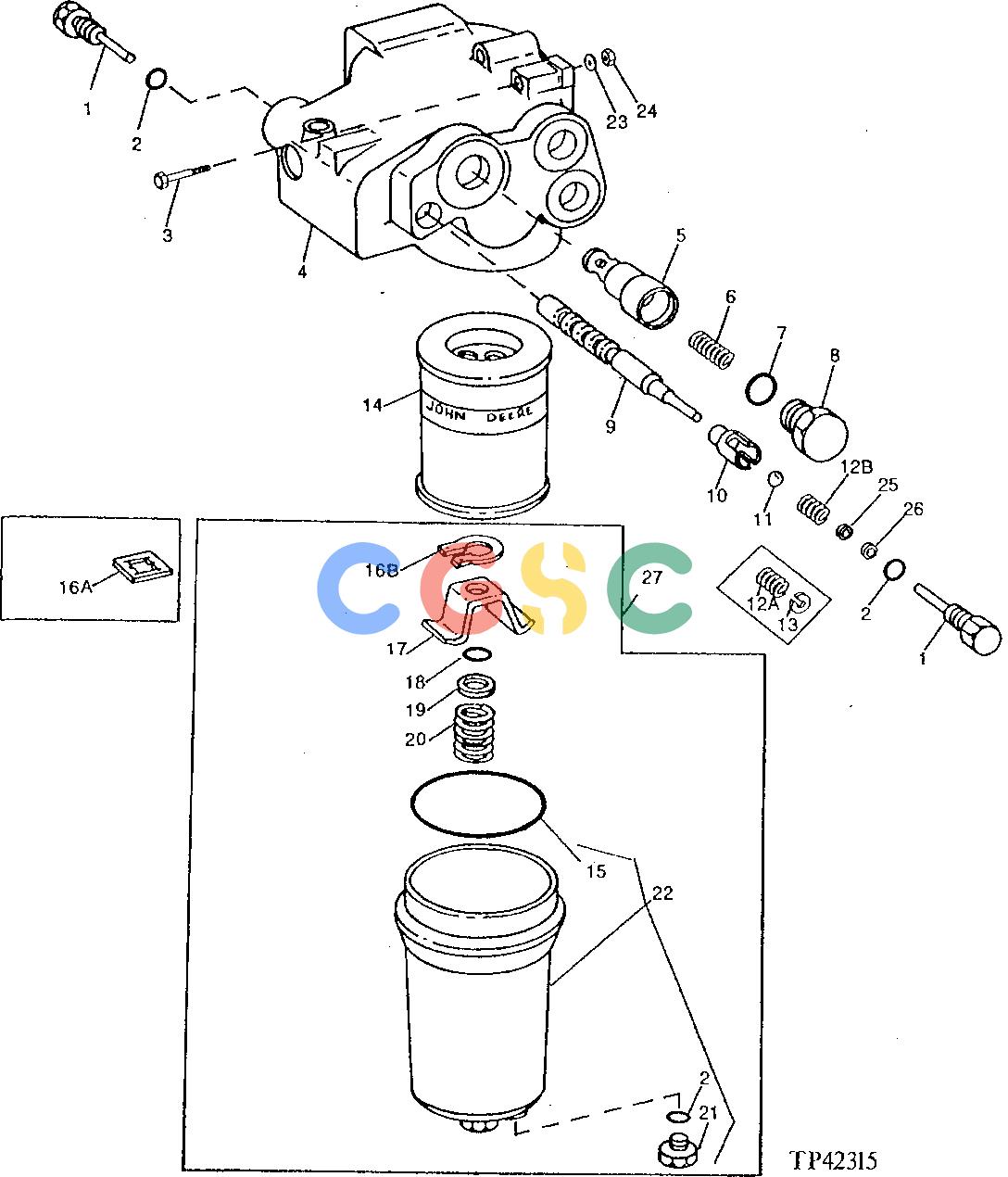

约翰迪尔零件查询410B - BACKHOE, LOADER HYDRAULIC OIL FILTER [02H17]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 821 次

Pos.	Part No	Qty	Parts name	Comments
1.	T69998	[2]	Fitting
2.	R26448	[3]	O-Ring
3.	19M2993	[2]	Cap Screw	M12 X 100
4.	T77074	[1]	Housing
5.	T118603	[1]	Poppet	(SUB FOR T68713)
6.	R49352	[1]	Spring
7.	U13639	[1]	O-Ring
8.	R39741	[1]	Drain Plug
9.	T68714	[1]	Poppet
10.	T77062	[1]	Valve Seat
11.	R26552	[1]	Ball
12A.	B2651R	[1]	Spring	(SUB T78175, (6) R33521 AND (5) R39730, THIS APPLICATION)
12B.	T78175	[1]	Compression Spring
13.	M63316	[AR]	Shim
14.	AR94510	[1]	Filter Element
15.	E52687	[1]	O-Ring	(SUB FOR T12275, THIS APPLICATION)
16A.	U44618	[1]	Push Nut	(USE WITH T80617)
16B.	N33504	[1]	Snap Ring	(USE WITH T113519)
17.	R65892	[1]	Retainer
18.	F2741R	[1]	Packing
19.	24H1341	[1]	Washer	17/32" X 15/16" X 0.060"
20.	R56346	[1]	Spring
21.	R27218	[1]	Fitting Plug
22.	AT118708	[1]	Housing	(SUB FOR T80617, T71088 AND AT118515) (MARKED T113519) (ALSO ORDER N33504)
23.	T35860	[2]	Washer
24.	14M7275	[2]	Nut	M12
25.	R33521	[6]	Shim	0.75 MM (.030")
26.	R39730	[5]	Shim	0.13 MM (.005")
27.	AT118709	[1]	Housing	(SUB FOR AT81153)
