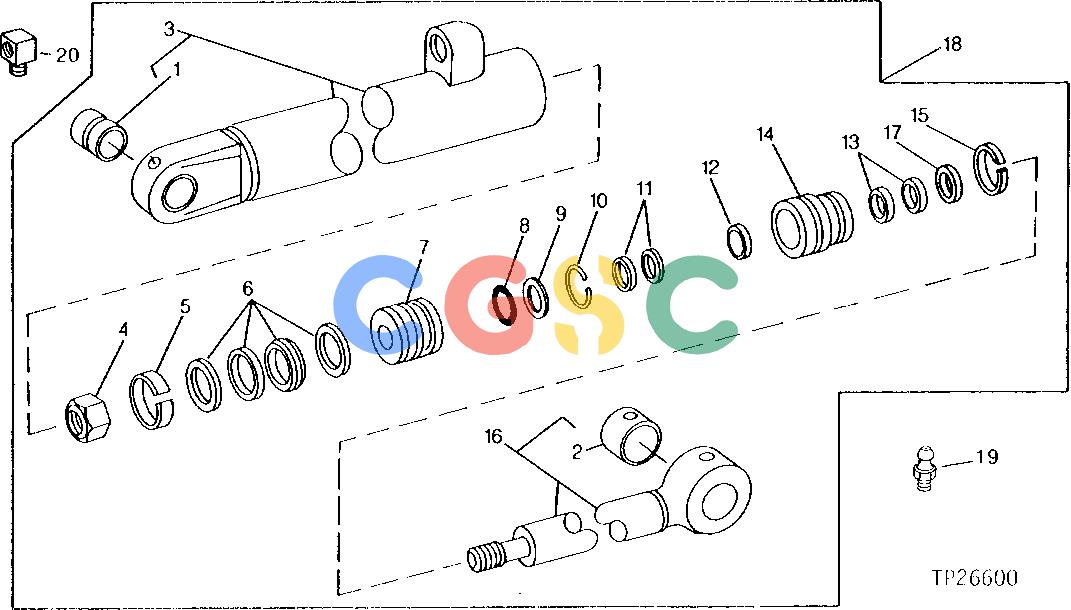

约翰迪尔零件查询410C - BACKHOE, LOADER POWER STEERING CYLINDER (WITHOUT MECHANICAL FRONT WHEEL DRIVE) (SERIAL NO. 746967-XXXXXX) [02G13]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
186 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R81854
|
[1] |
Bushing
|
|
| 2. |
R72700
|
[1] |
Bushing
|
|
| 3. |
RE22413
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 4. |
R82570
|
[1] |
Lock Nut
|
|
| 5. |
R82569
|
[1] |
Wear Ring
|
|
| 6. |
RE21848
|
[1] |
Seal
|
|
| 7. |
R82568
|
[1] |
Piston
|
|
| 8. |
R94418
|
[1] |
O-Ring
|
|
| 9. |
R79117
|
[1] |
Back-Up Ring
|
|
| 10. |
R82571
|
[1] |
Snap Ring
|
|
| 11. |
RE21846
|
[1] |
Seal
|
|
| 12. |
R82566
|
[1] |
Seal
|
|
| 13. |
RE24532
|
[1] |
Seal
|
|
| 14. |
........
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 15. |
R90565
|
[1] |
Snap Ring
|
|
| 16. |
RE22415
|
[1] |
Hydraulic Cylinder Rod
|
|
| 17. |
H169509
|
[AR] |
Back-Up Ring
|
|
| 18. |
RE33800
|
[1] |
Hydraulic Cylinder
|
|
| 19. |
T162396
|
[1] |
Lubrication Fitting
|
|
| 20. |
JD7838
|
[1] |
Adapter Fitting
|
|
