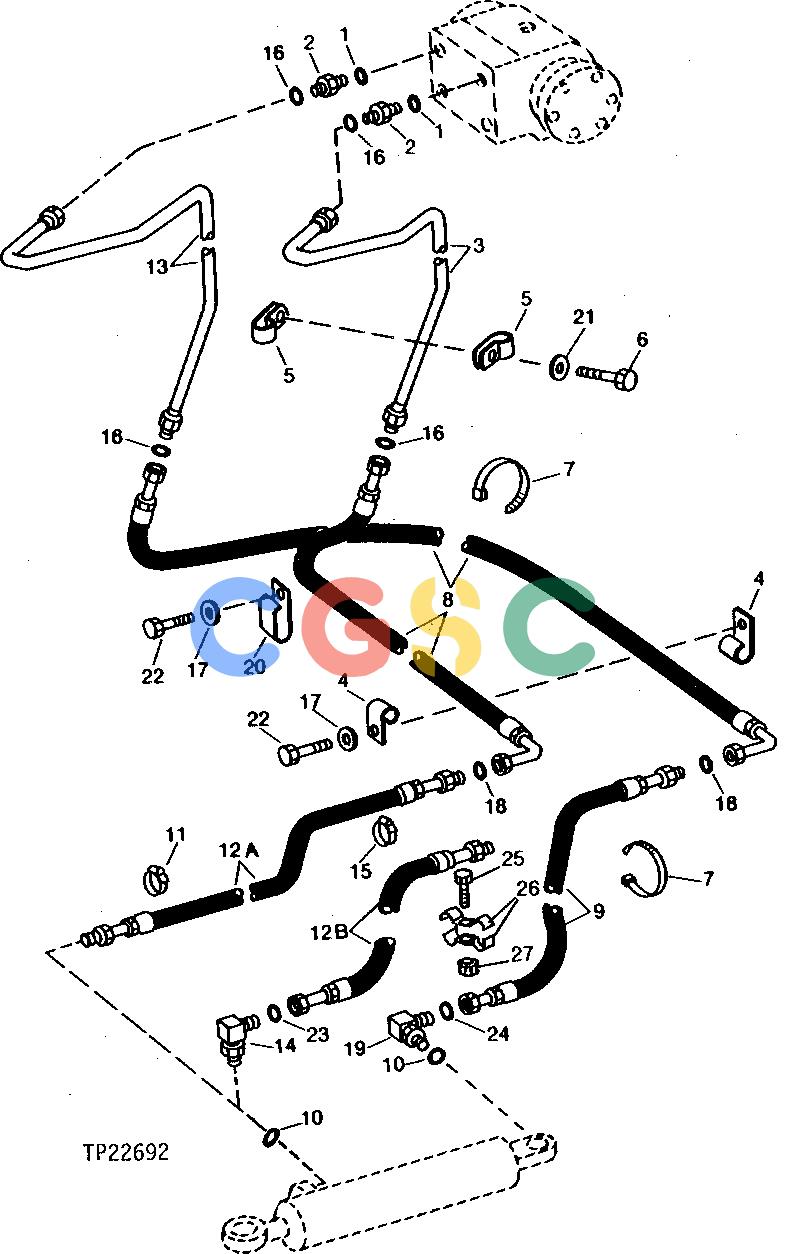

约翰迪尔零件查询410C - BACKHOE, LOADER STEERING VALVE TO STEERING CYLINDER OIL LINES [02H01]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 744 次

Pos.	Part No	Qty	Parts name	Comments
1.	R26375	[2]	O-Ring
2.	38H1171	[2]	Adapter Fitting
3.	AT101302	[1]	Oil Line
4.	R46414	[6]	Clamp
4.	R46414	[4]	Clamp
5.	T13814	[4]	Clamp
6.	19H1648	[2]	Cap Screw	3/8" X 3/4"
7.	R44302	[1]	Tie Band
8.	AT101299	[2]	Hydraulic Hose - Fabricate	11/16" X 1 630 MM (64-1/4") X 9/16"
8.	AT83433	[2]	Hydraulic Hose - Fabricate	11/16" X 1 495 MM (58-3/4") X 9/16"
9.	........	[1]	Hydraulic Hose	( AT101270 NO LONGER AVAILABLE) (SUB AT114475, R26448, T77613 AND 38H1004)
9.	AT114475	[1]	Hydraulic Hose - Fabricate	11/16" X 500 MM (19-3/4") X 9/16" (WITHOUT MFWD)
9.	AT114475	[1]	Hydraulic Hose - Fabricate	11/16" X 500 MM (19-3/4") X 9/16" (WITH MFWD)
9.	AT114500	[1]	Hydraulic Hose - Fabricate	11/16" X 725 MM (28-1/2") X 9/16", (WITH MFWD) (LEFT END)
10.	R26448	[2]	O-Ring
11.	AR21999	[1]	Hose Clamp	(USE WITH MFWD)
12A.	AT101269	[1]	Hydraulic Hose - Fabricate	9/16" X 775 MM (30-1/2") X 9/16", (USE WITHOUT MFWD)
12B.	AT101320	[1]	Hydraulic Hose	9/16" X 795 MM (31-1/4") X 9/16", (USE WITH MFWD) (SUB AT114476, R26448, T77613 AND 38H1004)
12B.	AT114476	[1]	Hydraulic Hose - Fabricate	11/16" X 820 MM (32-1/4") X 9/16", (USE WITH MFWD)
12B.	AT114501	[1]	Hydraulic Hose - Fabricate	11/16" X 1 175 MM (46-1/4") X 9/16", (WITH MFWD) (RIGHT END)
13.	AT101303	[1]	Oil Line
14.	38H1009	[1]	Elbow Fitting	90° (USE WITH MFWD)
14.	38H1004	[1]	Elbow Fitting	(USE WITH MFWD)
15.	RE65978	[1]	Clamp	(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT18904 OR RE62322)
16.	T77613	[4]	O-Ring
17.	24H1308	[3]	Washer	13/32" X 1" X 0.134"
18.	T77814	[2]	O-Ring
19.	38H1009	[1]	Elbow Fitting
19.	38H1004	[1]	Elbow Fitting
20.	R49921	[1]	Clamp	(SUB FOR R50454, THIS APPLICATION)
21.	24H1304	[2]	Washer	13/32" X 23/32" X 0.120"
22.	19H2676	[3]	Cap Screw	3/8" X 1"
22.	19H2284	[2]	Cap Screw	3/8" X 7/8"
22.	19H1134	[1]	Cap Screw	3/8" X 3/4", (USE WITH R49921)
23.	T77814	[2]	O-Ring	(WITH MFWD)
23.	T77613	[2]	O-Ring	(WITH MFWD)
24.	T77814	[1]	O-Ring
24.	T77613	[1]	O-Ring
25.	19H2664	[1]	Cap Screw	5/16" X 3/4", (WITH MFWD)
26.	R27491	[2]	Clamp	(WITH MFWD)
27.	14H785	[1]	Nut	5/16", (WITH MFWD)
