约翰迪尔零件查询410C - BACKHOE, LOADER BRAKE VALVE TO TRANSMISSION AND AXLE OIL LINES [02H16]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 309 次

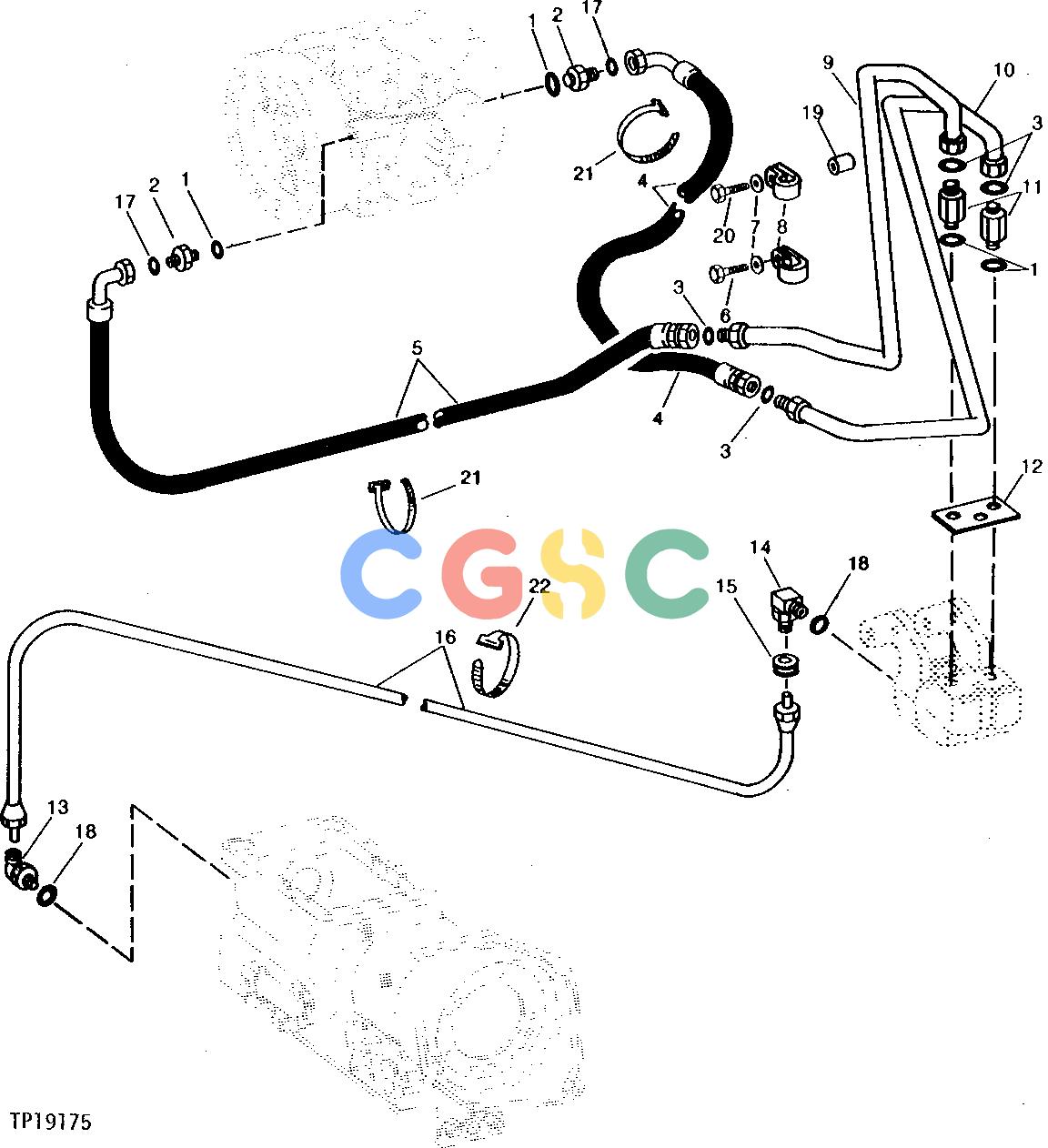

Pos.	Part No	Qty	Parts name	Comments
1.	R26286	[2]	O-Ring
2.	38H1167	[2]	Adapter Fitting
3.	T77613	[4]	O-Ring
4.	AT83435	[1]	Hydraulic Hose - Fabricate	11/16" X 785 MM (31") X 9/16", LEFT
5.	AT83439	[1]	Hydraulic Hose - Fabricate	11/16" X 613 MM (24-1/4") X 9/16", RIGHT
6.	19H1648	[1]	Cap Screw	3/8" X 3/4"
7.	24H1682	[2]	Washer	13/32" X 7/8" X 0.120"
8.	T29527	[2]	Clamp	(SUB FOR T14264, THIS APPLICATION)
9.	AT83436	[1]	Line	RIGHT
10.	AT83437	[1]	Oil Line	LEFT
11.	T100975	[2]	Adapter Fitting
12.	T68551	[1]	Isolator
13.	RE56322	[1]	Tee Fitting	(SUB FOR AT32333)
14.	AT32336	[1]	Elbow Fitting	(SUB FOR AR36105)
15.	........	[1]	Sealant	(MAKE FROM T70307 BULK MATERIAL, CUT TO LENGTH) (SUB FOR H80305, THIS APPLICATION)
16.	AT114024	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT65971)
17.	T77814	[2]	O-Ring
18.	R26287	[2]	O-Ring
19.	28H2481	[1]	Spacer	3/8" X 1/2"
20.	19H3239	[1]	Cap Screw	3/8" X 1-1/4"
21.	H77698	[AR]	Tie Band	(SUB FOR T44946)
22.	R44302	[AR]	Tie Band	(NO LONGER REQUIRED)
