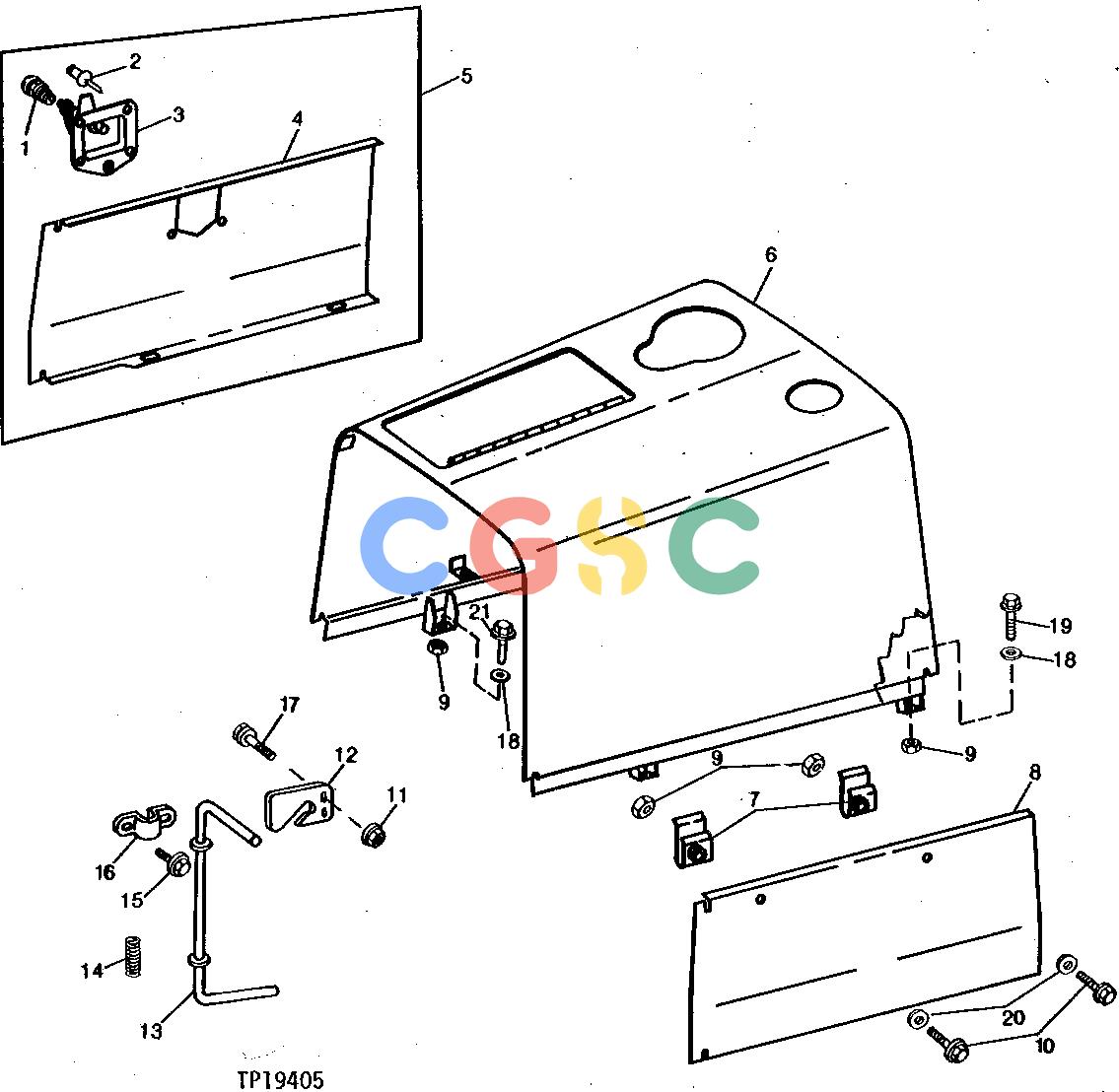

约翰迪尔零件查询410C - BACKHOE, LOADER HOOD AND ENGINE SIDE SHIELDS [03E21]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
922 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT74878
|
[1] |
Lock
|
|
| 2. |
AT44188
|
[4] |
Rivet
|
|
| 3. |
AT74879
|
[1] |
Latch
|
|
| 4. |
T100835
|
[1] |
Shield
|
|
| 5. |
AT101175
|
[1] |
Shield
|
|
| 6. |
........
|
[1] |
Hood
|
|
| 6. |
AT100357
|
[1] |
Hood
|
|
| 7. |
AT100417
|
[2] |
Channel
|
|
| 8. |
T100834
|
[1] |
Shield
|
|
| 9. |
14M7167
|
[6] |
Lock Nut
|
|
| 10. |
19M7658
|
[2] |
Cap Screw
|
|
| 11. |
14M7303
|
[2] |
Flange Nut
|
|
| 12. |
T68133
|
[1] |
Plate
|
|
| 13. |
AT100393
|
[1] |
Rod
|
|
| 14. |
T26072
|
[1] |
Spring
|
|
| 15. |
19M7867
|
[2] |
Screw
|
|
| 16. |
U42544
|
[1] |
Clamp
|
|
| 17. |
19M7560
|
[2] |
Cap Screw
|
|
| 17. |
24M7088
|
[2] |
Washer
|
|
| 18. |
24H1219
|
[4] |
Washer
|
|
| 19. |
19M7658
|
[2] |
Cap Screw
|
|
| 20. |
H110232
|
[2] |
Washer
|
|
| 21. |
19M7658
|
[2] |
Cap Screw
|
|
