约翰迪尔零件查询410C - BACKHOE, LOADER BACK-UP ALARM SYSTEM [03F12]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 584 次

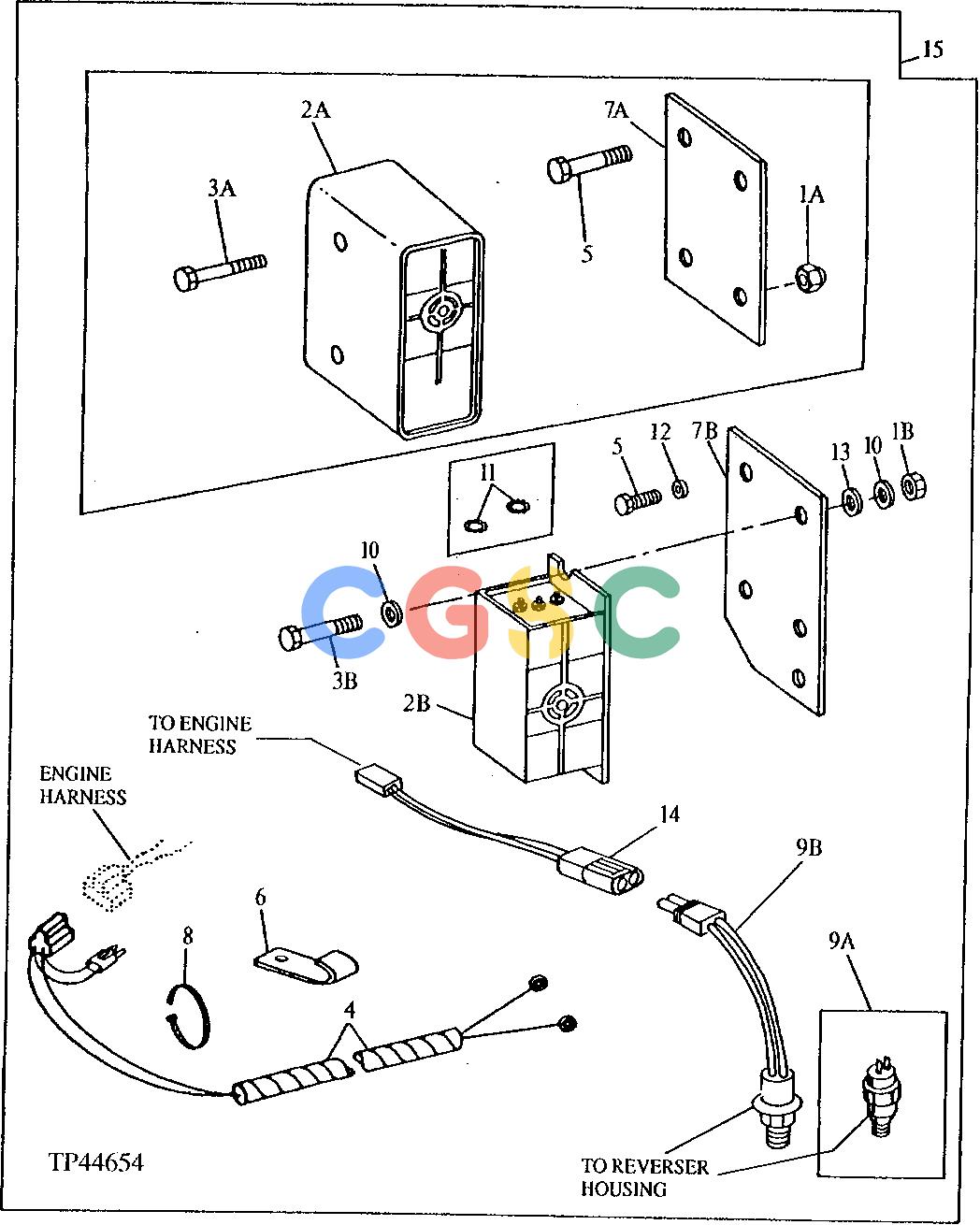

Pos.	Part No	Qty	Parts name	Comments
1A.	14M7298	[2]	Flange Nut	M8
1B.	14M7166	[2]	Lock Nut	M8, (USE WITH T129534)
2A.	AT78534	[1]	Travel Warning Alarm
2B.	AT120461	[1]	Travel Warning Alarm
3A.	19M7970	[2]	Screw	M8 X 100, HS 10.9
3B.	19M7881	[2]	Screw	M8 X 20, (USE WITH T129534)
3B.	37H116	[2]	Screw	(USE ON FRAME WITH MOUNTING STRAPS LOCATED ON RIGHT SIDE REAR OF SIDE FRAME)
4.	AT157012	[1]	Wiring Harness	(SUB FOR AT68613)
5.	19M7783	[2]	Screw	M10 X 16, HS 10.9 (USE IF MAIN FRAME HAS MOUNTING BOSSES ON REAR OF SIDE FRAME)
6.	T19935	[1]	Clamp
7A.	T100738	[1]	Plate	(SUB T129534)
7B.	T129534	[1]	Plate	(AS REQUIRED)
8.	R44302	[1]	Tie Band
9A.	AL67715	[1]	Switch	(SUB FOR AL27809) (SUB AT151507 AND AT167115, THIS APPLICATION) (REVERSE WARNING ALARM)
9B.	AT151507	[1]	Switch
10.	24M7238	[4]	Washer	8.700 X 17 X 2 MM, (USE WITH T129534)
11.	12M7084	[2]	Lock Washer	4.300 MM
12.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM, (USE WITH T129534)
13.	AT100177	[1]	Travel Warning Alarm
14.	AT167115	[1]	Wiring Harness
