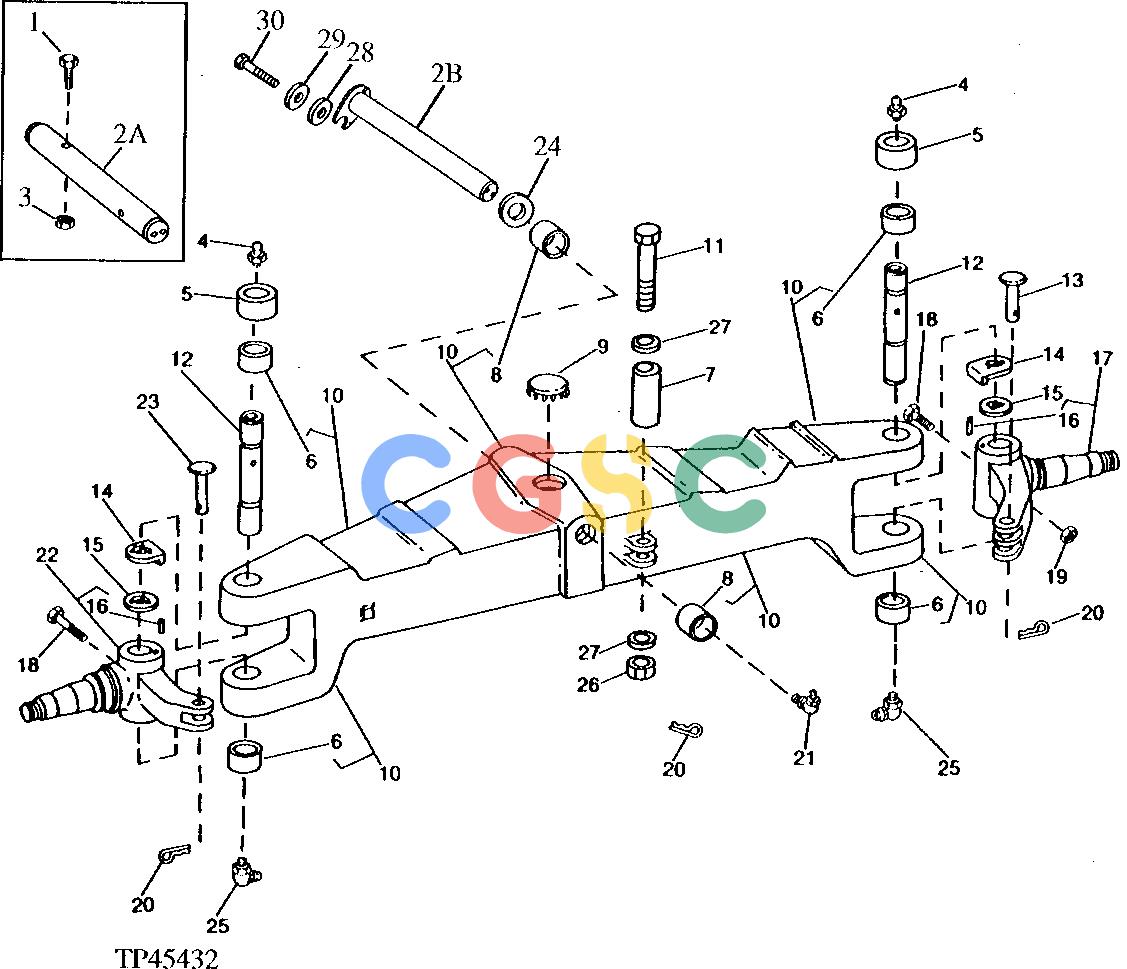

约翰迪尔零件查询410D - BACKHOE, LOADER Front Axle, Spindle And Knuckle Assembly (W/O MFWD)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 304 次

Pos.	Part No	Qty	Parts name	Comments
1.	19M7949	[1]	Cap Screw	M12 X 100
2A.	T75383	[1]	Pin Fastener
2B.	AT164442	[1]	Pin
3.	14M7319	[1]	Lock Nut	M12
4.	T162396	[2]	Lubrication Fitting	1/8" (SUB FOR JD7798)
5.	T69027	[2]	Seal
6.	T140207	[4]	Bushing
7.	T100813	[1]	Bushing
8.	T140211	[2]	Bushing
9.	L2083C	[1]	Plug
10.	AT106559	[1]	Front Axle	(MARKED T106099)
10.	AT166010	[1]	Front Axle	(MARKED T149772)
11.	19M6575	[1]	Cap Screw	M12 X 110
12.	T184816	[2]	Kingpin	(SUB FOR AT86426 AND T69365 ) (ALSO ORDER (4) T162396)
13.	T69355	[1]	Pin
14.	T69364	[2]	Thrust Washer
15.	T69363	[2]	Thrust Washer
16.	34M7117	[2]	Spring Pin	5 X 10 MM
17.	AT182387	[1]	Knuckle	R.H. (MARKED T82851 ) (SUB FOR AT66370 ) (MARKED T82851)
18.	19H3445	[2]	Cap Screw	3/8" X 3-3/4"
19.	T11234	[2]	Lock Nut	9.525 MM (3/8")
20.	11M7030	[2]	Cotter Pin	5 X 40 MM
20.	11M7086	[1]	Cotter Pin	2.500 X 50 MM
21.	JD7838	[2]	Adapter Fitting	1/8"
22.	AT182388	[1]	Knuckle	L.H. (MARKED T82852 ) (SUB FOR AT66371 ) (MARKED T82852)
23.	T69354	[1]	Pin
24.	R46973	[AR]	Thrust Washer
25.	T162396	[2]	Lubrication Fitting	(SUB FOR JD7799, THIS APPLICATION)90°
26.	14M7184	[1]	Nut	M12
27.	24H1162	[2]	Washer	17/32" X 1-1/4" X 0.060"
28.	28H3365	[1]	Washer	0.742" X 1.050" X 5/16"
28.	T18145	[1]	Bushing	16.281 X 25.400 X 13.500 MM (41/64" X 1" X 17/32")
29.	T119912	[1]	Washer	16.660 X 41.148 X 6 MM (21/32" X 1.620" X 0.236")
29.	24H1106	[1]	Washer	11/16" X 1-3/4" X 0.134"
30.	19M8035	[1]	Cap Screw	M16 X 35
30.	19M7488	[1]	Cap Screw	M16 X 40
