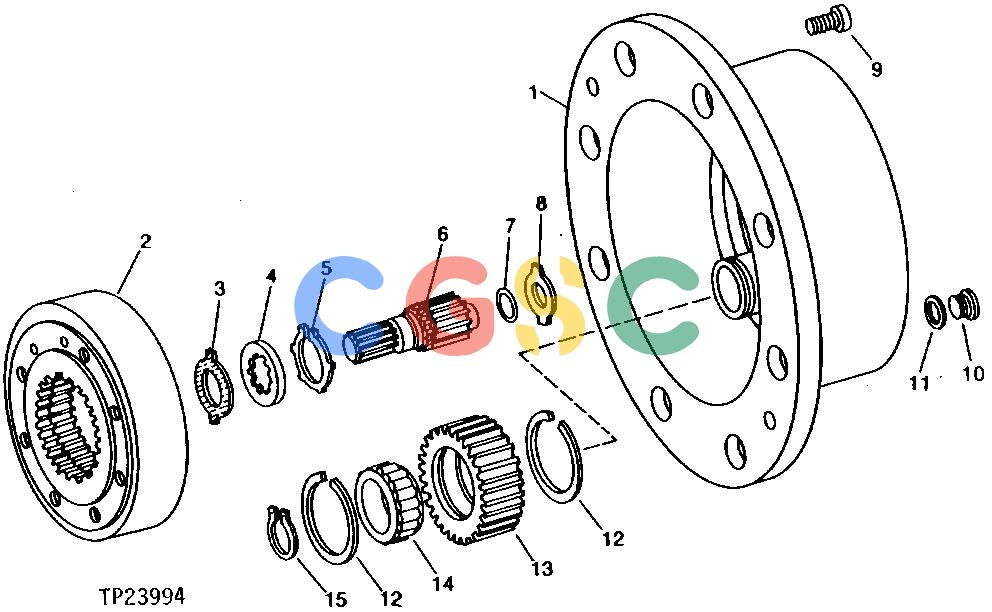

约翰迪尔零件查询410D - BACKHOE, LOADER Planetary Drive (w/ MFWD) ( - 796854)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
828 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T123047
|
[2] |
Planet Pinion Carrier
|
|
| 2. |
T123043
|
[2] |
Ring Gear
|
|
| 3. |
T116795
|
[2] |
Thrust Washer
|
|
| 4. |
T123045
|
[2] |
Thrust Washer
|
|
| 5. |
T123046
|
[2] |
Snap Ring
|
|
| 6. |
T123044
|
[2] |
Shaft
|
|
| 7. |
T123050
|
[2] |
Snap Ring
|
|
| 8. |
T183678
|
[AR] |
Washer
|
|
| 8. |
T183679
|
[AR] |
Washer
|
|
| 8. |
T183680
|
[AR] |
Washer
|
|
| 8. |
T183681
|
[AR] |
Washer
|
|
| 8. |
T183682
|
[AR] |
Washer
|
|
| 8. |
T183683
|
[AR] |
Washer
|
|
| 8. |
T183684
|
[AR] |
Washer
|
|
| 9. |
19M5039
|
[4] |
Screw
|
|
| 10. |
15M7027
|
[2] |
Drain Plug
|
|
| 11. |
L55601
|
[2] |
O-Ring
|
|
| 12. |
T123049
|
[12] |
Ring
|
|
| 13. |
T123048
|
[6] |
Gear
|
|
| 14. |
AT117347
|
[6] |
Cylindrical Roller Bearing
|
|
| 15. |
40M4624
|
[6] |
Snap Ring
|
|
