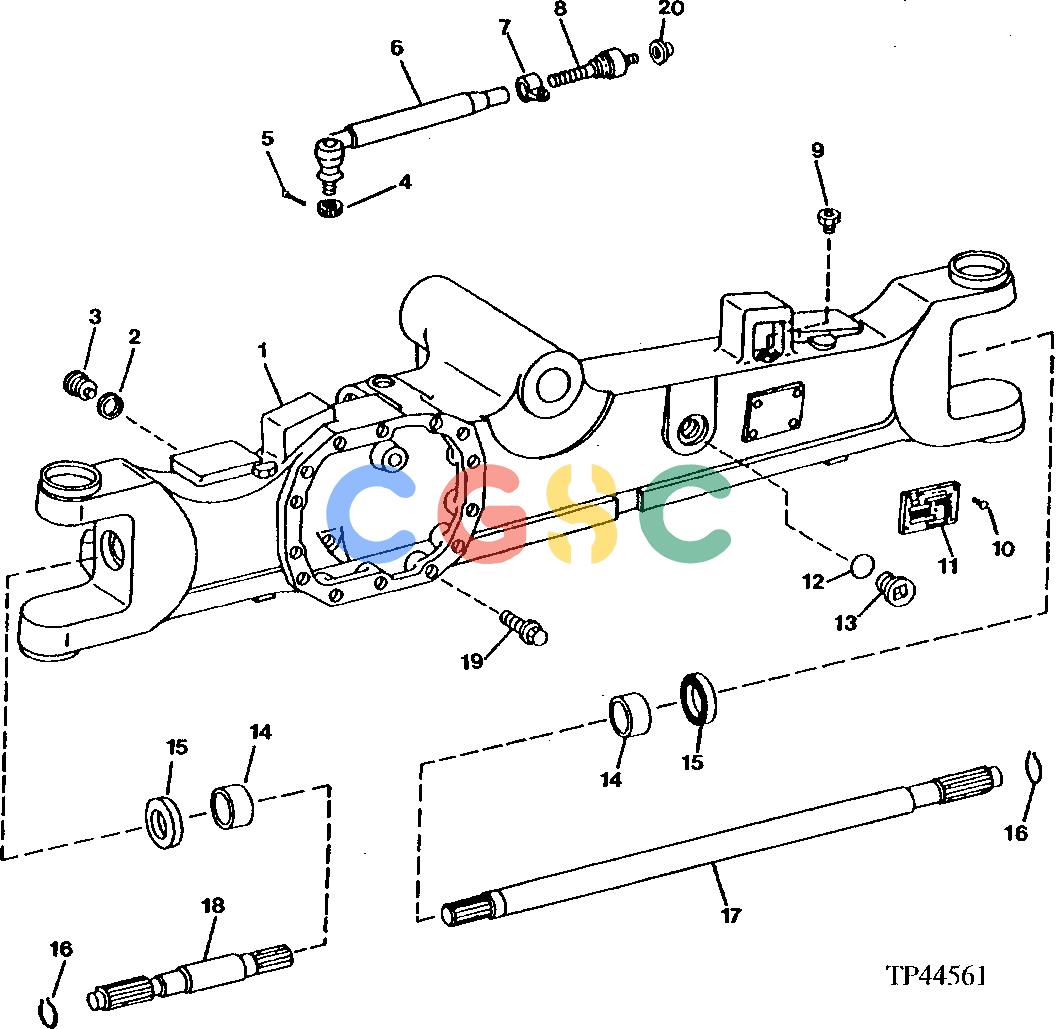

约翰迪尔零件查询410D - BACKHOE, LOADER Axle Casing With Shafts And Track Rods (w/MFWD) ( - 796854)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT108330
|
[1] |
Housing
|
|
| 2. |
R82198
|
[1] |
O-Ring
|
|
| 3. |
R79496
|
[1] |
Fitting Plug
|
|
| 4. |
14M5409
|
[2] |
Nut
|
|
| 5. |
11M7087
|
[2] |
Cotter Pin
|
|
| 6. |
AT86545
|
[1] |
Ball Joint
|
|
| 6. |
AT86546
|
[1] |
Ball Joint
|
|
| 7. |
AL34261
|
[2] |
Clamp
|
|
| 8. |
AL60161
|
[2] |
Ball Joint
|
|
| 9. |
T84081
|
[1] |
Screw
|
|
| 10. |
25M7021
|
[4] |
Groove Pin
|
|
| 11. |
........
|
[1] |
Serial Number Plate
|
|
| 12. |
L55580
|
[1] |
O-Ring
|
|
| 13. |
15M7030
|
[1] |
Pipe Plug
|
|
| 14. |
L60088
|
[2] |
Bushing
|
|
| 15. |
L110233
|
[2] |
Seal
|
|
| 16. |
L60092
|
[2] |
Snap Ring
|
|
| 17. |
T123035
|
[1] |
Shaft
|
|
| 18. |
T123036
|
[1] |
Shaft
|
|
| 19. |
19M8031
|
[14] |
Screw
|
|
| 20. |
T152301
|
[1] |
Shift Collar
|
|
