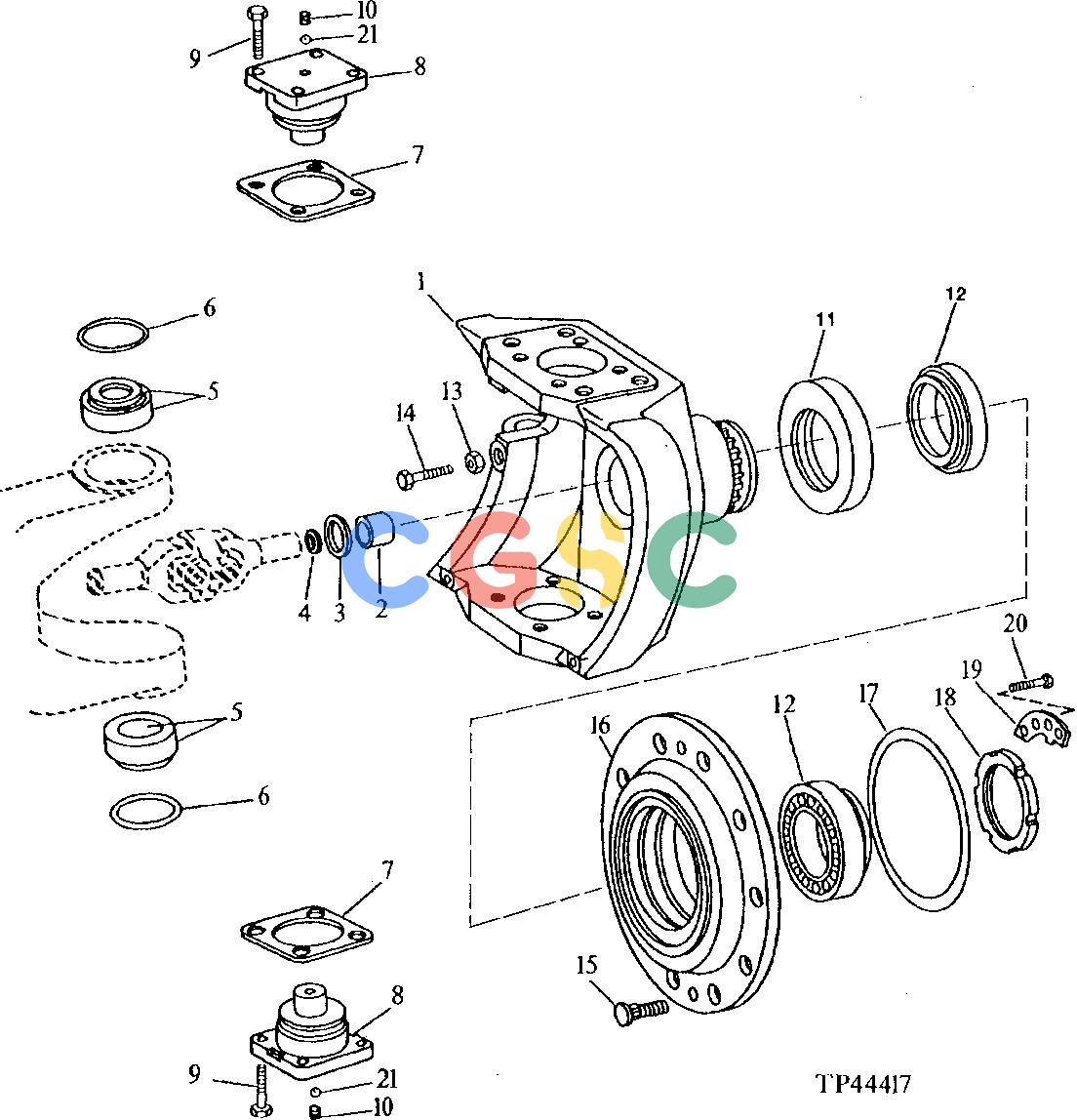

约翰迪尔零件查询410D - BACKHOE, LOADER Joint Steering Housing And Hub Assembly (w/MFWD) ( - 796854)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 1012 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT108331	[1]	Housing	L.H.
1.	AT108332	[1]	Housing	R.H.
2.	L60088	[2]	Bushing
3.	L110233	[2]	Seal	(SUB FOR T116820)
4.	L40276	[2]	Snap Ring
5.	JD8929	[4]	Bearing Cone
5.	JD8251	[4]	Bearing Cup
6.	L53869	[4]	O-Ring
7.	T116839	[AR]	Shim	0.2 MM (.008")
7.	T116840	[AR]	Shim	0.3 MM (.011")
7.	T116841	[AR]	Shim	0.4 MM (.016")
7.	T116842	[AR]	Shim	0.6 MM (.024")
7.	T116843	[AR]	Shim	0.8 MM (.031")
7.	T116844	[AR]	Shim	1.0 MM (.039")
7.	T116846	[AR]	Shim	1.6 MM (.063")
7.	T116848	[AR]	Shim	2.0 MM (.079")
8.	T147497	[4]	Kingpin	(SUB FOR (4) T116831)
9.	19M8011	[16]	Cap Screw	M12 X 30
9.	R75522	[16]	Lock Washer
10.	22M7083	[4]	Set Screw	M6 X 12
11.	AL68616	[2]	Seal	(SUB FOR T116819)
12.	JD10249	[4]	Tapered Roller Bearing
13.	14M7437	[2]	Nut	M14 (SUB FOR T84069)
14.	R83518	[2]	Screw
15.	L55598	[16]	Wheel Bolt
16.	AT108334	[2]	Hub
17.	L40317	[2]	O-Ring
18.	T116822	[2]	Nut
19.	T116827	[2]	Washer
20.	19M7902	[4]	Screw	M8 X 16
21.	T24653	[4]	Ball
