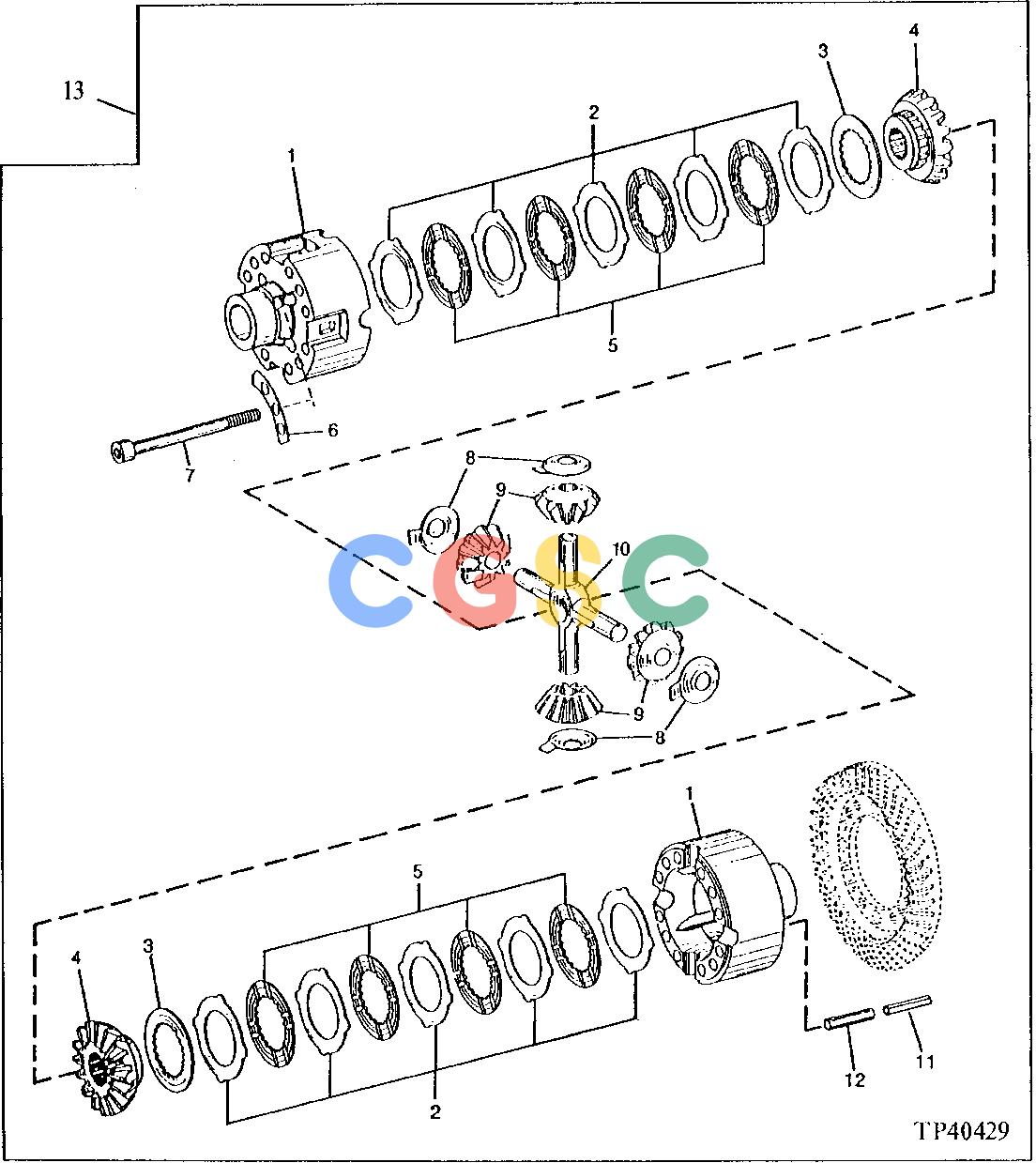

约翰迪尔零件查询410D - BACKHOE, LOADER Differential Case and Gears (w/MFWD) ( - 796854)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
178 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT84713
|
[1] |
Housing
|
|
| 2. |
L62419
|
[AR] |
Disk With Outer Spline
|
|
| 2. |
L35577
|
[AR] |
Disk With Outer Spline
|
|
| 2. |
L62420
|
[AR] |
Disk With Outer Spline
|
|
| 3. |
L40130
|
[2] |
Disk With Inner Spline
|
|
| 4. |
L40208
|
[2] |
Bevel Gear
|
|
| 5. |
T123033
|
[8] |
Clutch Disk
|
|
| 6. |
........
|
[4] |
Sector
|
|
| 6. |
R75522
|
[12] |
Lock Washer
|
|
| 7. |
19M8119
|
[12] |
Screw
|
|
| 8. |
L40253
|
[4] |
Thrust Washer
|
|
| 9. |
L101698
|
[4] |
Bevel Gear
|
|
| 10. |
T123034
|
[1] |
Spider
|
|
| 11. |
34M7047
|
[4] |
Spring Pin
|
|
| 12. |
34M7135
|
[4] |
Spring Pin
|
|
| 13. |
AT117345
|
[1] |
Differential
|
|
