约翰迪尔零件查询410D - BACKHOE, LOADER DIFFERENTIAL CARRIER (w/MFWD) ( - 796854)EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410D - BACKHOE, LOADER DIFFERENTIAL CARRIER (w/MFWD) ( - 796854)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 741 次

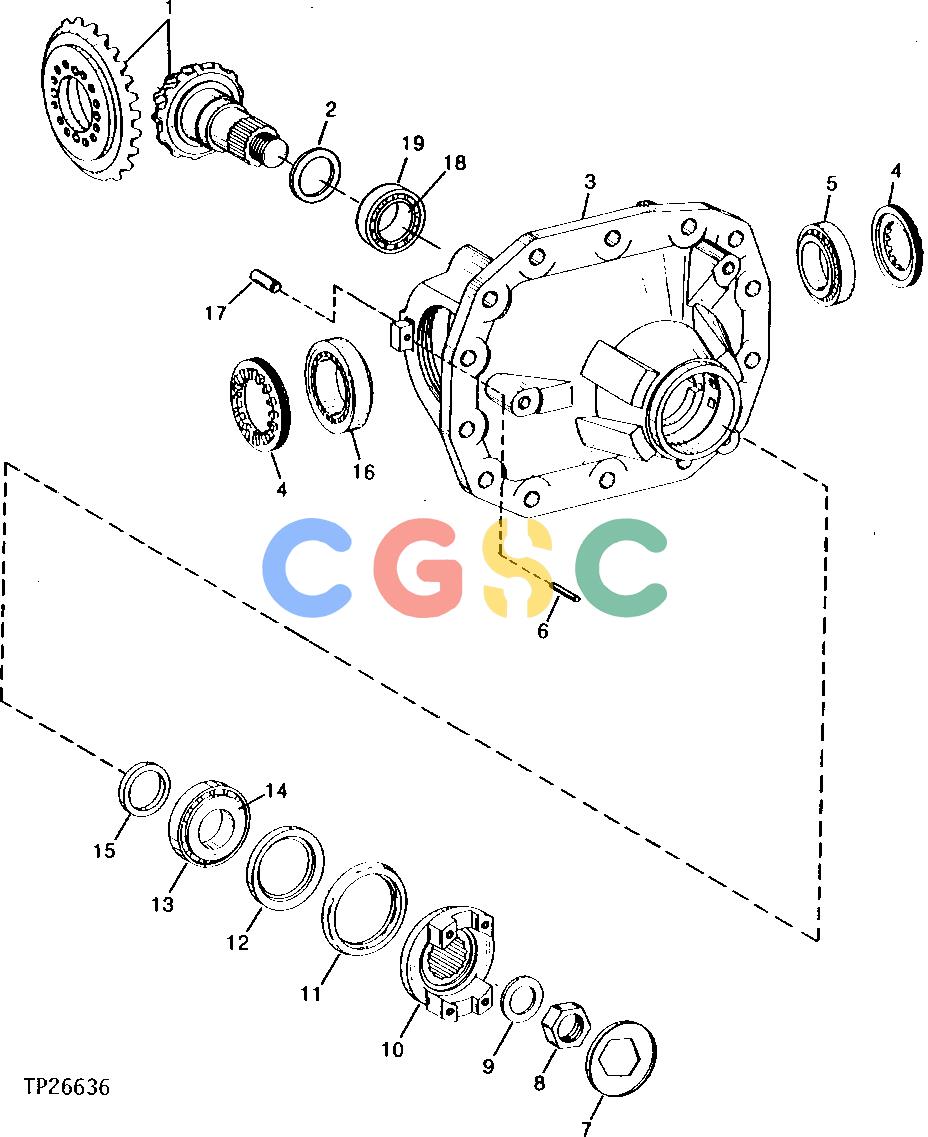

Pos.	Part No	Qty	Parts name	Comments
1.	AT117344	[1]	Bevel Gear Drive
2.	L55606	[AR]	Shim	0.65 MM (.026")
2.	L55607	[AR]	Shim	0.70 MM (.028")
2.	L55608	[AR]	Shim	0.75 MM (.030")
2.	L55610	[AR]	Washer	0.85 MM (.033")
2.	L40995	[AR]	Washer	0.90 MM (.035")
2.	L40996	[AR]	Washer	0.95 MM (.037")
2.	L40982	[AR]	Washer	1.0 MM (.039")
2.	L40983	[AR]	Washer	1.05 MM (.041")
2.	L40984	[AR]	Washer	1.1 MM (.043")
2.	L40985	[AR]	Washer	1.15 MM (.045")
2.	L40986	[AR]	Washer	1.2 MM (.047")
2.	L40987	[AR]	Washer	1.25 MM (.049")
2.	L40988	[AR]	Washer	1.3 MM (.051")
2.	L40989	[AR]	Washer	1.35 MM (.053")
2.	L40990	[AR]	Washer	1.4 MM (.055")
2.	L40991	[AR]	Washer	1.45 MM (.057")
2.	L40992	[AR]	Washer	(SUB FOR T123022)1.5 MM (.059")
2.	L40993	[AR]	Washer	(SUB FOR T123023)1.55 MM (.061")
2.	L40994	[AR]	Washer	1.6 MM (.063")
3.	T123001	[1]	Housing
4.	T82529	[2]	Nut
5.	AT436783	[1]	Cylindrical Roller Bearing	(WITH RACE), SUB FOR JD37087
6.	34M7216	[2]	Spring Pin	6 X 35 MM (SUB FOR 34M7041)
7.	T116825	[1]	Locking Collar
8.	T116821	[1]	Nut
9.	T116794	[1]	Washer
10.	T123030	[1]	Flange
11.	T123031	[1]	Cap
12.	AL79797	[1]	Seal	(SUB FOR AT113921)
13.	JD8257	[1]	Bearing Cup
14.	AR94761	[1]	Bearing Cone
15.	L100057	[AR]	Spacer	15.1 MM (.594")
15.	L100058	[AR]	Spacer	15.2 MM (.598")
15.	L100059	[AR]	Spacer	15.3 MM (.602")
15.	L100060	[AR]	Spacer	15.4 MM (.606")
15.	L100061	[AR]	Spacer	15.5 MM (.610")
15.	L100062	[AR]	Spacer	15.6 MM (.614")
15.	L100063	[AR]	Spacer	15.7 MM (.618")
15.	L100064	[AR]	Spacer	15.8 MM (.622")
15.	L100065	[AR]	Spacer	15.9 MM (.626")
15.	L100066	[AR]	Spacer	16.0 MM (.630")
15.	L100067	[AR]	Spacer	16.1 MM (.634")
15.	L100068	[AR]	Spacer	16.2 MM (.638")
15.	L100069	[AR]	Spacer	16.3 MM (.642")
15.	L100070	[AR]	Spacer	16.4 MM (.646")
16.	AT303349	[1]	Tapered Roller Bearing	SUB FOR JD37219
17.	T82528	[2]	Dowel Pin
18.	JD8901	[1]	Bearing Cone
19.	JD8236	[1]	Bearing Cup
