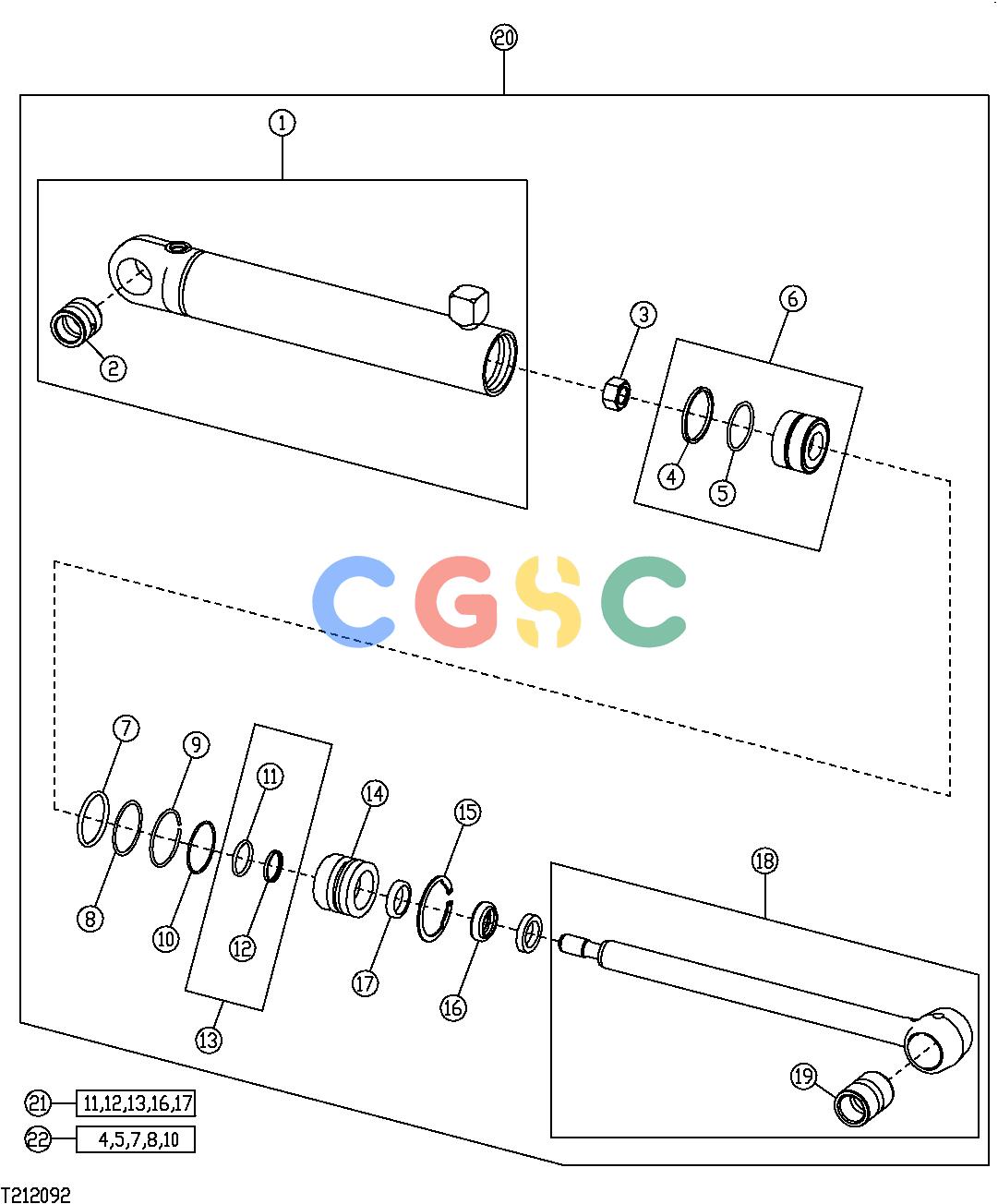

约翰迪尔零件查询410D - BACKHOE, LOADER Power Steering Cylinder W/O MFWD (Replacement Cylinder)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AH216822
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 2. |
R81854
|
[1] |
Bushing
|
|
| 3. |
H170534
|
[1] |
Nut
|
|
| 4. |
H144342
|
[1] |
Piston Ring
|
|
| 5. |
U15973
|
[1] |
O-Ring
|
|
| 6. |
AH138200
|
[1] |
Piston
|
|
| 7. |
H158942
|
[1] |
O-Ring
|
|
| 8. |
R79117
|
[1] |
Back-Up Ring
|
|
| 9. |
R90565
|
[1] |
Snap Ring
|
|
| 10. |
T22828
|
[1] |
O-Ring
|
|
| 11. |
H158674
|
[1] |
Seal
|
|
| 12. |
H158675
|
[1] |
Seal
|
|
| 13. |
AH151381
|
[1] |
Seal
|
|
| 14. |
H157662
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 15. |
R82571
|
[1] |
Snap Ring
|
|
| 16. |
AH151380
|
[1] |
Seal
|
|
| 17. |
H158676
|
[1] |
Seal
|
|
| 18. |
RE22415
|
[1] |
Hydraulic Cylinder Rod
|
|
| 19. |
R72700
|
[1] |
Bushing
|
|
| 20. |
AH234000
|
[1] |
Hydraulic Cylinder
|
|
| 21. |
AH149810
|
[1] |
Hydraulic Cylinder Kit
|
|
| 22. |
AH167552
|
[1] |
Hydraulic Cylinder Kit
|
|
