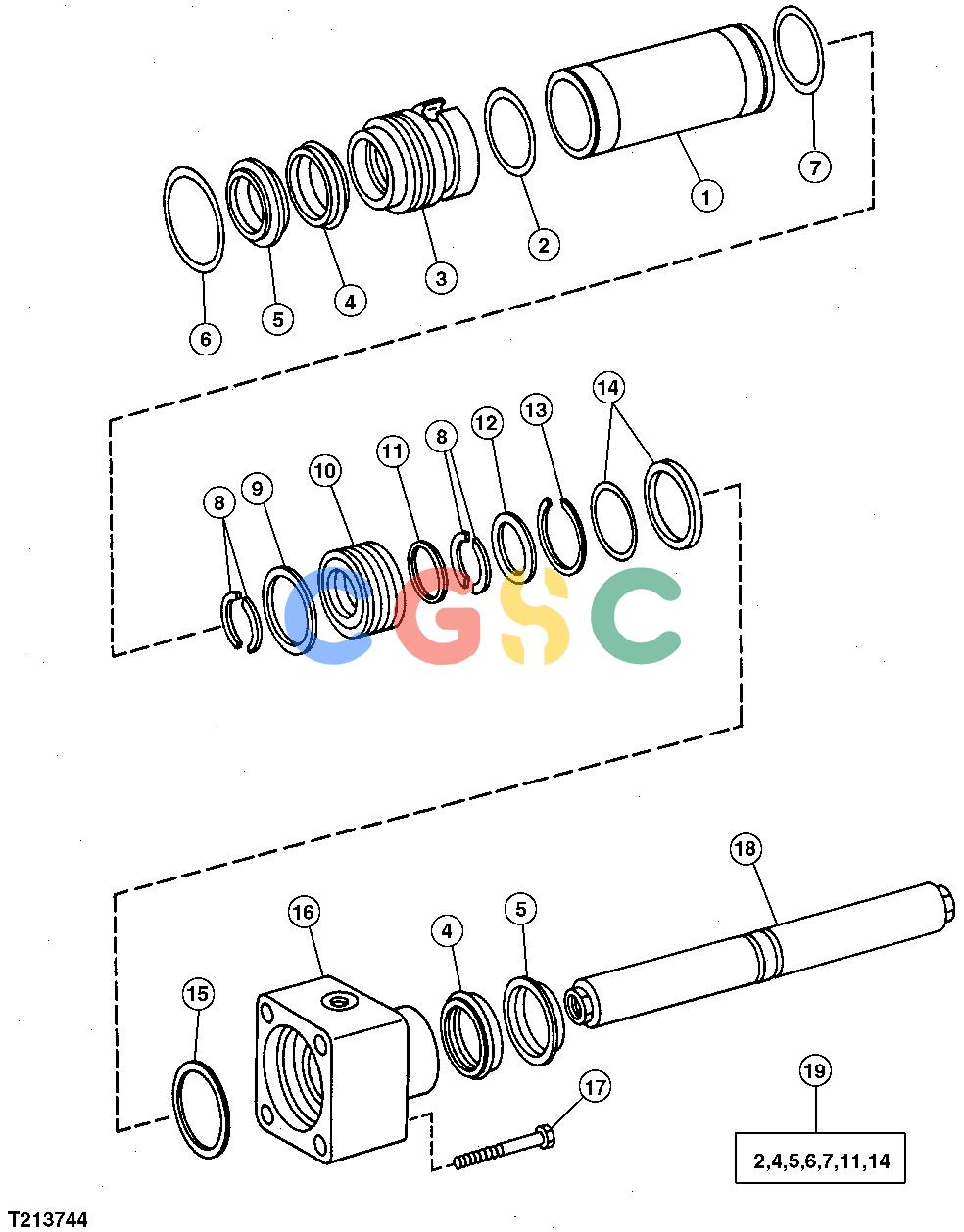

约翰迪尔零件查询410D - BACKHOE, LOADER Steering Cylinder, MFWD ( - 796854)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 941 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT108335	[1]	Hydraulic Cylinder Barrel
2.	L40318	[1]	O-Ring	(K)
3.	T116826	[1]	Guide
4.	L41317	[2]	Seal	(K)
5.	L41318	[2]	Seal	(K)
6.	L40320	[1]	O-Ring	(K)
7.	L40318	[1]	O-Ring	(K) (SUB FOR L40319)
8.	T116796	[2]	Washer
9.	T116785	[1]	Ring
10.	T116828	[1]	Piston
11.	T116789	[1]	O-Ring	(K)
12.	T116829	[1]	Washer
13.	40M7127	[1]	Snap Ring
14.	T116784	[1]	Gasket	(K)
15.	L40162	[AR]	Washer	1.0 MM (.039")
15.	L40161	[AR]	Washer	1.1 MM (.043")
15.	L40160	[AR]	Washer	1.2 MM (.047")
15.	L40159	[AR]	Washer	1.3 MM (.051")
15.	L40158	[AR]	Washer	1.4 MM (.055")
15.	L40157	[AR]	Washer	1.5 MM (.059")
15.	L40156	[AR]	Washer	1.6 MM (.063")
15.	L40155	[AR]	Washer	1.7 MM (.067")
15.	L39999	[AR]	Washer	1.8 MM (.071")
15.	L60115	[AR]	Washer	0.9 MM (0.35")
16.	T116834	[1]	Hydr. Cylinder Rod Guide
17.	T84067	[4]	Screw
18.	T116835	[1]	Hydraulic Cylinder Rod
19.	AT108329	[1]	Seal Kit	(ALSO ORDER T116785)
