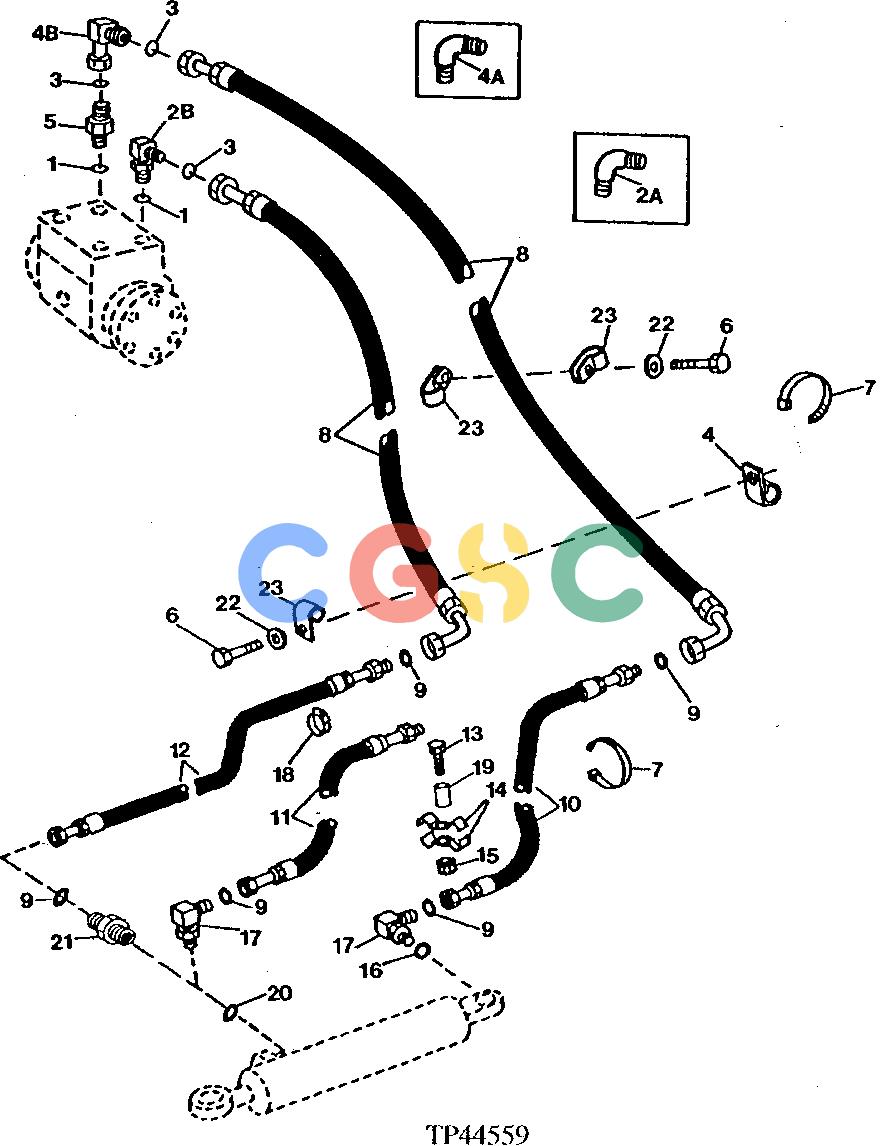

Pos.	Part No	Qty	Parts name	Comments
1.	R26375	[2]	O-Ring
2A.	38H1046	[1]	Elbow Fitting
2B.	38H1005	[1]	Elbow Fitting
3.	T77857	[3]	O-Ring
4A.	38H1046	[1]	Elbow Fitting
4B.	38H1095	[1]	Elbow Fitting
5.	38H1161	[1]	Adapter Fitting
6.	19M7938	[3]	Cap Screw	M10 X 20
7.	R44302	[1]	Tie Band
8.	AT151344	[2]	Hydraulic Hose - Fabricate
9.	T77613	[4]	O-Ring	(WITH MFWD)
9.	T77613	[2]	O-Ring	(WITHOUT MFWD)
9.	T77613	[3]	O-Ring	(WITHOUT MFWD)
10.	AT151345	[1]	Hydraulic Hose - Fabricate	(WITH MFWD) (LEFT END)
10.	AT151348	[1]	Hydraulic Hose - Fabricate	(WITHOUT MFWD) (HEAD END)
11.	AT151346	[1]	Hydraulic Hose - Fabricate	17.4752" X 1175 MM (46-1/4") X 17.4752" (WITH MFWD) (RIGHT END)
11.	AT165341	[1]	Hydraulic Hose - Fabricate	17.4752" X 1276 MM (50-1/4") X 17.4752"
12.	........	[1]	Hydraulic Hose	( AT151347 NO LONGER AVAILABLE) (SUB AT157316 AND 38H1160 (WITHOUT MFWD) (ROD END))
12.	AT157316	[1]	Hydraulic Hose - Fabricate	(WITHOUT MFWD)
13.	19M7550	[1]	Cap Screw	M10 X 35 (WITH MFWD)
14.	R46919	[2]	Half Clamp	(WITH MFWD)
15.	14M7274	[1]	Nut	M10 (WITH MFWD)
16.	R26448	[2]	O-Ring
16.	R26448	[1]	O-Ring
17.	38H1004	[1]	Elbow Fitting	(WITHOUT MFWD)
17.	38H1004	[2]	Elbow Fitting	(WITH MFWD)
18.	AR21839	[1]	Clamp
19.	28H1521	[1]	Spacer	0.493" X 0.675" X 9/16"
20.	R26375	[1]	O-Ring
21.	38H1171	[1]	Adapter Fitting
22.	24M7239	[7]	Washer	10.700 X 21 X 2.500 MM
23.	T74416	[6]	Clamp
