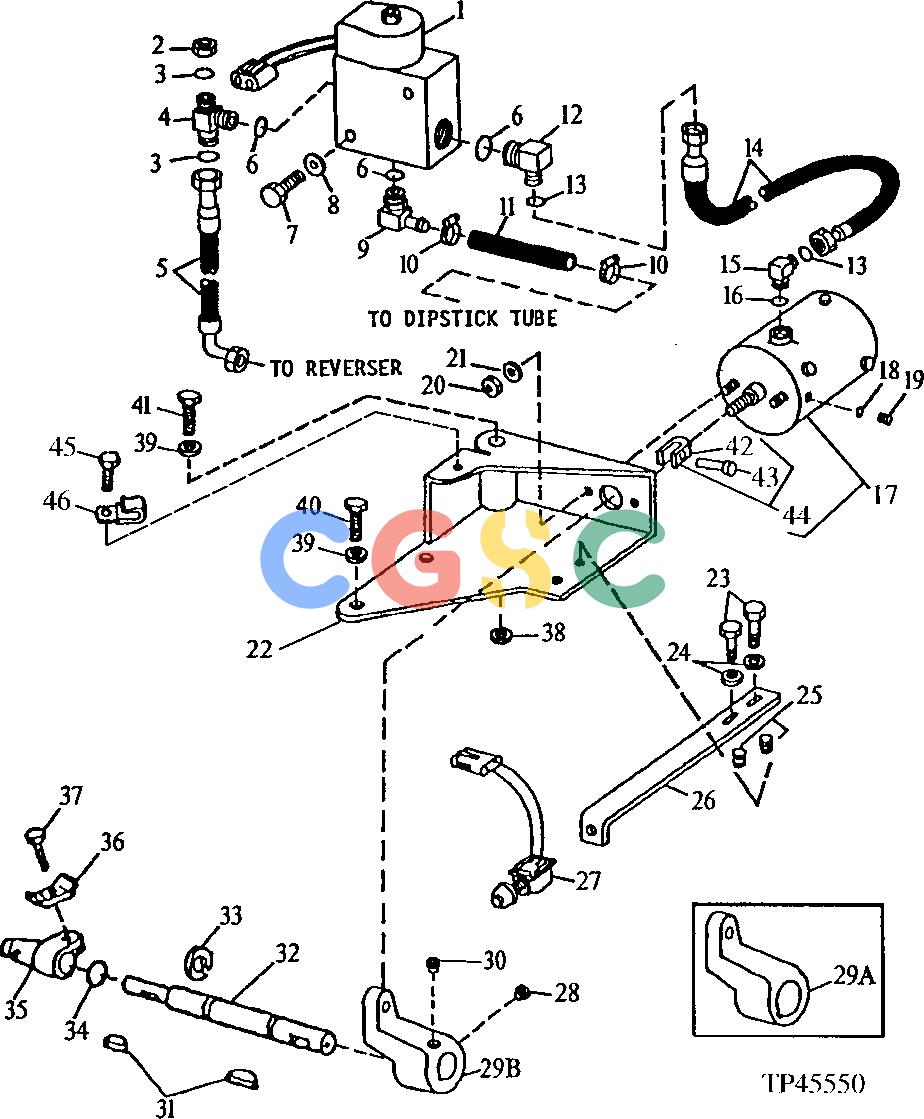

约翰迪尔零件查询410D - BACKHOE, LOADER PARK BRAKE ACTUATOR AND CONTROLSEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
281 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT158084
|
[1] |
Solenoid
|
|
| 2. |
T140268
|
[1] |
Plug
|
|
| 2. |
38H1416
|
[1] |
Fitting
|
|
| 3. |
T77857
|
[2] |
O-Ring
|
|
| 4. |
38H1005
|
[1] |
Elbow Fitting
|
|
| 5. |
AT162774
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 6. |
R26375
|
[3] |
O-Ring
|
|
| 7. |
19M7981
|
[2] |
Cap Screw
|
|
| 7. |
19M8081
|
[2] |
Cap Screw
|
|
| 8. |
24M7238
|
[2] |
Washer
|
|
| 8. |
24M7239
|
[2] |
Washer
|
|
| 9. |
AR90369
|
[1] |
Elbow Fitting
|
|
| 10. |
TY22464
|
[2] |
Clamp
|
|
| 11. |
........
|
[1] |
Hose
|
|
| 12. |
38H1405
|
[1] |
Elbow Fitting
|
|
| 13. |
T77932
|
[2] |
O-Ring
|
|
| 14. |
AT150857
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 15. |
38H1006
|
[1] |
Elbow Fitting
|
|
| 16. |
R26906
|
[1] |
O-Ring
|
|
| 17. |
AT146182
|
[1] |
Actuator
|
|
| 17. |
AT171247
|
[1] |
Seal Kit
|
|
| 18. |
R26287
|
[1] |
O-Ring
|
|
| 19. |
R31631
|
[1] |
Drain Plug
|
|
| 20. |
14H808
|
[2] |
Nut
|
|
| 21. |
24M7241
|
[2] |
Washer
|
|
| 22. |
AT160736
|
[1] |
Bracket
|
|
| 23. |
19H3239
|
[2] |
Cap Screw
|
|
| 24. |
24M7239
|
[2] |
Washer
|
|
| 25. |
28H2497
|
[2] |
Spacer
|
|
| 26. |
T135418
|
[1] |
Strap
|
|
| 27. |
AT157547
|
[1] |
Switch
|
|
| 28. |
AN122499
|
[1] |
Bolt
|
|
| 29A. |
T137349
|
[1] |
Arm
|
|
| 29B. |
T142414
|
[1] |
Arm
|
|
| 30. |
AN122499
|
[1] |
Bolt
|
|
| 31. |
26H77
|
[2] |
Shaft Key
|
|
| 32. |
T132945
|
[1] |
Shaft
|
|
| 33. |
M2353T
|
[1] |
Snap Ring
|
|
| 34. |
T122075
|
[1] |
O-Ring
|
|
| 35. |
L32144
|
[1] |
Lever
|
|
| 36. |
R1888R
|
[1] |
Strap
|
|
| 37. |
19H3483
|
[1] |
Cap Screw
|
|
| 38. |
T135419
|
[1] |
Spacer
|
|
| 39. |
24M7240
|
[2] |
Washer
|
|
| 40. |
19H2993
|
[1] |
Cap Screw
|
|
| 41. |
T27644
|
[1] |
Screw
|
|
| 42. |
........
|
[1] |
Yoke
|
|
| 43. |
........
|
[1] |
Pin
|
|
| 44. |
AT161025
|
[1] |
Yoke Kit
|
|
| 45. |
19H2038
|
[1] |
Cap Screw
|
|
| 46. |
T19935
|
[1] |
Clamp
|
|
