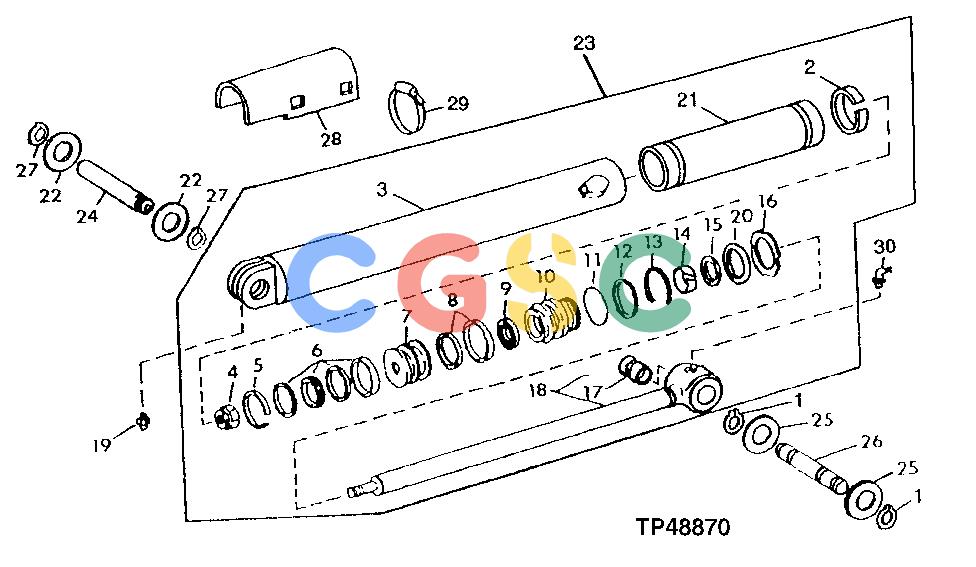

约翰迪尔零件查询410D - BACKHOE, LOADER Bucket Cylinder (For Use With 1.5M Extendible Dipperstick) ( - 787385)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 983 次

Pos.	Part No	Qty	Parts name	Comments
1.	40M7066	[2]	Snap Ring
2.	R97848	[2]	Wear Ring
3.	AH143311	[1]	Hydraulic Cylinder Barrel
4.	R81866	[1]	Nut
5.	R81776	[1]	Wear Ring	(BK)
6.	RE20344	[1]	Seal	(BK)
7.	R82090	[1]	Piston
8.	RE20757	[1]	Seal	(RK)
9.	R81973	[1]	Seal	(RK)
10.	........	[1]	Hydr. Cylinder Rod Guide	(RK) ( R82088 NO LONGER USED) (SUB H154352 ) (ALSO ORDER AH210484)
11.	R83576	[1]	O-Ring	(BK) (SUB FOR F1430R, THIS APPLICATION)
12.	R79101	[1]	Back-Up Ring	(BK)
13.	R81788	[1]	Ring
14.	R81975	[1]	Wear Ring	(RK)
15.	RE24536	[1]	Seal	(RK)
16.	R81794	[1]	Nut
17.	R82077	[1]	Bushing
18.	RE22501	[1]	Rod
19.	T162396	[1]	Lubrication Fitting	(SUB FOR JD7798)1/8", STRAIGHT
20.	R91730	[AR]	Ring	(BK)
21.	H149421	[1]	Spacer
22.	24H1576	[AR]	Washer	1-13/16" X 2-15/16" X 0.075" (K)
22.	24H1572	[AR]	Washer	1-13/16" X 2-3/8" X 0.060"
23.	AH143312	[1]	Hydraulic Cylinder
24.	T100188	[1]	Pin Fastener	(......... 1.5M EXTENDIBLE DIPPER KIT (INCLUDES T147002, T141234, AND EXTENDIBLE DIPPERSTICK)) (SUB FOR T125937)
25.	T125955	[3]	Washer
26.	T140905	[1]	Pin Fastener
27.	40M7180	[2]	Snap Ring	(......... 1.5M EXTENDIBLE DIPPER KIT (INCLUDES T147002, T141234, AND EXTENDIBLE DIPPERSTICK))
28.	T147178	[1]	Guard
29.	AT125191	[1]	Hose Clamp
30.	JD7799	[1]	Lubrication Fitting	1/8", 90°
