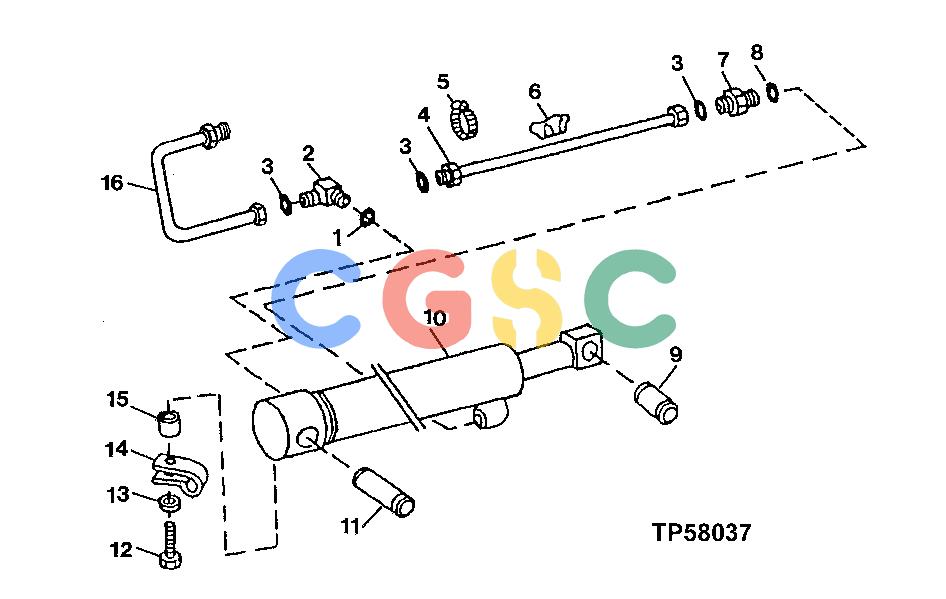

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | R26375 | [2] | O-Ring | (AT167718 REPLACEMENT CYLINDER KIT) |
| 2. | AT161678 | [1] | Elbow Fitting | (AT167718 REPLACEMENT CYLINDER KIT) |
| 3. | T77857 | [3] | O-Ring | (AT167718 REPLACEMENT CYLINDER KIT) |
| 4. | AT114218 | [1] | Oil Line | (STANDARD) (USE WITH AH144391 AND AH154784) |
| 4. | AT159058 | [1] | Tube | (HEAVY LIFT) (USE WITH AH146325) |
| 5. | AR21842 | [1] | Clamp | (AT167718 REPLACEMENT CYLINDER KIT) |
| 6. | T101624 | [1] | Support | (AT167718 REPLACEMENT CYLINDER KIT) |
| 7. | 38H1173 | [1] | Adapter Fitting | (AT167718 REPLACEMENT CYLINDER KIT) |
| 8. | R26448 | [1] | O-Ring | (AT167718 REPLACEMENT CYLINDER KIT) |
| 9. | T146688 | [1] | Bushing | (AT167718 REPLACEMENT CYLINDER KIT) |
| 10. | AH154784 | [1] | Hydraulic Cylinder | (STANDARD) (SUB FOR AT101063 AND AH144391) |
| 10. | ........ | [1] | Hydraulic Cylinder | (HEAVY LIFT) ( AH155668 NO LONGER AVAILABLE) (SUB AH216316 ) (SUB FOR AT84174 AND AH144392) |
| 11. | T146689 | [1] | Bushing | (AT167718 REPLACEMENT CYLINDER KIT) |
| 12. | 19M7513 | [1] | Cap Screw | (AT167718 REPLACEMENT CYLINDER KIT) M8 X 30 |
| 13. | 24M7238 | [1] | Washer | (AT167718 REPLACEMENT CYLINDER KIT) 8.700 X 17 X 2 MM |
| 14. | T24958 | [1] | Clip | (AT167718 REPLACEMENT CYLINDER KIT) |
| 15. | 28H1883 | [1] | Spacer | (AT167718 REPLACEMENT CYLINDER KIT) 0.364" X 0.540" X 1/2" |
| 16. | AT164788 | [2] | Oil Line | (USE WITH AH144392) |
| 16. | AT164789 | [2] | Oil Line | (USE WITH AH144391 AND AH154784) |
