约翰迪尔零件查询410E - BACKHOE, LOADER Differential Housing, Axle Housing and ShaftEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 270 次

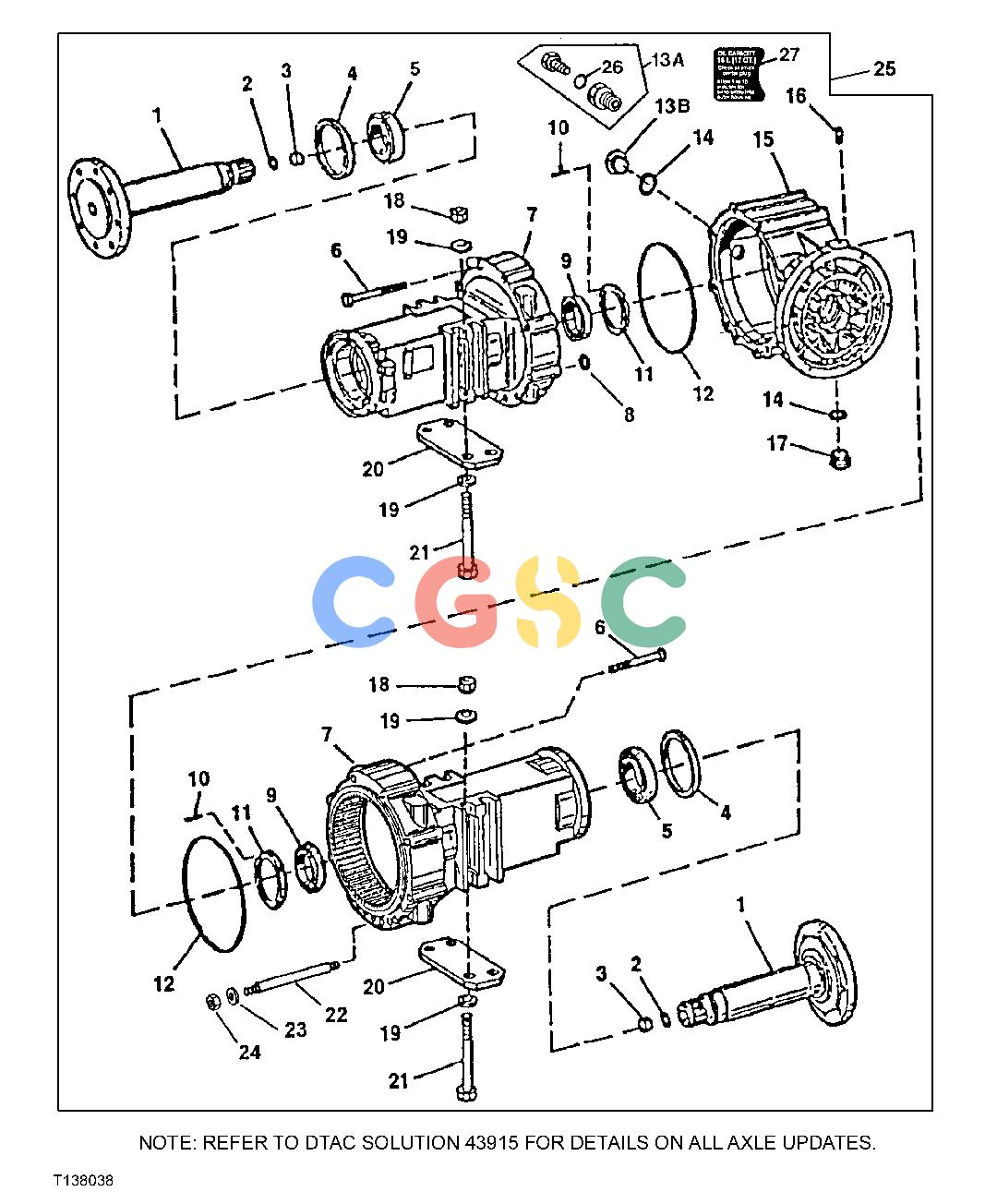

Pos.	Part No	Qty	Parts name	Comments
1.	T154951	[2]	Shaft
2.	R75384	[AR]	Shim	.3MM
2.	R75383	[AR]	Shim	.5MM
2.	R75382	[AR]	Shim	1.0MM
2.	T183496	[AR]	Solid Shim	2.0MM
2.	R75385	[AR]	Shim	3.0MM
3.	R79132	[2]	Pin	(SUB FOR L38470)
4.	AT179502	[2]	Seal
5.	AT179500	[2]	Tapered Roller Bearing
6.	19M7677	[16]	Cap Screw	M16 X 240
7.	AT179499	[2]	Housing
8.	T159373	[8]	O-Ring
9.	AT179501	[2]	Tapered Roller Bearing
10.	T164844	[2]	Groove Pin	(ALSO ORDER INSTR. T184401) (SUB FOR T159372, T166083 AND AT186927)
11.	T185444	[2]	Nut	(SUB FOR T159371)
12.	T159362	[2]	O-Ring
13A.	AT183793	[1]	Kit	(ALSO ORDER T164420)
13B.	15M7030	[1]	Pipe Plug
14.	Z77164	[2]	O-Ring	(SUB FOR L55580)
15.	........	[1]	Housing	(T159361 NLA) (SUB T164998 AND T164999)
15.	T164998	[1]	Housing
16.	AL32877	[1]	Vent	BREATHER
17.	L56822	[1]	Pipe Plug
18.	14M7315	[8]	Nut	M20
19.	N231749	[16]	Washer
20.	T147269	[2]	Plate
21.	19M8001	[8]	Cap Screw	M20 X 260
22.	T159388	[4]	Stud
23.	T159386	[4]	Washer
24.	T159389	[4]	Nut
25.	AT330526	[1]	Rear Axle Reman	ALSO INCLUDES PLANETARY PINION CARRIER, RING GEAR ASSEMBLY, DIFFERENTIAL ASSEMBLY WITH LOCK SERVICE BRAKE, PARK BRAKE ASSEMBLY AND INPUT YOKE (SUB FOR AT192628 OR AT169781) (MARKED AT192628)
26.	T164433	[1]	Gasket
27.	T164420	[1]	Label
27.	T164999	[1]	Label
