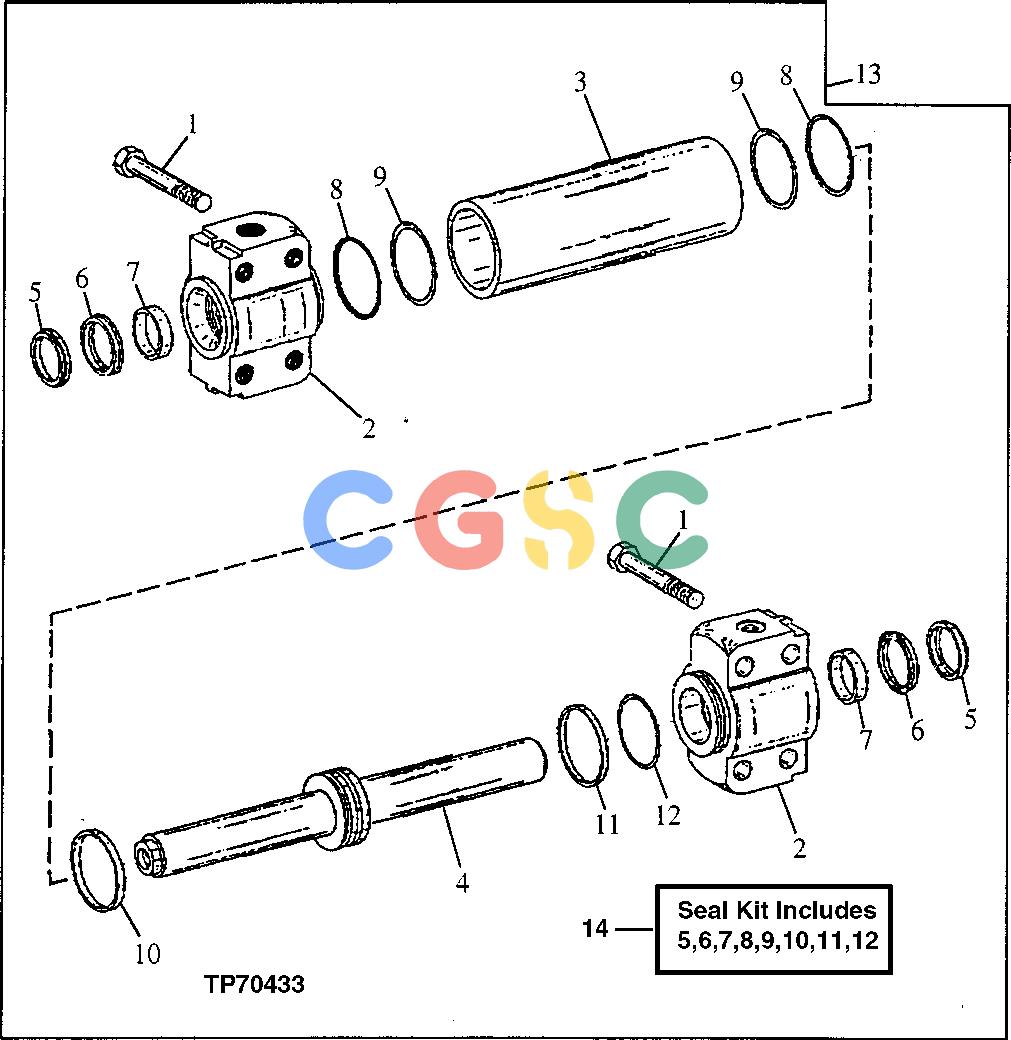

Pos.	Part No	Qty	Parts name	Comments
1.	19M8632	[8]	Cap Screw	M16 X 75
2.	........	[2]	Hydraulic Cylinder Cap	ORIGINAL CYLINDER (T153723 NLA) (ORDER AT195570)
2.	........	[2]	Hydraulic Cylinder Cap	REPLACEMENT CYLINDER (T213799 NLA) (ORDER AT195570)
3.	T153742	[1]	Hydraulic Cylinder Barrel	(ORIGINAL CYLINDER)
3.	........	[1]	Hydraulic Cylinder Barrel	REPLACEMENT CYLINDER (T213800 NLA) (ORDER AT195570)
4.	AT195573	[1]	Rod	ORIGINAL CYLINDER (SUB FOR T153743)
4.	........	[1]	Rod	REPLACEMENT CYLINDER (AT318551 NLA) (ORDER AT195570)
5.	........	[2]	Seal	(A)
6.	........	[2]	Seal	(A)
7.	........	[2]	Guide	(A)
8.	........	[2]	O-Ring	(A)
9.	........	[2]	Ring	(A)
10.	........	[1]	Seal	(A)
11.	........	[1]	Guide	(A)
12.	........	[1]	O-Ring	(A)
13.	AT195570	[1]	Cylinder	ORIGINAL EQUIPMENT (USED ON AXLE MARKED AT171135) (SUB FOR AT167332)
13.	AT195570	[1]	Cylinder	REPLACES (USED ON AXLE MARKED AT307740)
14.	T153744	[1]	Hydraulic Cylinder Kit	ORIGINAL CYLINDER (STEERING CYLINDER SEAL KIT) INCLUDES ALL (A) PARTS
14.	T213801	[1]	Hydraulic Cylinder Kit	REPLACES CYLINDER (STEERING CYLINDER SEAL KIT) INCLUDES ALL (A) PARTS
