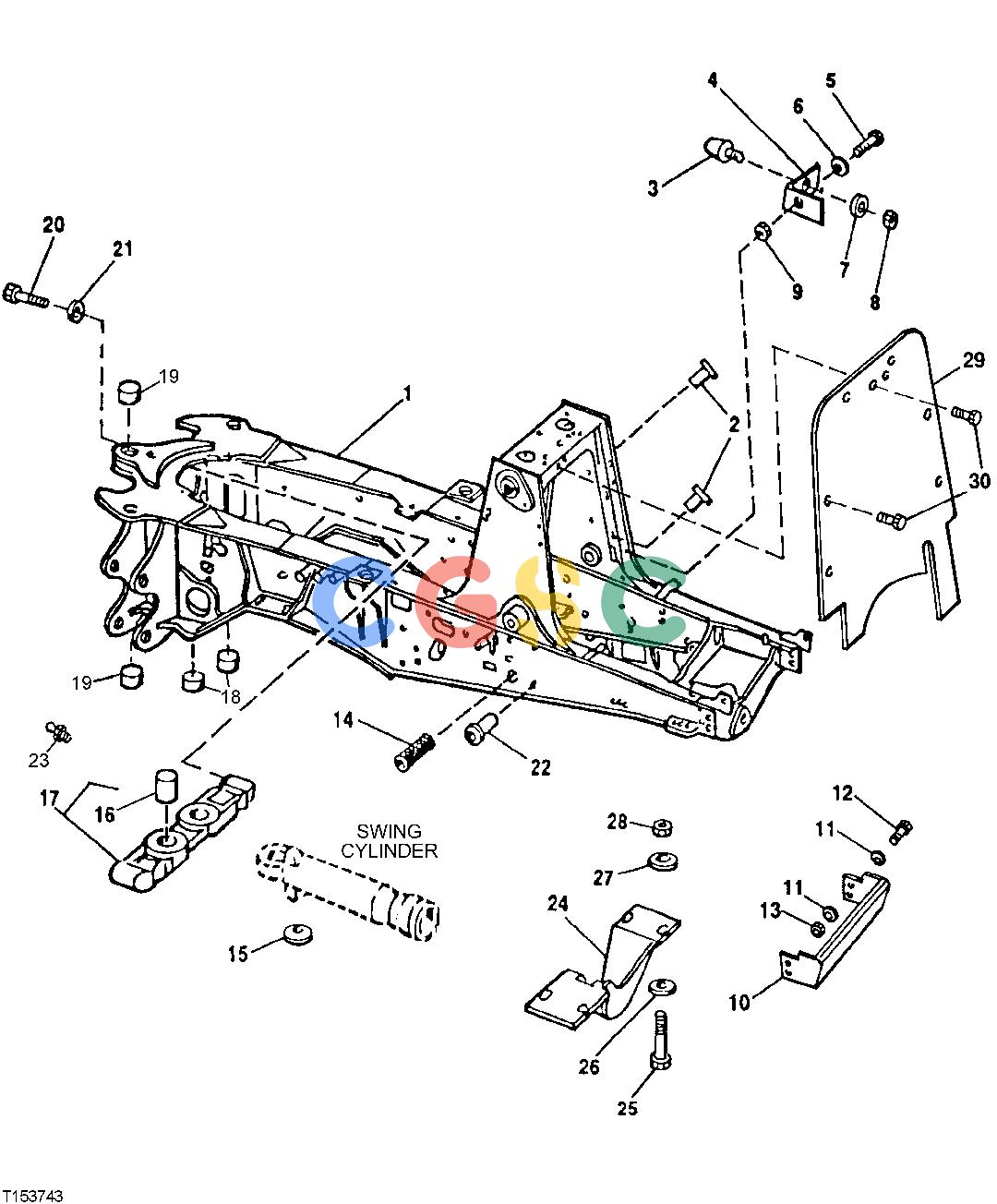

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Frame	(VEHICLE MAIN) (AT175238 NLA)
2.	T148410	[17]	Nut	M10 (NO.8) KREMNUT RED
2.	14M7274	[2]	Nut	M10 (SUB FOR T148409, THIS APPLICATION) (NO.6) KREMNUT GOLD
3.	AT36635	[1]	Bumper	(CAB DOOR)
4.	T152598	[1]	Support
5.	19M7662	[1]	Cap Screw	M10 X 30
6.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
7.	24H1136	[1]	Washer	11/32" X 11/16" X 0.065"
8.	14H650	[1]	Nut	5/16"
9.	14M7167	[1]	Lock Nut	M10
10.	AT176129	[1]	Bumper
11.	24M7239	[8]	Washer	10.700 X 21 X 2.500 MM
12.	19M7662	[4]	Cap Screw	M10 X 30
13.	14M7274	[4]	Nut	M10
14.	........	[1]	Hose	CUT TO (40MM) MAKE FROM T153193 BULK MATERIAL
15.	T148387	[2]	Washer	71 X 101.500 X 8 MM (2.795" X 3.996" X 0.315")
16.	T153303	[2]	Bushing
17.	AT169804	[1]	Trunnion	(MARKED T153304)
18.	T147070	[2]	Bushing	(SWING CYLINDER MOUNTING)
19.	T154621	[1]	Bushing	TOP SWING FRAME MOUNTING
19.	T154643	[1]	Bushing	BOTTOM SWING FRAME MOUNTING
20.	19M8224	[4]	Cap Screw	M20 X 60
21.	T83426	[4]	Washer	20.900 X 35.400 X 7.090 MM (0.823" X 1.394" X 0.279")
22.	T148411	[3]	Nut	10MM PLATE (NO.10) KREMNUT BLACK
23.	T162396	[2]	Lubrication Fitting	(SUB FOR JD7798)
24.	AT178315	[1]	Guard
25.	19M7550	[4]	Cap Screw	M10 X 35
26.	24H1886	[4]	Washer	15/32" X 1-1/8" X 0.180"
27.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
28.	14M7274	[4]	Nut	M10
29.	T161325	[1]	Isolator	(USE W/ AIR CONDITIONING)
30.	MT2485	[6]	Plug	FASTENER (SUB FOR T161380)
