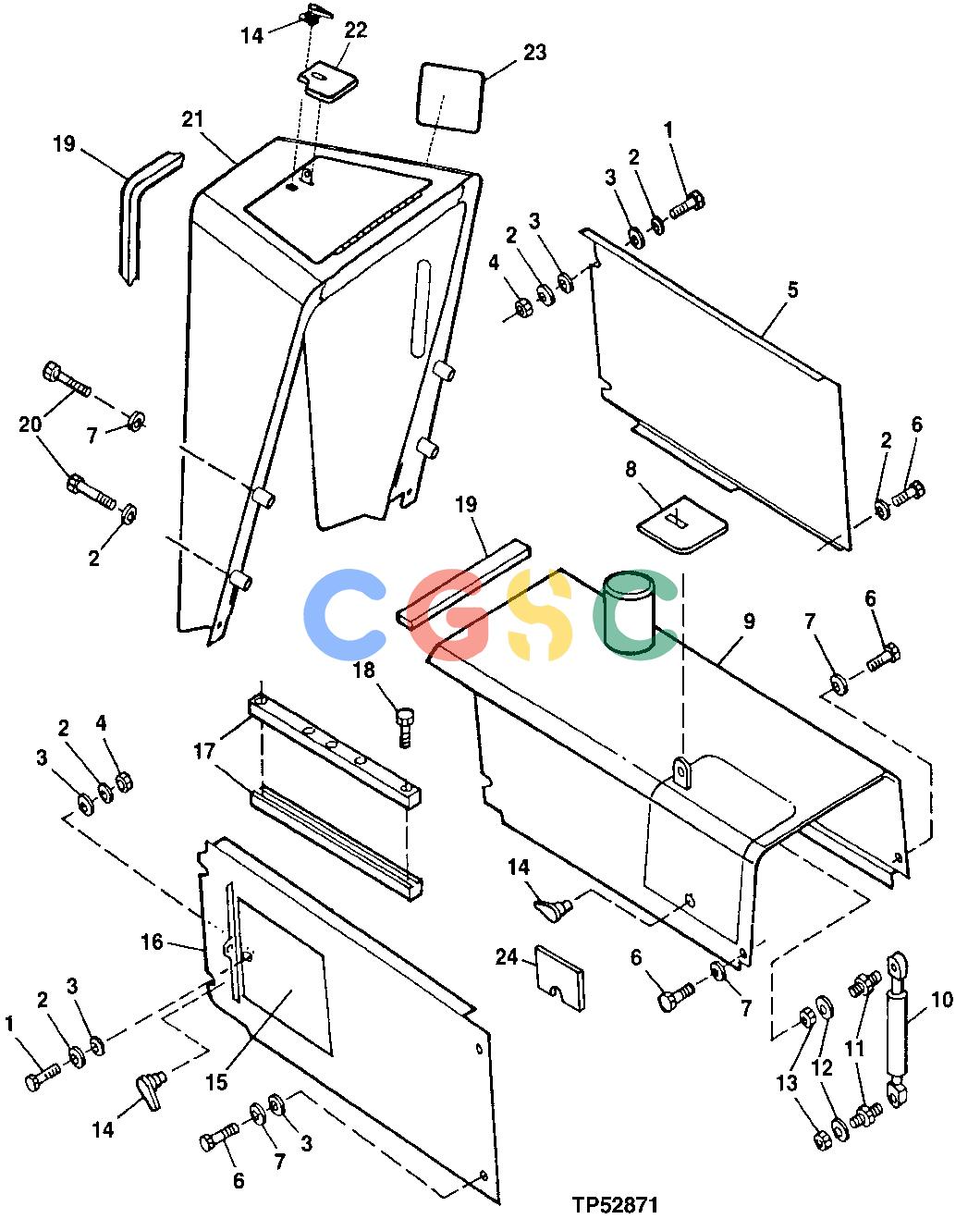

约翰迪尔零件查询410E - BACKHOE, LOADER Cover (Engine Compartment)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
973 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7572
|
[4] |
Cap Screw
|
|
| 2. |
24M7296
|
[15] |
Washer
|
|
| 3. |
T148643
|
[8] |
Guide
|
|
| 4. |
14M7167
|
[4] |
Lock Nut
|
|
| 5. |
T160347
|
[1] |
Shield
|
|
| 6. |
19M7938
|
[8] |
Cap Screw
|
|
| 7. |
24M7239
|
[5] |
Washer
|
|
| 8. |
T160700
|
[1] |
Label
|
|
| 9. |
AT188455
|
[1] |
Hood
|
|
| 10. |
AT151991
|
[1] |
Gas Operated Cylinder
|
|
| 11. |
T142651
|
[2] |
Ball Stud
|
|
| 12. |
24H1136
|
[2] |
Washer
|
|
| 13. |
14H785
|
[2] |
Nut
|
|
| 14. |
AT189710
|
[3] |
Latch
|
|
| 15. |
T161485
|
[1] |
Door
|
|
| 16. |
AT179798
|
[1] |
Shield
|
|
| 17. |
T160200
|
[2] |
Guide
|
|
| 18. |
37H129
|
[10] |
Screw
|
|
| 19. |
T142819
|
[AR] |
Isolator
|
|
| 20. |
19M7875
|
[4] |
Cap Screw
|
|
| 21. |
AT171365
|
[1] |
Cowl
|
|
| 22. |
T161692
|
[1] |
Label
|
|
| 23. |
T160256
|
[1] |
Label
|
|
| 24. |
T161735
|
[1] |
Label
|
|
