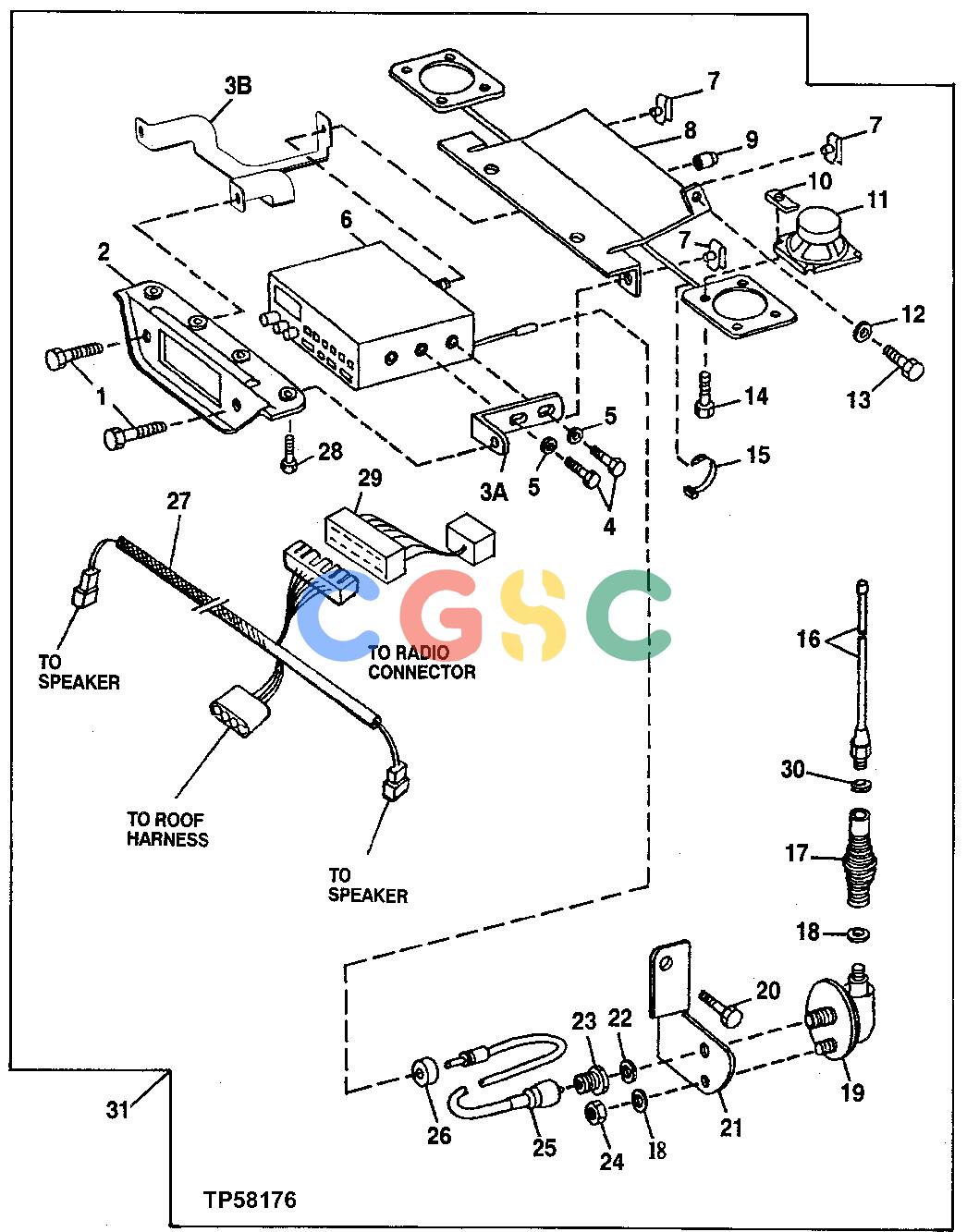

约翰迪尔零件查询410E - BACKHOE, LOADER Radio, Antenna, Speakers and Wire Harness (For Use w/ Cab Only)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 307 次

Pos.	Part No	Qty	Parts name	Comments
1.	T133674	[2]	Self-Locking Screw
2.	T142250	[1]	Panel
3A.	T142249	[2]	Angle
3B.	T184860	[1]	Bracket
4.	21M7265	[4]	Screw	M5 X 12
5.	24H1283	[4]	Washer	7/32" X 1/2" X 0.049"
6.	........	[1]	Radio	(AT148348 NLA) (SUB RE190139) (ALSO ORDER T184860 AND AT191243)
6.	RE190139	[1]	Radio	(AM/FM STEREO) (SUB FOR AH167570, THIS APPLICATION) (SUB FOR AT192754)
7.	M84972	[10]	Nut
8.	AT151112	[1]	Plate	(RADIO/SPEAKER MOUNTING)
9.	T142434	[1]	Bushing
10.	BP13712	[8]	Nut
11.	R99016	[2]	Speaker
12.	24M7100	[1]	Washer	6.600 X 22 X 2 MM (SUB FOR 24M7139)
13.	19M7933	[1]	Cap Screw	M6 X 25
14.	19H1227	[8]	Cap Screw	1/4" X 1/2"
15.	R44302	[4]	Tie Band
16.	AR104516	[1]	Antenna
17.	AR104518	[1]	Spring
18.	12H302	[2]	Lock Washer	1/4"
19.	RE61648	[1]	Base
20.	19M7938	[1]	Cap Screw	M10 X 20
21.	T140598	[1]	Bracket
22.	12H292	[1]	Lock Washer	1/2"
23.	R76695	[1]	Nut
24.	14H786	[1]	Nut	1/4"
25.	AT151111	[1]	Antenna Cable
26.	T74952	[1]	Grommet
27.	AT150707	[1]	Wiring Harness
28.	T134874	[7]	Self-Locking Screw
29.	AT191243	[1]	Radio Speaker WRG Harness
30.	12H310	[1]	Lock Washer	3/8"
31.	AT178643	[1]	Radio	(FOR USE WITH CAB ONLY)
