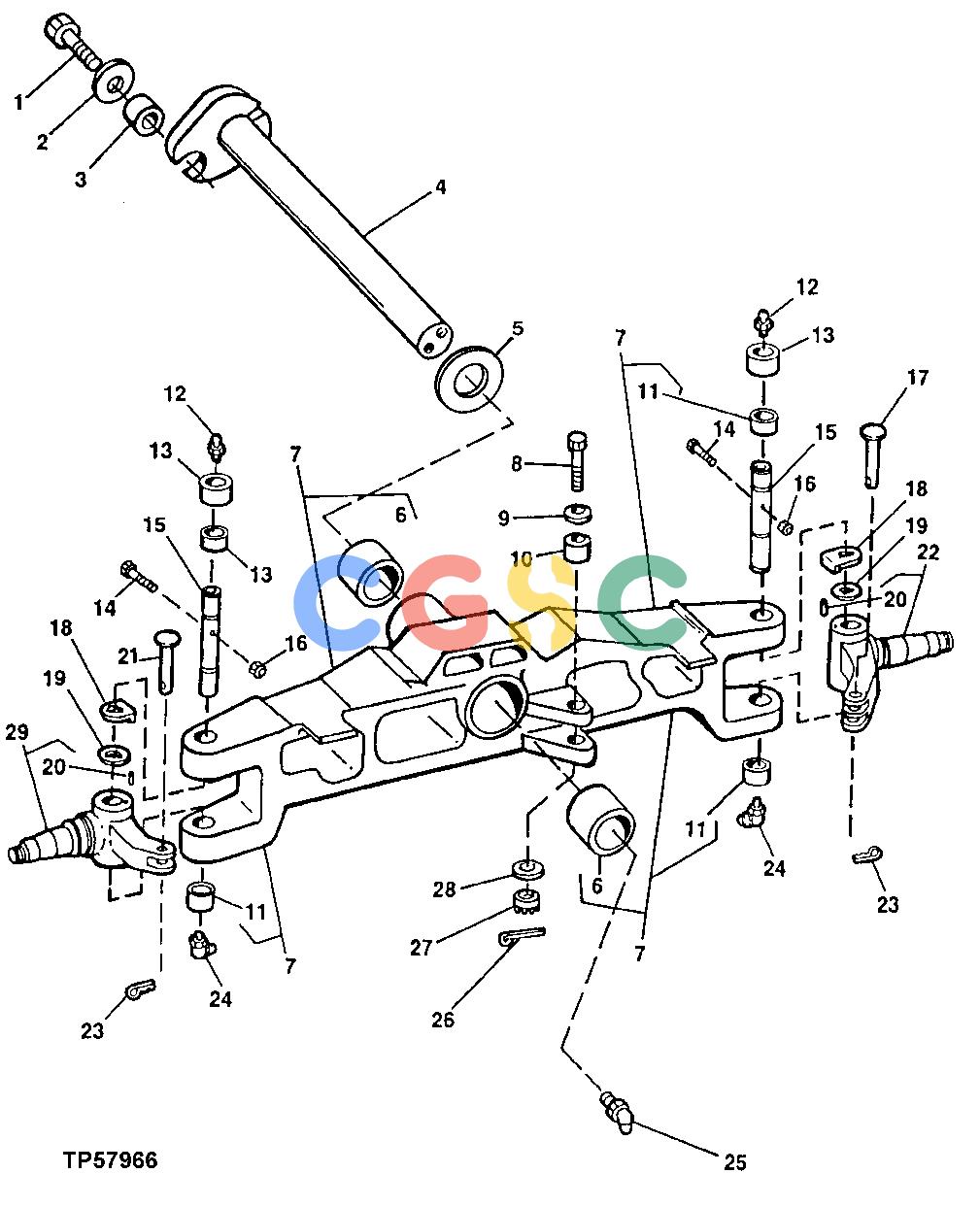

Pos.	Part No	Qty	Parts name	Comments
1.	19M7488	[1]	Cap Screw	M16 X 40
2.	T119912	[1]	Washer
3.	T18145	[1]	Bushing
4.	AT164442	[2]	Pin
5.	R46973	[4]	Thrust Washer
6.	T140211	[2]	Bushing
7.	T154594	[1]	Front Axle	(SUB FOR AT169654) (AT303094 NLA)
8.	19M6575	[1]	Cap Screw	M12 X 110
9.	24H1162	[2]	Washer	17/32" X 1-1/4" X 0.060"
10.	T100813	[1]	Bushing
11.	T140207	[4]	Bushing
12.	T162396	[2]	Lubrication Fitting
13.	T69027	[2]	Seal
14.	19H3445	[2]	Cap Screw	3/8" X 3-3/4"
15.	T184816	[2]	Kingpin
16.	T11234	[2]	Lock Nut
17.	T69355	[1]	Pin
18.	T69364	[2]	Thrust Washer
19.	T69363	[2]	Thrust Washer
20.	34M7117	[2]	Spring Pin	5 X 10 MM
21.	T69354	[1]	Pin
22.	AT182387	[1]	Knuckle	(MARKED T82851)
23.	11M7030	[2]	Cotter Pin	5 X 40 MM
24.	T162396	[2]	Lubrication Fitting
25.	JD7838	[2]	Adapter Fitting
26.	11M7086	[1]	Cotter Pin	2.500 X 50 MM
27.	14M7184	[1]	Nut	M12
28.	24H1162	[2]	Washer	17/32" X 1-1/4" X 0.060"
29.	AT182388	[1]	Knuckle	(MARKED T82852)
