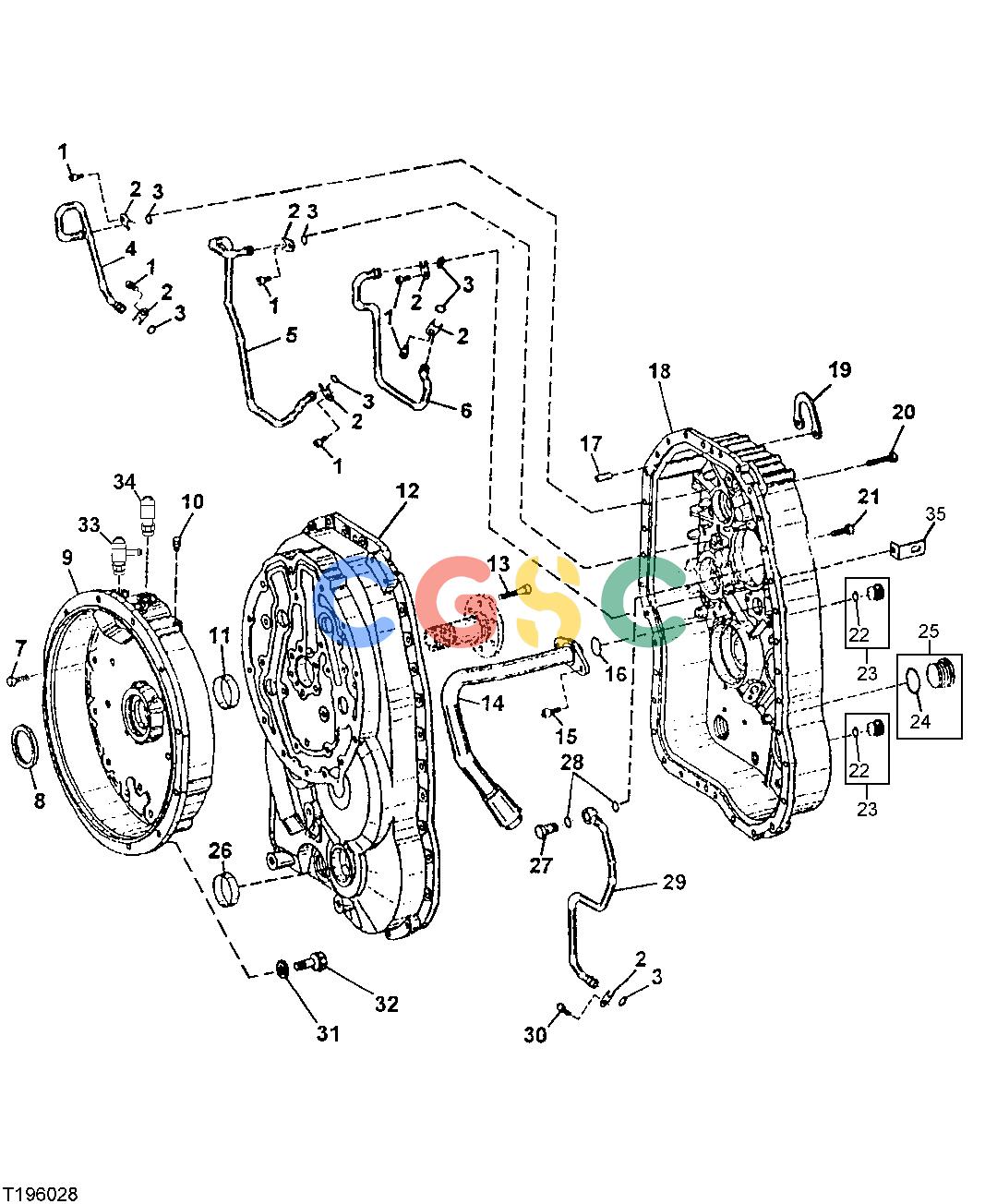

约翰迪尔零件查询410G - BACKHOE, LOADER Transmission Housing (Power Shift)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
915 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T164648
|
[6] |
Cap Screw
|
|
| 2. |
T164573
|
[6] |
Plate
|
|
| 3. |
T161218
|
[6] |
O-Ring
|
|
| 4. |
AT184060
|
[1] |
Oil Line
|
|
| 5. |
AT184061
|
[1] |
Oil Line
|
|
| 6. |
AT184062
|
[1] |
Oil Line
|
|
| 7. |
T164660
|
[24] |
Screw
|
|
| 8. |
AT179316
|
[1] |
Seal
|
|
| 9. |
T164659
|
[1] |
Housing
|
|
| 10. |
T116918
|
[1] |
Breather
|
|
| 11. |
T164665
|
[1] |
Bushing
|
|
| 12. |
T164657
|
[1] |
Housing
|
|
| 13. |
T164666
|
[6] |
Cap Screw
|
|
| 14. |
AT184059
|
[1] |
Line
|
|
| 15. |
T161182
|
[2] |
Cap Screw
|
|
| 16. |
T161181
|
[1] |
O-Ring
|
|
| 17. |
T164662
|
[2] |
Pin
|
|
| 18. |
T164658
|
[1] |
Housing
|
|
| 18. |
T164658
|
[1] |
Housing
|
|
| 19. |
T159567
|
[1] |
Plate
|
|
| 20. |
T164661
|
[6] |
Screw
|
|
| 21. |
T164660
|
[28] |
Screw
|
|
| 22. |
H81744
|
[2] |
O-Ring
|
|
| 23. |
T159565
|
[2] |
Plug
|
|
| 24. |
U13639
|
[1] |
O-Ring
|
|
| 25. |
AT185791
|
[1] |
Plug
|
|
| 26. |
T159683
|
[1] |
Cover
|
|
| 27. |
T164703
|
[1] |
Cap Screw
|
|
| 28. |
T164704
|
[1] |
O-Ring
|
|
| 29. |
AT183995
|
[1] |
Oil Line
|
|
| 30. |
T164648
|
[1] |
Cap Screw
|
|
| 31. |
24M7239
|
[12] |
Washer
|
|
| 32. |
19M7662
|
[12] |
Cap Screw
|
|
| 33. |
AT186237
|
[1] |
Tee Fitting
|
|
| 33. |
R26375
|
[1] |
O-Ring
|
|
| 34. |
AH64349
|
[1] |
Hose Fitting
|
|
| 34. |
R26375
|
[1] |
O-Ring
|
|
| 35. |
T164671
|
[2] |
Bracket
|
|
| 35. |
R73975
|
[2] |
Bracket
|
|
