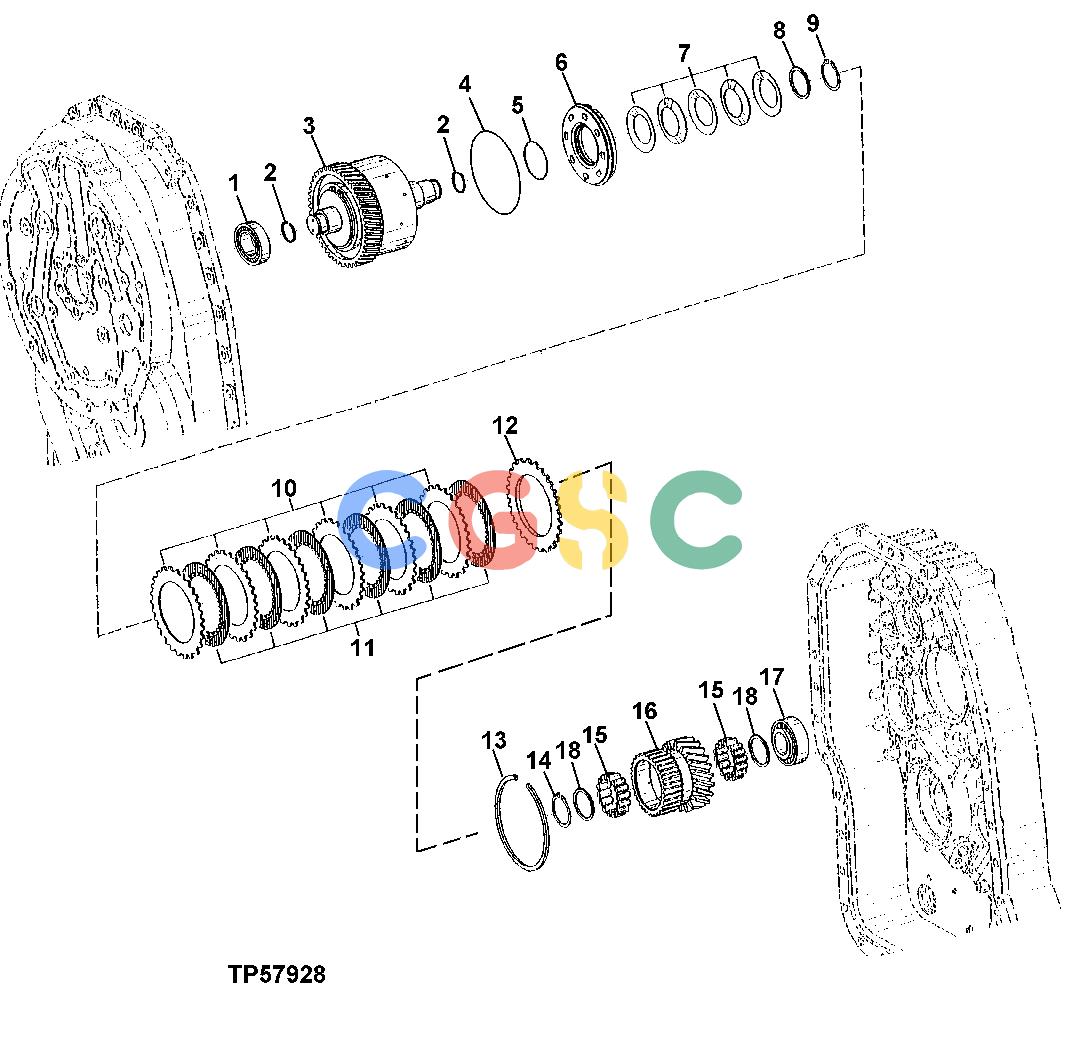

约翰迪尔零件查询410G - BACKHOE, LOADER Second Gear Clutch AssemblyEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
629 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT179472
|
[1] |
Tapered Roller Bearing
|
|
| 2. |
T158742
|
[2] |
Ring
|
|
| 3. |
AT184053
|
[1] |
Drum
|
|
| 4. |
T158739
|
[1] |
Ring
|
|
| 5. |
T158743
|
[1] |
Ring
|
|
| 6. |
AT364084
|
[1] |
Piston
|
|
| 7. |
T158775
|
[5] |
Disk Spring
|
|
| 8. |
T164712
|
[1] |
Shim
|
|
| 9. |
40M7058
|
[1] |
Snap Ring
|
|
| 10. |
T158801
|
[6] |
Clutch Plate
|
|
| 11. |
T164626
|
[6] |
Disk
|
|
| 12. |
T161147
|
[1] |
Plate
|
|
| 13. |
T261408
|
[1] |
Snap Ring
|
|
| 13. |
T261410
|
[1] |
Snap Ring
|
|
| 13. |
T261411
|
[1] |
Snap Ring
|
|
| 13. |
T261413
|
[1] |
Snap Ring
|
|
| 13. |
T261414
|
[1] |
Snap Ring
|
|
| 14. |
40M7058
|
[1] |
Snap Ring
|
|
| 15. |
AT185793
|
[2] |
Roller
|
|
| 16. |
T164643
|
[1] |
Gear
|
|
| 17. |
AT184052
|
[1] |
Roller Bearing
|
|
| 18. |
T166062
|
[2] |
Snap Ring
|
|
