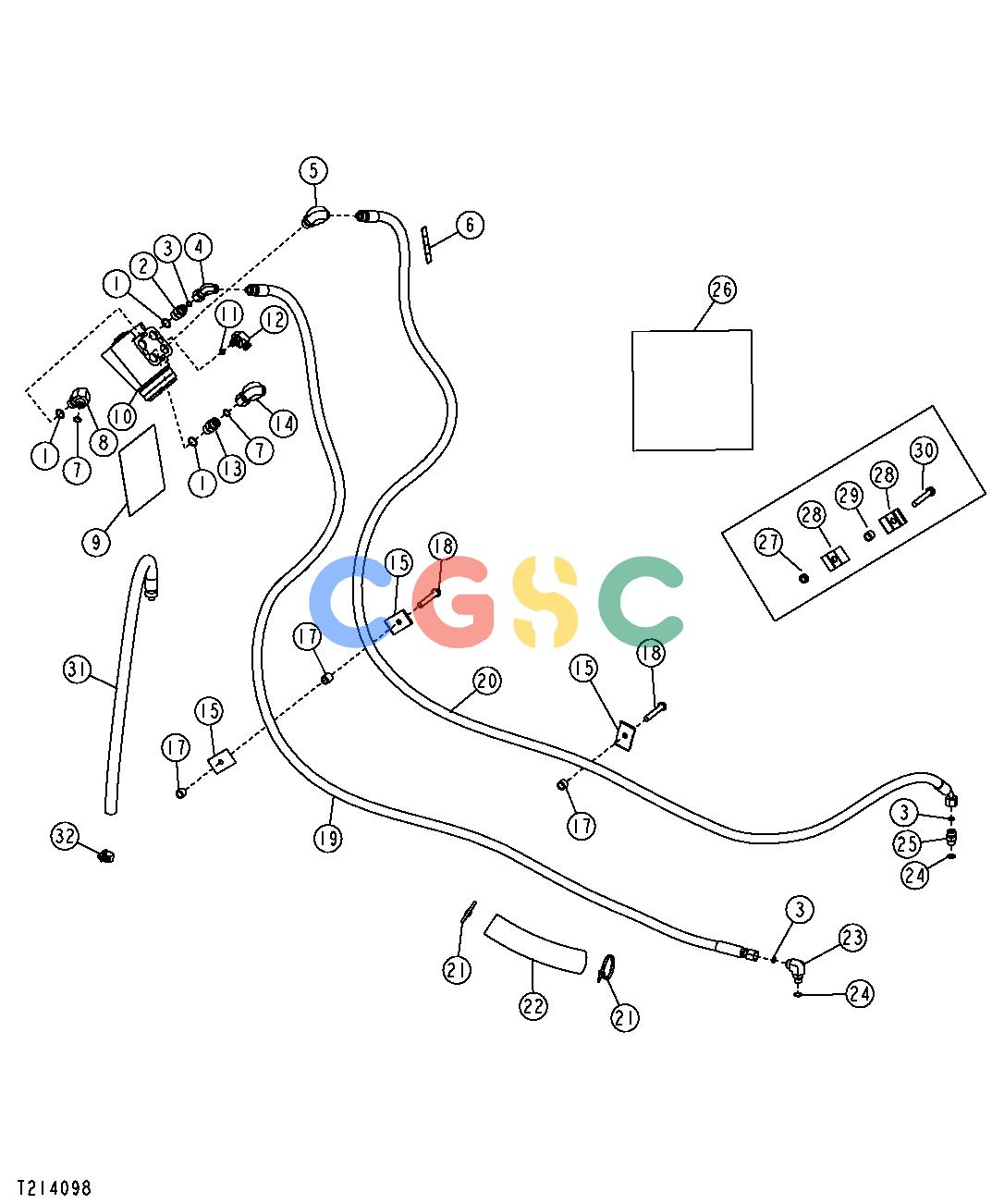

Pos.	Part No	Qty	Parts name	Comments
1.	R26375	[4]	O-Ring
2.	38H1171	[1]	Adapter Fitting
3.	T77613	[3]	O-Ring
4.	AT195201	[1]	Elbow Fitting	-06
5.	AT195202	[1]	Elbow Fitting	(-06)
6.	T184320	[1]	Label
7.	T77857	[2]	O-Ring
8.	38H1005	[1]	Elbow Fitting
9.	T191425	[1]	Label
10.	AT309882	[1]	Manual Hydraulic Valve	(SUB FOR AT192243)
10.	AT316249	[1]	Seal Kit	(SUB FOR AT198090)
11.	R28782	[1]	O-Ring
12.	AT188010	[1]	Elbow Fitting	-06
13.	38H1161	[1]	Adapter Fitting
14.	AT195203	[1]	Elbow Fitting	-08
15.	R46919	[4]	Half Clamp
15.	R46919	[3]	Half Clamp
16.	28H3394	[3]	Bushing	0.493" X 0.675" X 1/2"
17.	28H3383	[1]	Bushing	0.493" X 0.675" X 3/4"
17.	28H3421	[3]	Spacer	0.493" X 0.675" X 7/16"
18.	19M7742	[2]	Cap Screw	M10 X 65
18.	19M8600	[2]	Cap Screw	M10 X 50
19.	AT188383	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
19.	62H1042	[1]	Adapter Fitting	STC
20.	AT188382	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
20.	62H1042	[1]	Adapter Fitting	STC
21.	R44302	[2]	Tie Band
22.	........	[1]	Hose	254 MM (MAKE FROMT78606) (CTL)
23.	38H1004	[1]	Elbow Fitting
24.	R26448	[2]	O-Ring
25.	38H1160	[1]	Adapter Fitting
26.	AT193365	[1]	Seal Kit	STC REPAIR (-06)
26.	AT193366	[1]	Seal Kit	STC REPAIR (-08)
27.	14M7273	[1]	Nut	M8
28.	R27491	[2]	Clamp
29.	24M7106	[2]	Washer	10 X 18 X 2.500 MM
30.	19M7881	[1]	Screw	M8 X 20
31.	AT184900	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1043 AND T77857)
32.	AR21836	[1]	Clamp
