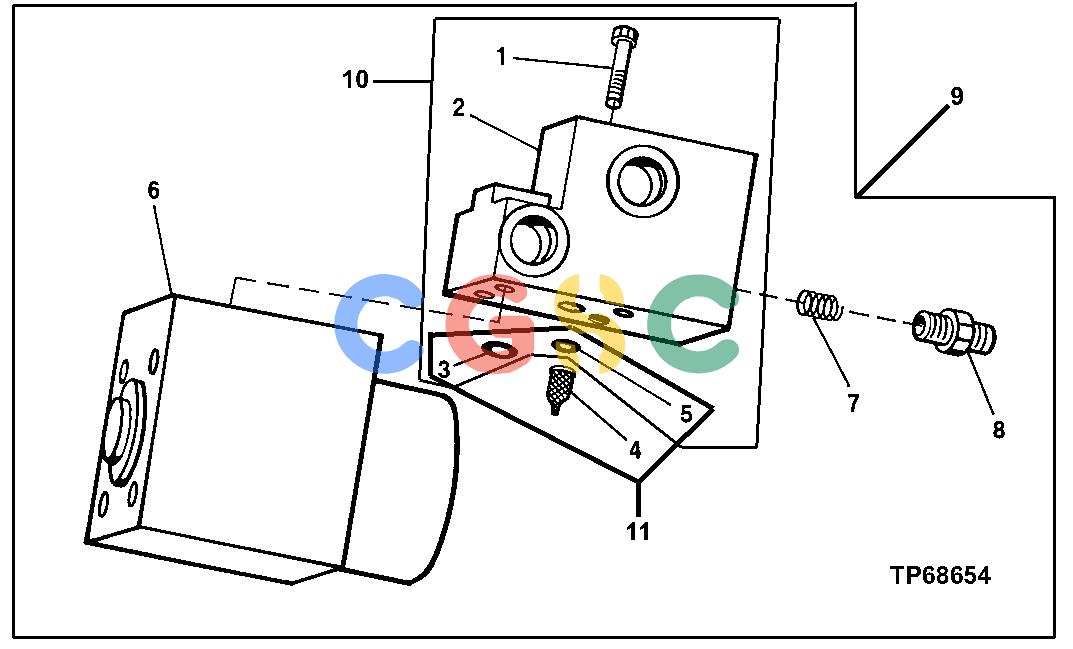

约翰迪尔零件查询410G - BACKHOE, LOADER Priority Valve Seal Kit ( - 911131)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
363 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[2] |
Cap Screw
|
|
| 2. |
........
|
[1] |
Valve
|
|
| 3. |
N130510
|
[4] |
O-Ring
|
|
| 4. |
........
|
[1] |
Screen
|
|
| 5. |
........
|
[1] |
O-Ring
|
|
| 6. |
........
|
[1] |
Valve
|
|
| 6. |
AT175622
|
[1] |
Seal
|
|
| 6. |
A3917R
|
[1] |
O-Ring
|
|
| 6. |
B3690R
|
[1] |
O-Ring
|
|
| 6. |
C15104
|
[1] |
Seal
|
|
| 6. |
R10093
|
[1] |
O-Ring
|
|
| 6. |
T152288
|
[3] |
O-Ring
|
|
| 6. |
AT167183
|
[1] |
Seal Kit
|
|
| 7. |
T161621
|
[1] |
Spring
|
|
| 8. |
AT180122
|
[1] |
Fitting
|
|
| 9. |
AT172609
|
[1] |
Manual Hydraulic Valve
|
|
| 10. |
........
|
[1] |
Kit
|
|
| 11. |
AT178646
|
[1] |
Seal Kit
|
|
