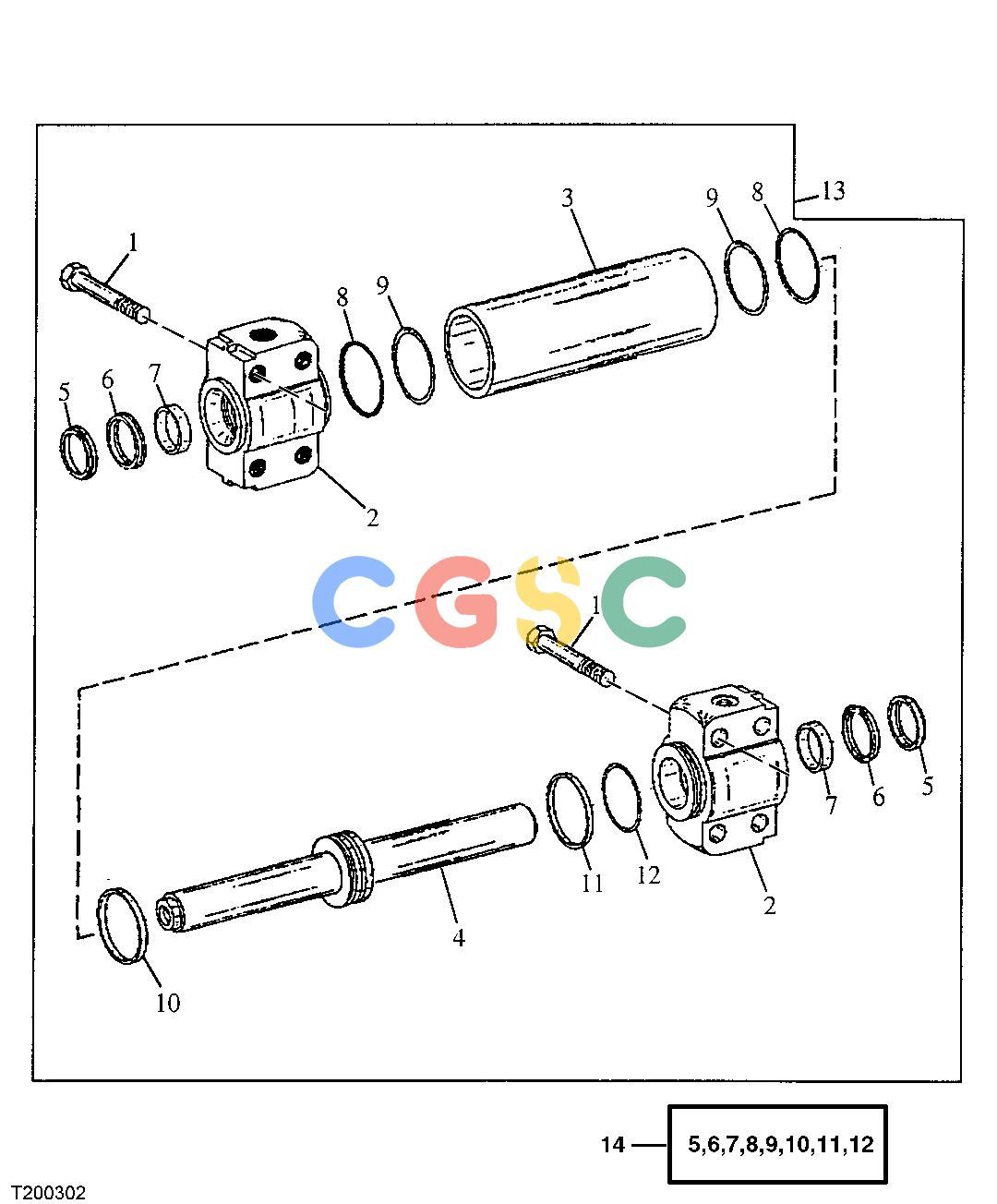

约翰迪尔零件查询410G - BACKHOE, LOADER Steering Cylinder (w/ MFWD)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
270 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M8632
|
[8] |
Cap Screw
|
|
| 2. |
........
|
[2] |
Hydraulic Cylinder Cap
|
|
| |
........
|
[2] |
Hydraulic Cylinder Cap
|
|
| 3. |
T153742
|
[1] |
Hydraulic Cylinder Barrel
|
|
| |
........
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 4. |
AT195573
|
[1] |
Rod
|
|
| |
........
|
[1] |
Rod
|
|
| 5. |
........
|
[2] |
Seal
|
|
| 6. |
........
|
[2] |
Seal
|
|
| 7. |
........
|
[2] |
Guide
|
|
| 8. |
........
|
[2] |
O-Ring
|
|
| 9. |
........
|
[2] |
Ring
|
|
| 10. |
........
|
[1] |
Seal
|
|
| 11. |
........
|
[1] |
Guide
|
|
| 12. |
........
|
[1] |
O-Ring
|
|
| 13. |
AT195570
|
[1] |
Cylinder
|
|
| |
AT280334
|
[1] |
Cylinder
|
|
| 14. |
T153744
|
[1] |
Hydraulic Cylinder Kit
|
|
| |
AT301906
|
[1] |
Hydraulic Cylinder Kit
|
|
