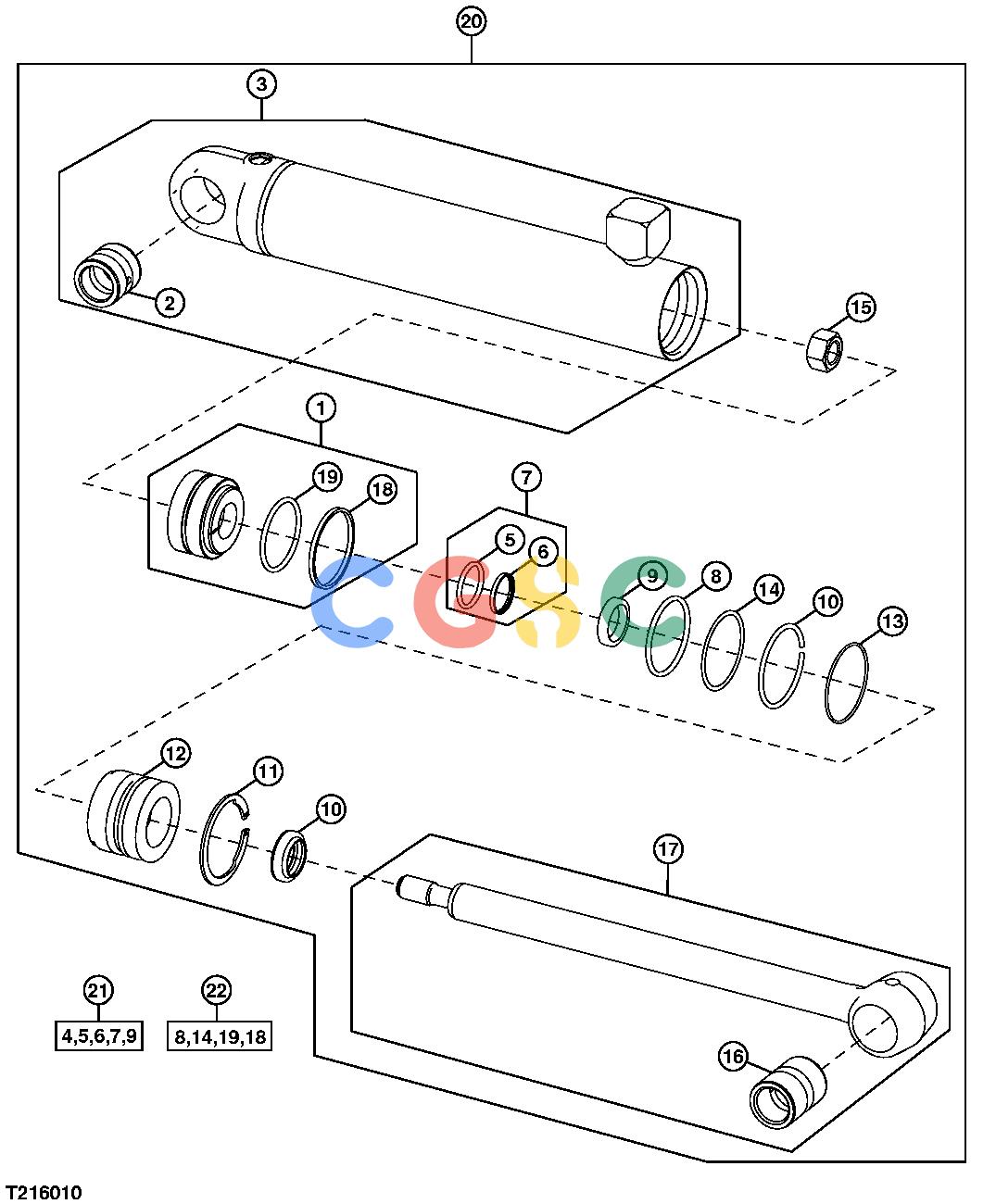

约翰迪尔零件查询410G - BACKHOE, LOADER Replacement Steering Cylinder without MFWD (911132 - )EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
244 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AH135785
|
[1] |
Piston
|
|
| 2. |
R81854
|
[1] |
Bushing
|
|
| 3. |
AH205053
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 4. |
AH151380
|
[1] |
Seal
|
|
| 5. |
H158674
|
[1] |
Seal
|
|
| 6. |
H158675
|
[1] |
Seal
|
|
| 7. |
AH151381
|
[1] |
Seal
|
|
| 8. |
H155964
|
[1] |
O-Ring
|
|
| 9. |
H158676
|
[1] |
Seal
|
|
| 10. |
H164204
|
[1] |
Snap Ring
|
|
| 11. |
H164205
|
[1] |
Snap Ring
|
|
| 12. |
H218040
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 13. |
M44162
|
[1] |
O-Ring
|
|
| 14. |
R78393
|
[1] |
Back-Up Ring
|
|
| 15. |
H170534
|
[1] |
Nut
|
|
| 16. |
R72700
|
[1] |
Bushing
|
|
| 17. |
RE22415
|
[1] |
Hydraulic Cylinder Rod
|
|
| 18. |
R92208
|
[1] |
Packing
|
|
| 19. |
R30200
|
[1] |
O-Ring
|
|
| 20. |
AH205051
|
[1] |
Hydraulic Cylinder
|
|
| 20. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| 20. |
T162396
|
[1] |
Lubrication Fitting
|
|
| 21. |
AH149810
|
[1] |
Hydraulic Cylinder Kit
|
|
| 22. |
RE30100
|
[1] |
Hydraulic Cylinder Kit
|
|
