约翰迪尔零件查询410G - BACKHOE, LOADER Brake Valve and PedalsEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 997 次

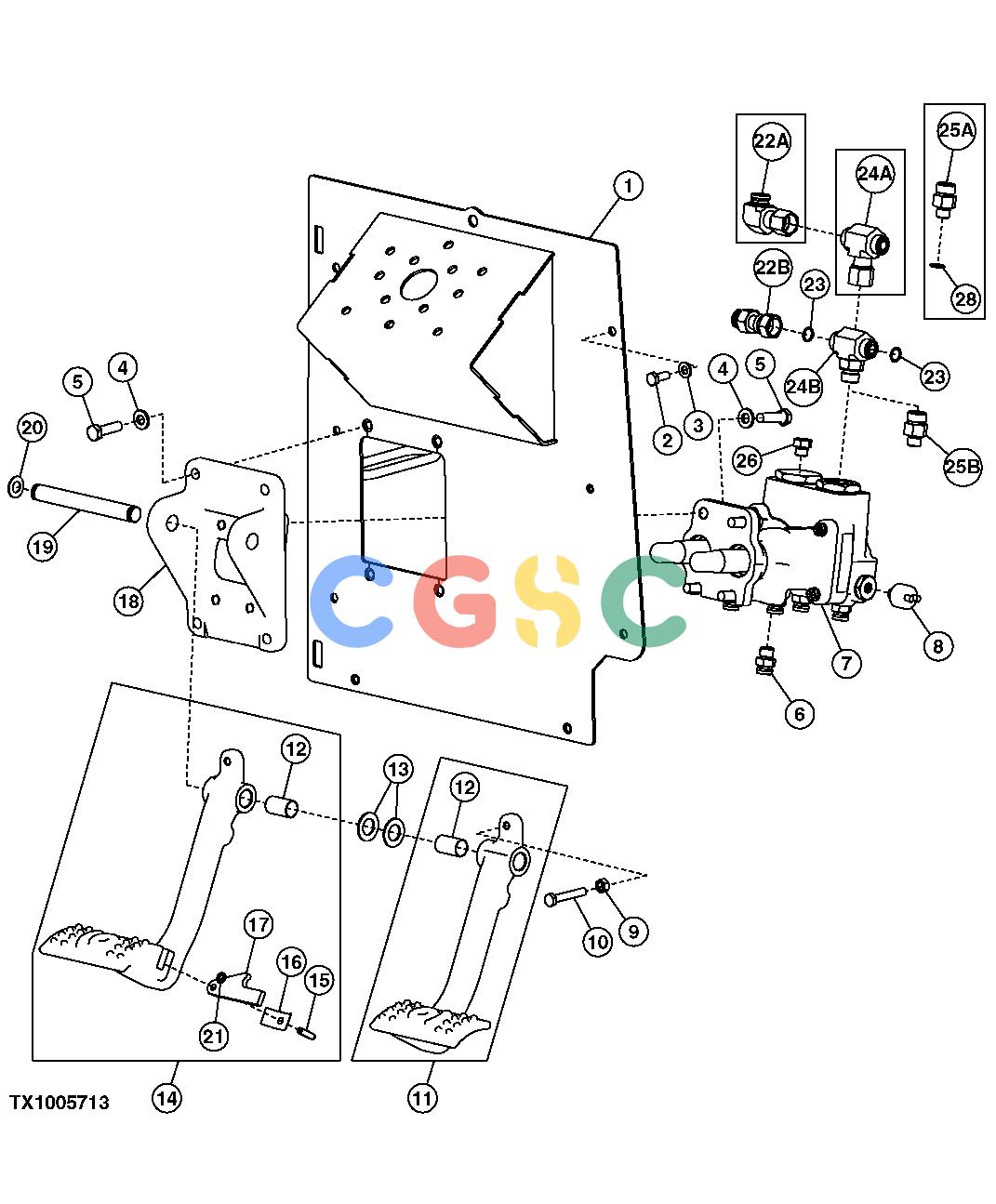

Pos.	Part No	Qty	Parts name	Comments
1.	AT186839	[1]	Support
2.	19M7881	[4]	Screw	M8 X 20
3.	24M7238	[4]	Washer	8.700 X 17 X 2 MM
4.	24M7239	[8]	Washer	10.700 X 21 X 2.500 MM
5.	19M7550	[8]	Cap Screw	M10 X 35
6.	AT187666	[7]	Adapter Fitting
7.	AT304761	[1]	Manual Hydraulic Valve	(SUB FOR AT184578) (APPL)
8.	R32548	[2]	Pressure Switch	BRAKE LIGHT SWITCH
9.	14M7273	[2]	Nut	M8
10.	19M7164	[2]	Cap Screw	M8 X 50
11.	AT393829	[1]	Pedal	(AT336436 AND AT184592 NLA) (RH)
12.	B177R	[1]	Bushing
13.	24H1381	[2]	Washer	23/32" X 1-1/4" X 0.060"
14.	AT393831	[1]	Pedal	(AT336397 AND AT184579 NLA) (LH)
15.	34M7197	[1]	Spring Pin	6 X 16 MM (SUB FOR 34H212)
16.	R50034	[1]	Leaf Spring
17.	R221354	[1]	Arm	(SUB FOR R50879)
18.	T227394	[1]	Pedal	(SUB FOR T166171)
19.	T165282	[1]	Pin Fastener
20.	F2863R	[2]	Snap Ring
21.	24H1285	[AR]	Washer	17/64" X 7/16" X 0.065"
22A.	AT195203	[1]	Elbow Fitting
22B.	AT280459	[1]	Adapter Fitting
23.	T77857	[2]	O-Ring
24A.	38H1039	[1]	Tee Fitting
24B.	38H1017	[1]	Tee Fitting
25A.	AT187666	[1]	Adapter Fitting	STC
25B.	38H1173	[1]	Adapter Fitting
26.	R27218	[1]	Fitting Plug
27.	T77857	[1]	O-Ring
27.	R26375	[1]	O-Ring
28.	R26448	[1]	O-Ring
