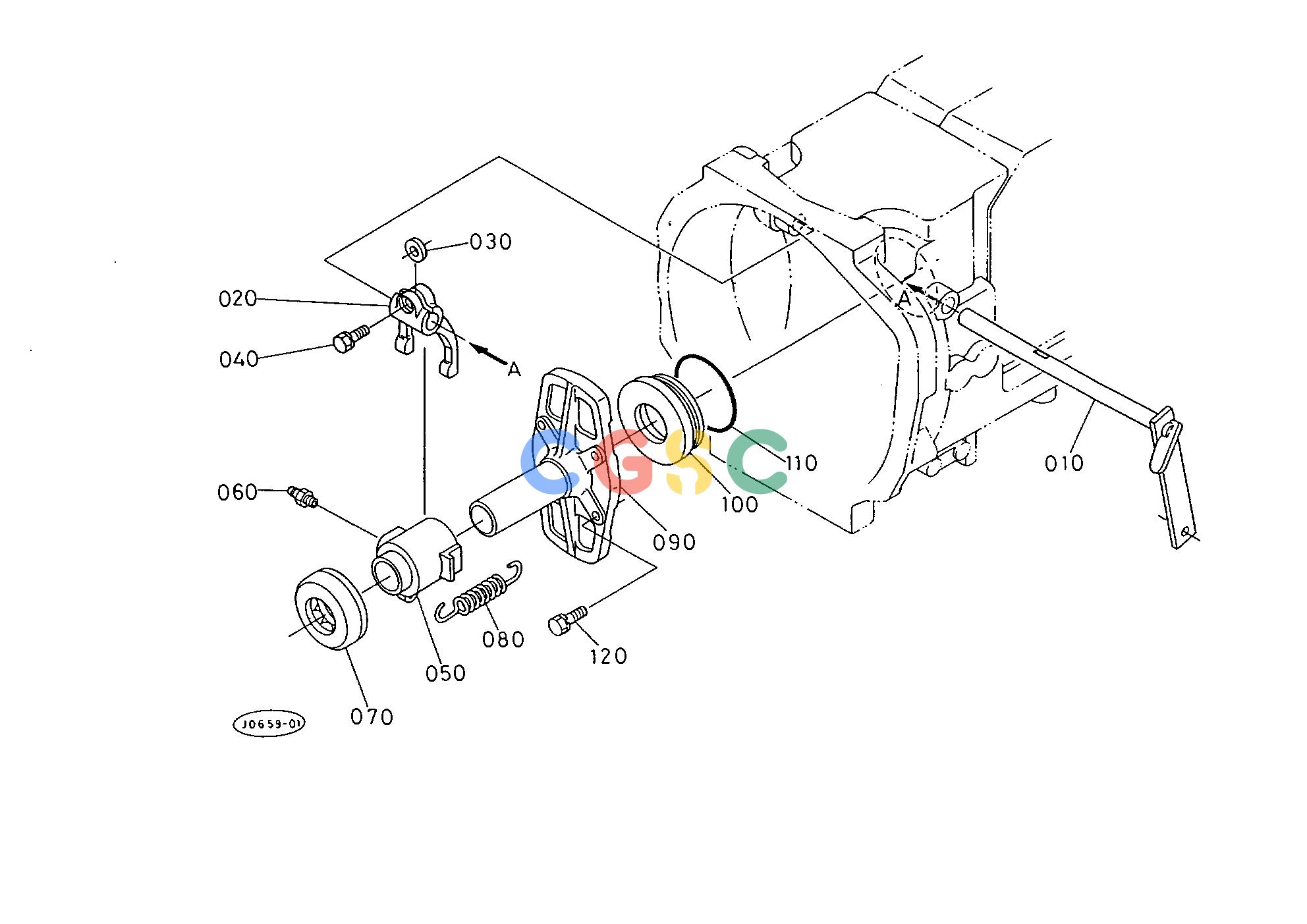

久保田零件查询T04802 CLUTCH LEVER(SC) CLUTCHEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
323 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3133114710
|
[1] |
LEVER CLUTCH
|
1.1550(lbs); 0.525
|
| 020. |
3135114720
|
[1] |
FORK CLUTCH RELEASE
|
0.5940(lbs); 0.270
|
| 030. |
3115014780
|
[1] |
KEY FORK
|
0.0066(lbs); 0.003
|
| 040. |
0112350822
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 050. |
3722014810
|
[1] |
HUB CLUTCH RELEASE
|
0.0000(lbs); 0.000
|
| 060. |
0661310010
|
[1] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 070. |
0849000001
|
[1] |
BEARING THRUST BALL
|
0.4994(lbs); 0.227
|
| 080. |
3415014840
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 090. |
3715015410
|
[1] |
CASE PROPELLERSHAFT
|
0.0000(lbs); 0.000
|
| 100. |
3715015420
|
[1] |
SPACER
|
0.2310(lbs); 0.105
|
| 110. |
0481150650
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 120. |
0112350830
|
[4] |
BOLT
|
0.0330(lbs); 0.015
|
