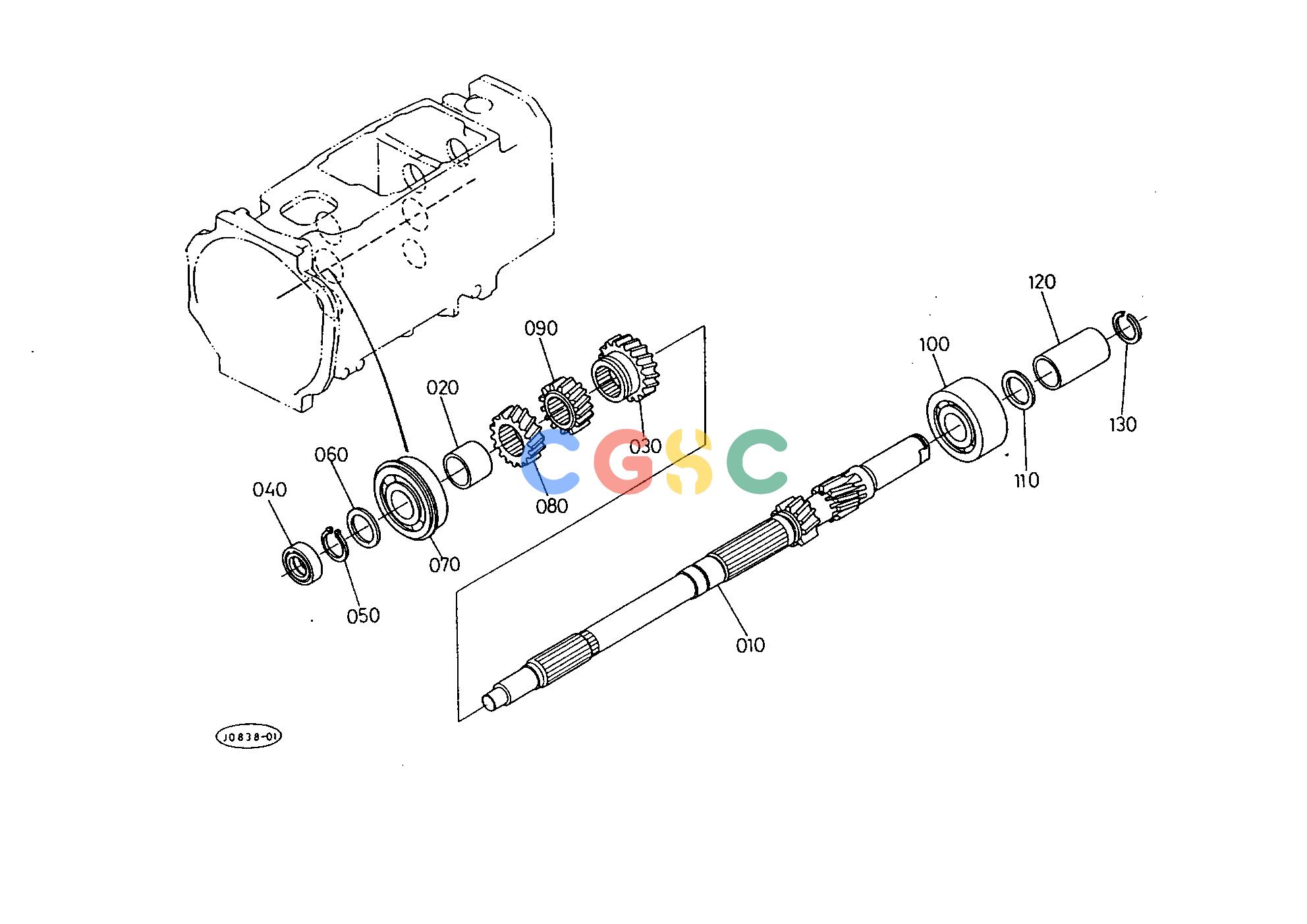

久保田零件查询T05202 MAIN SHAFT(SC) TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135121510
|
[1] |
SHAFT
|
4.6200(lbs); 2.100
|
| 020. |
3135121560
|
[1] |
COLLAR
|
0.1320(lbs); 0.060
|
| 030. |
3242021520
|
[1] |
GEAR
|
0.7480(lbs); 0.340
|
| 040. |
0950255210
|
[1] |
SEAL OIL
|
0.0550(lbs); 0.025
|
| 050. |
3715021551
|
[1] |
CIR-CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
| 060. |
3415021560
|
[1] |
WASHER
|
0.0110(lbs); 0.005
|
| 070. |
0815106305
|
[1] |
BEARING BALL
|
0.5126(lbs); 0.233
|
| 080. |
3243021540
|
[1] |
GEAR
|
0.3960(lbs); 0.180
|
| 090. |
3243021530
|
[1] |
GEAR(SC)
|
0.3740(lbs); 0.170
|
| 100. |
0824103206
|
[1] |
BEARING BALL
|
0.6644(lbs); 0.302
|
| 110. |
3415021560
|
[1] |
WASHER
|
0.0110(lbs); 0.005
|
| 120. |
3243021600
|
[1] |
COLLAR(SC)
|
0.3300(lbs); 0.150
|
| 130. |
3843021550
|
[1] |
CIR-CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
