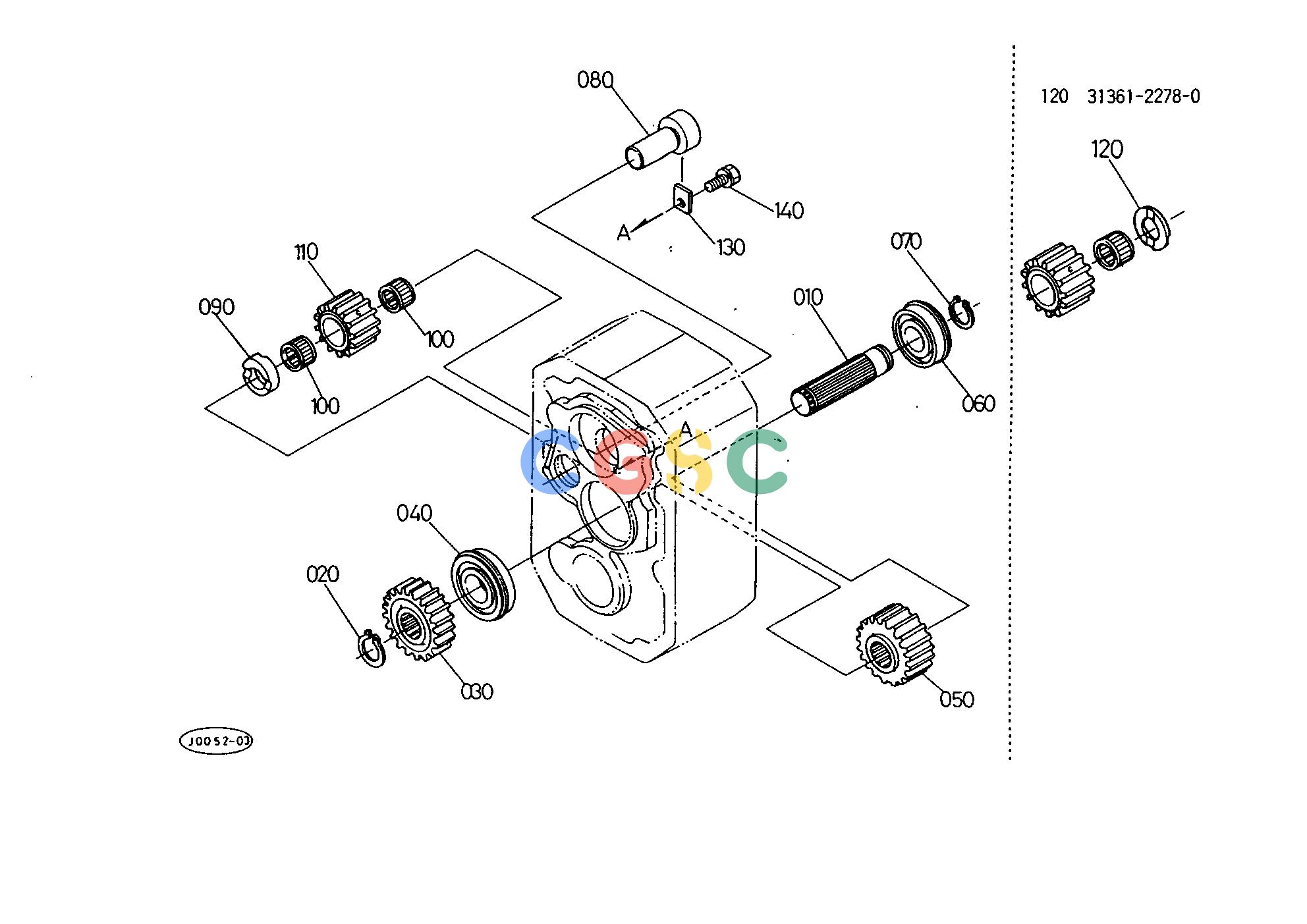

久保田零件查询T06000 REVERSE SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3136122610
|
[1] |
SHAFT REVERSE
|
0.7480(lbs); 0.340
|
| 020. |
3715021551
|
[1] |
CIR-CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
| 030. |
3136122620
|
[1] |
GEAR
|
0.0000(lbs); 0.000
|
| 040. |
3136122530
|
[1] |
BEARING ROLLER
|
0.5940(lbs); 0.270
|
| 050. |
3136122630
|
[1] |
GEAR
|
1.1440(lbs); 0.520
|
| 060. |
3136122640
|
[1] |
BEARING BALL
|
0.3960(lbs); 0.180
|
| 070. |
0461200220
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 080. |
3136122710
|
[1] |
SHAFT REVERSE
|
0.0000(lbs); 0.000
|
| 080. |
3136122712
|
[1] |
SHAFT REVERSE
|
0.5720(lbs); 0.260
|
| 090. |
3136122770
|
[1] |
COLLAR
|
0.0550(lbs); 0.025
|
| 100. |
0882202617
|
[2] |
BEARING NEEDLE
|
0.0440(lbs); 0.020
|
| 110. |
3136122720
|
[1] |
GEAR
|
0.0000(lbs); 0.000
|
| 120. |
3136122780
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 130. |
3526023210
|
[1] |
STOPPER
|
0.0110(lbs); 0.005
|
| 140. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
