久保田零件查询T09301 STEERING (MS) STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
192 次

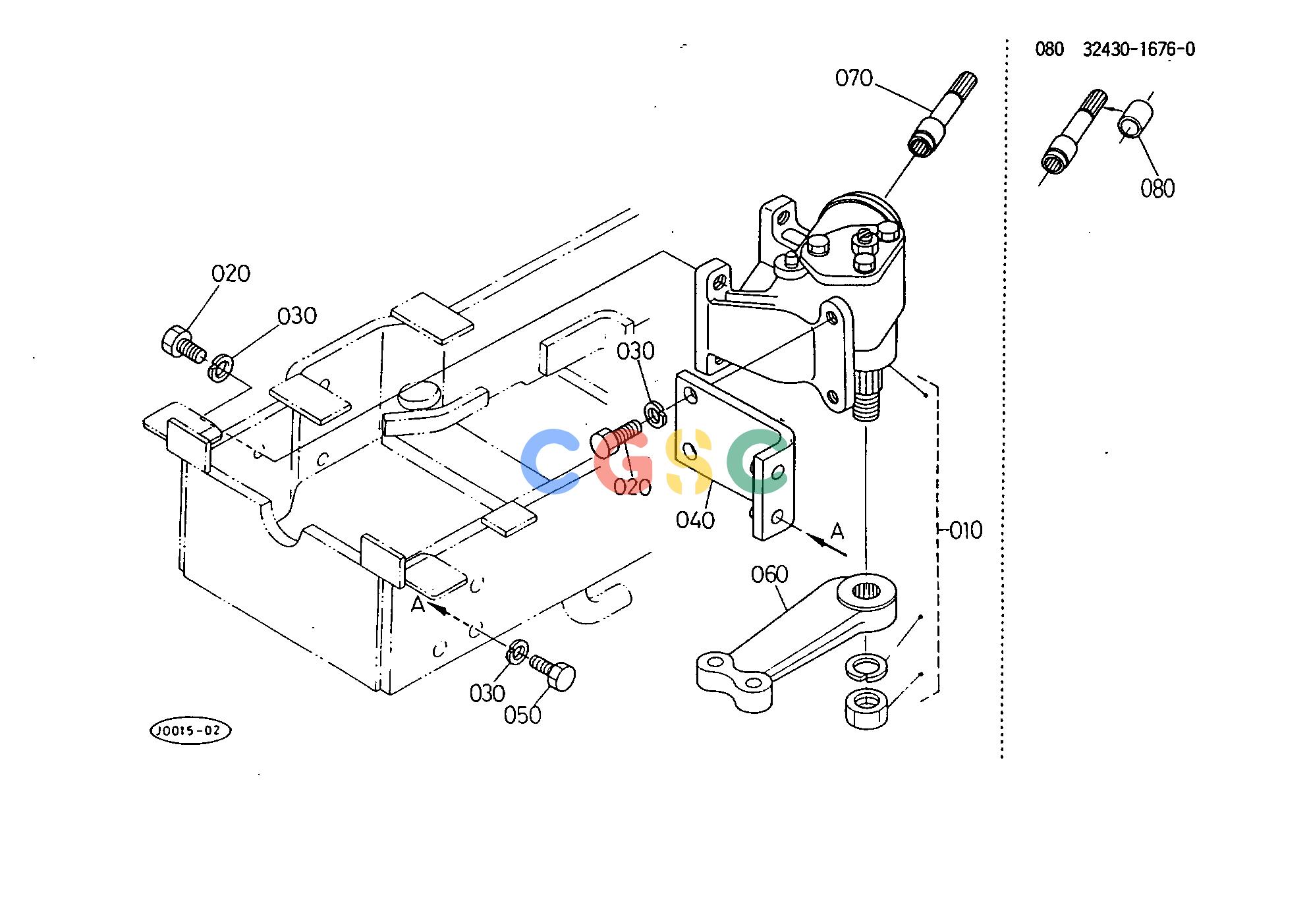

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135116103
|
[1] |
ASSY STEERING
|
0.0000(lbs); 0.000
|
| 010. |
3135116105
|
[1] |
ASSY STEERING
|
11.0000(lbs); 5.000
|
| 020. |
0117351430
|
[6] |
BOLT
|
0.1144(lbs); 0.052
|
| 030. |
0451250140
|
[8] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 040. |
3135116320
|
[1] |
SUPPORT STEERING
|
0.0000(lbs); 0.000
|
| 040. |
3135116324
|
[1] |
SUPPORT STEERING
|
2.4200(lbs); 1.100
|
| 050. |
0117351435
|
[2] |
BOLT
|
0.1232(lbs); 0.056
|
| 060. |
3135116350
|
[1] |
ARM PITMAN
|
1.9030(lbs); 0.865
|
| 070. |
3135116385
|
[1] |
SHAFT JOINT
|
0.4620(lbs); 0.210
|
| 080. |
3243016760
|
[1] |
PIPE PROTECT.
|
0.0066(lbs); 0.003
|
