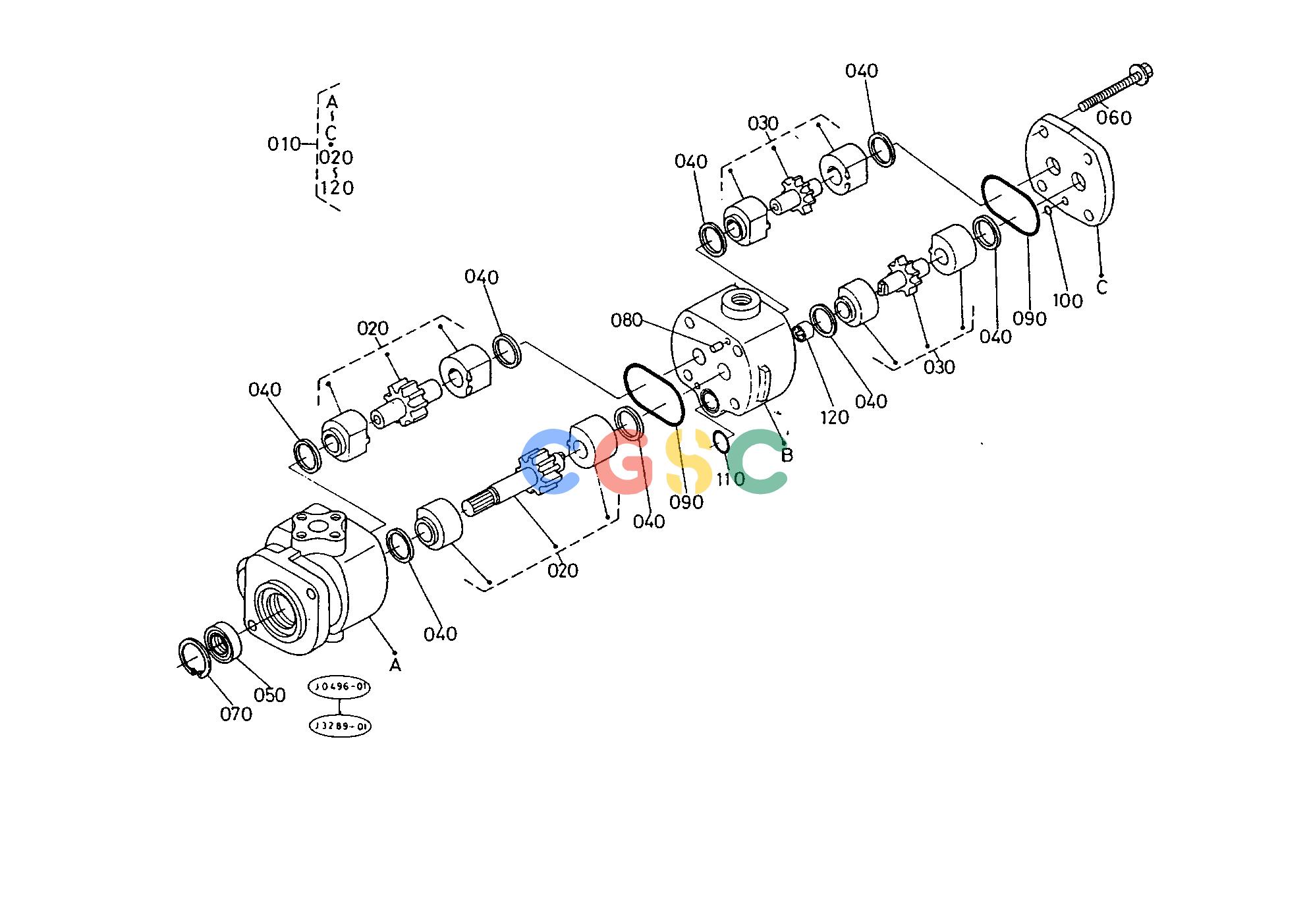

久保田零件查询T09902 HYDRAULIC PUMP(PS) [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135176300
|
[1] |
ASSY PUMP HYDRAULIC
|
6.4680(lbs); 2.940
|
| 020. |
3135176402
|
[1] |
COMP.GEAR HYD.PUMP
|
1.1000(lbs); 0.500
|
| 030. |
3135176502
|
[1] |
COMP.GEAR HYD.PUMP
|
0.6160(lbs); 0.280
|
| 040. |
3135176170
|
[8] |
RING METAL SEAL
|
0.0022(lbs); 0.001
|
| 040. |
3818076172
|
[8] |
SQUARE RING
|
0.0044(lbs); 0.002
|
| 050. |
3135176190
|
[1] |
SEAL OIL
|
0.0000(lbs); 0.000
|
| 050. |
3138176390
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 060. |
3135176480
|
[4] |
BOLT FLANGE
|
0.1100(lbs); 0.050
|
| 070. |
0461100300
|
[1] |
CIR-CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 080. |
0501200612
|
[2] |
PIN STRAIGHT
|
0.0066(lbs); 0.003
|
| 090. |
0481050550
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 100. |
0481000050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
3135176470
|
[1] |
COUPLING
|
0.0000(lbs); 0.000
|
| 120. |
3741076470
|
[1] |
COUPLING
|
0.0220(lbs); 0.010
|
