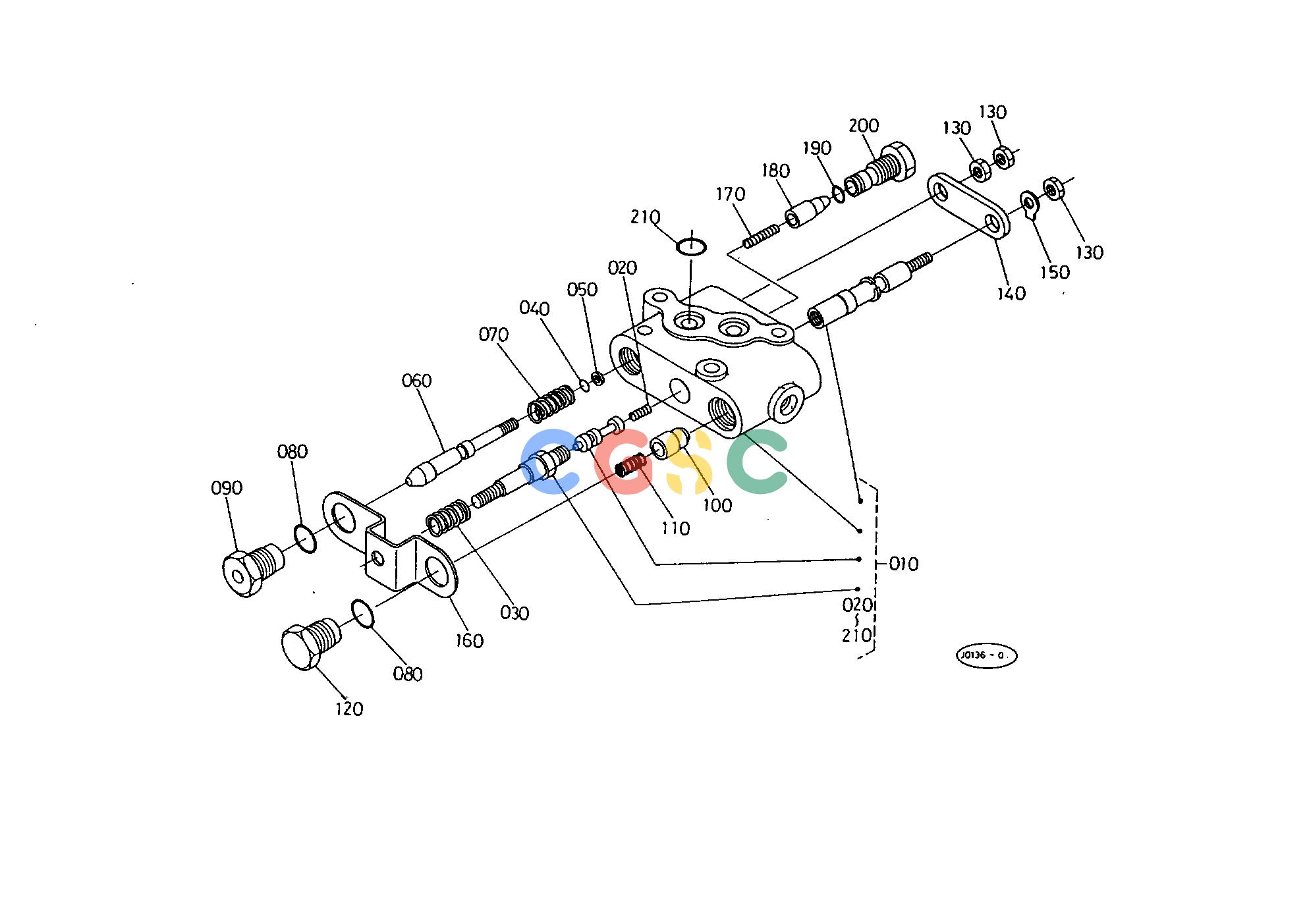

久保田零件查询T10502 CONTROL VALVE [COMPONENT PARTS] ## S.No.:L2250F;>=10110 L2250DT;>=50115 L2550F;>=10100 L2550DT;>=50107 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
916 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243039100
|
[1] |
ASSY VALVE CONTROL
|
3.5860(lbs); 1.630
|
| 020. |
3243039150
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 030. |
3243039160
|
[1] |
SPRING RETURN
|
0.0110(lbs); 0.005
|
| 040. |
0481100070
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
3715036630
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 060. |
3715036460
|
[1] |
POPPET
|
0.1056(lbs); 0.048
|
| 070. |
3715036450
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 080. |
0481100150
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3715036470
|
[1] |
PLUG SEAT
|
0.0880(lbs); 0.040
|
| 100. |
3715036480
|
[1] |
VALVE UNLOAD
|
0.0440(lbs); 0.020
|
| 110. |
3715036490
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 120. |
3715036520
|
[1] |
PLUG
|
0.0946(lbs); 0.043
|
| 130. |
0211250080
|
[3] |
NUT
|
0.0066(lbs); 0.003
|
| 140. |
3715036540
|
[1] |
PLATE
|
0.3190(lbs); 0.145
|
| 150. |
3715036560
|
[1] |
WASHER LOCK
|
0.0220(lbs); 0.010
|
| 160. |
3243039240
|
[1] |
PLATE
|
0.0990(lbs); 0.045
|
| 170. |
3715036580
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 180. |
3715036590
|
[1] |
VALVE CHECK
|
0.0330(lbs); 0.015
|
| 190. |
0481000090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
3715036440
|
[1] |
SEAT
|
0.0770(lbs); 0.035
|
| 210. |
0481000120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
