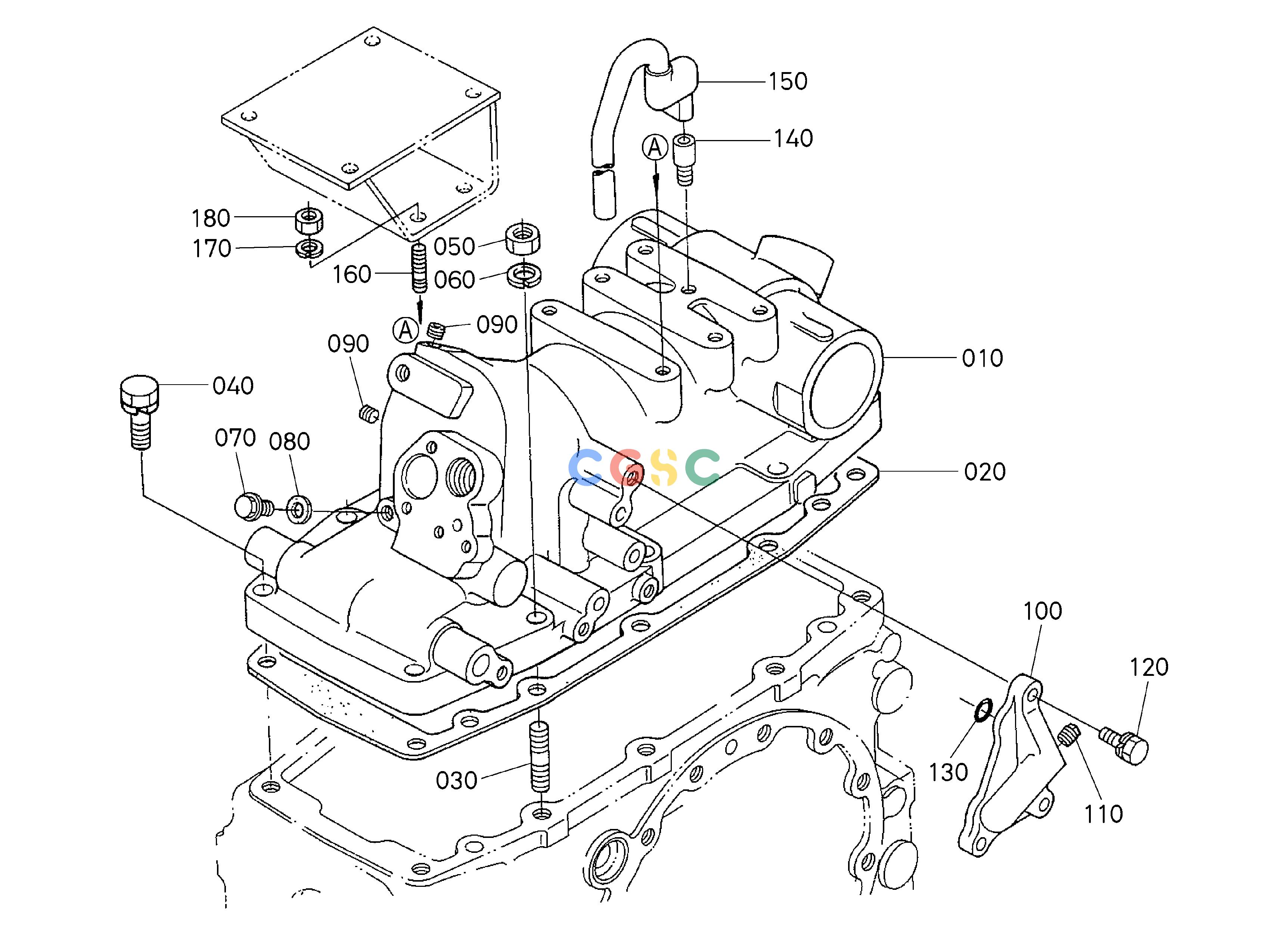

久保田零件查询T10900 HYDRAULIC CYLINDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3241037112
|
[1] |
CASE HYD.CYLINDER
|
46.2000(lbs); 21.000
|
| 020. |
3715037120
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
0157451240
|
[2] |
STUD
|
0.0990(lbs); 0.045
|
| 030. |
0157451245
|
[2] |
STUD
|
0.1122(lbs); 0.051
|
| 040. |
0113351245
|
[8] |
BOLT
|
0.1210(lbs); 0.055
|
| 050. |
0217650120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 060. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 070. |
3715036730
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 080. |
3715036720
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 090. |
3135137160
|
[3] |
PLUG
|
0.0066(lbs); 0.003
|
| 100. |
3135137280
|
[1] |
COVER CYL.LH
|
0.2640(lbs); 0.120
|
| 110. |
0631210010
|
[1] |
PLUG
|
0.0154(lbs); 0.007
|
| 120. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 130. |
0481000100
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
3620021610
|
[1] |
BREATHER
|
0.0176(lbs); 0.008
|
| 150. |
3243037140
|
[1] |
BREATHER
|
0.0880(lbs); 0.040
|
| 160. |
0151751020
|
[4] |
STUD
|
0.0418(lbs); 0.019
|
| 170. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 180. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
