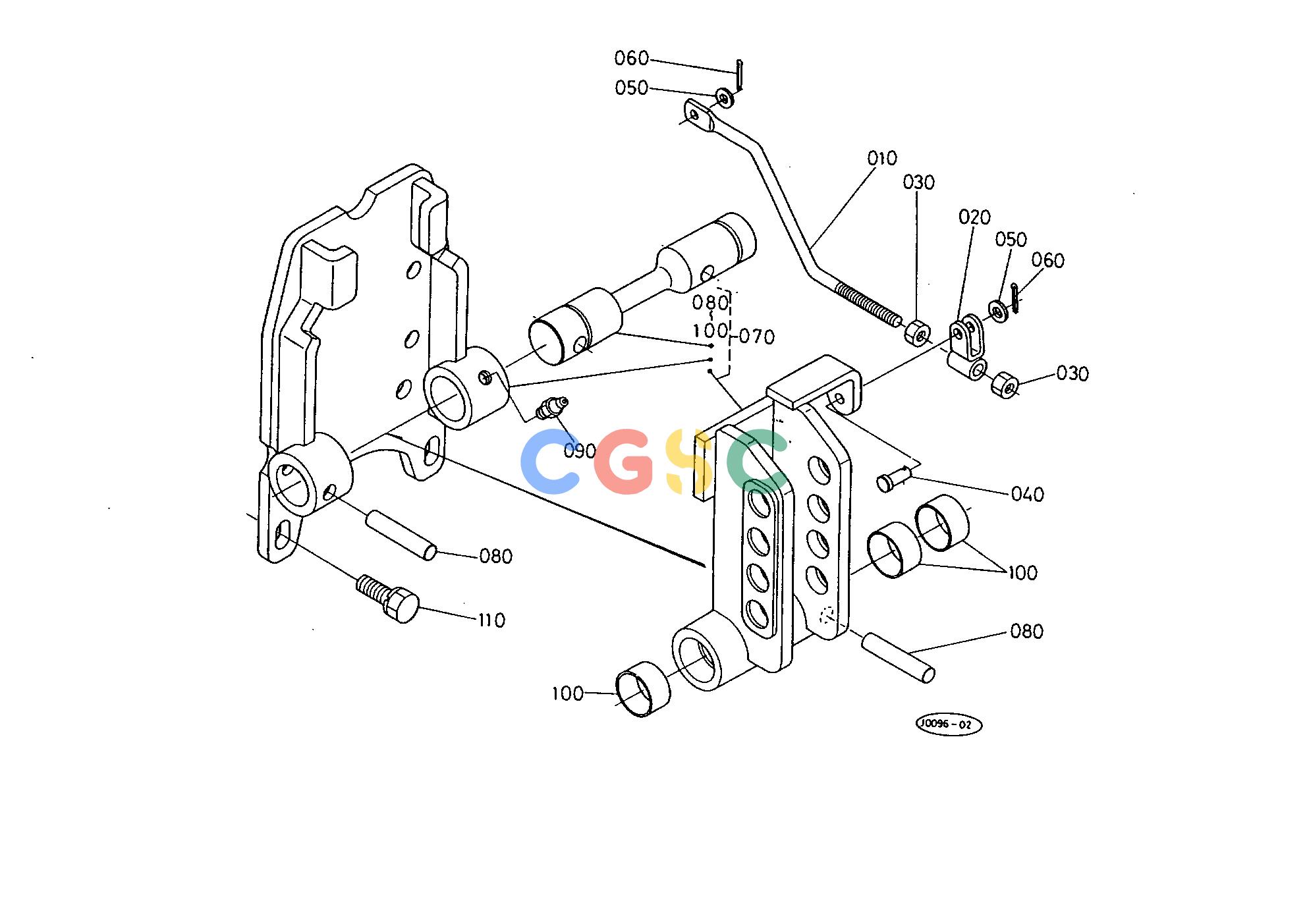

久保田零件查询T11800 TOP LINKAGE BRACKET [OPTION] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243041310
|
[1] |
ROD DRAFT CONTROL
|
0.1980(lbs); 0.090
|
| 020. |
3526041320
|
[1] |
HOLDER CONTROL
|
0.0660(lbs); 0.030
|
| 030. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 040. |
0512250818
|
[1] |
PIN JOINT
|
0.0176(lbs); 0.008
|
| 050. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
0551150218
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
3243041400
|
[1] |
COMP HOLDER TOP LINK
|
0.0000(lbs); 0.000
|
| 080. |
3730041440
|
[2] |
PIN STRAIGHT
|
0.1210(lbs); 0.055
|
| 090. |
0661310010
|
[2] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 100. |
3730041450
|
[3] |
BUSH
|
0.0572(lbs); 0.026
|
| 110. |
0113351230
|
[6] |
BOLT
|
0.0880(lbs); 0.040
|
