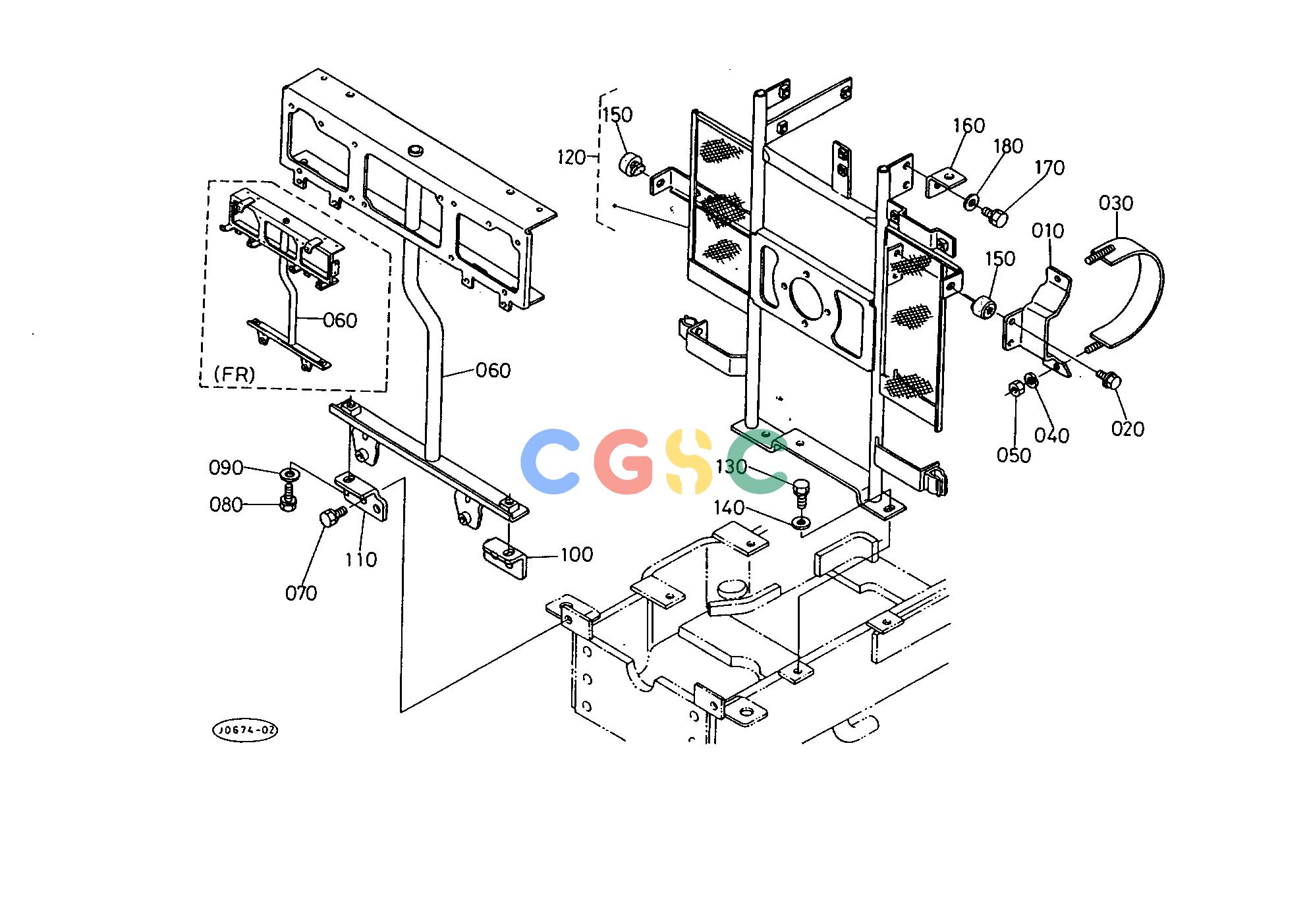

久保田零件查询T12202 FRONT GRILLE SUPPORT [NEW TYPE] ## S.No.:L2250F;>=11639 L2250DT;>=53383 L2550F;>=11051 L2550DT;>=53612 HOOD(BONNET) AND CHASSISEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
471 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135113910
|
[1] |
SUPPORT AIR CLEANER
|
0.5500(lbs); 0.250
|
| 020. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 030. |
3135113920
|
[1] |
BAND AIR CLEANER
|
0.3520(lbs); 0.160
|
| 040. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 050. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
3243018310
|
[1] |
SUPPORT GRILLE
|
4.1800(lbs); 1.900
|
| 060. |
3242518310
|
[1] |
SUPPORT GRILLE
|
5.7200(lbs); 2.600
|
| 070. |
0113351020
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 080. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 090. |
0401550080
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 100. |
3243018320
|
[1] |
STAY FRONT GRILLE LH
|
0.1760(lbs); 0.080
|
| 110. |
3243018330
|
[1] |
STAY FRONT GRILLE RH
|
0.1980(lbs); 0.090
|
| 120. |
3243099100
|
[1] |
SUPPORT BONNET
|
9.4600(lbs); 4.300
|
| 130. |
0112350818
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 140. |
0401550080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 150. |
3040017980
|
[2] |
RUBBER BLOCK
|
0.0220(lbs); 0.010
|
| 160. |
3135118394
|
[2] |
SUPPORT BONNET
|
0.0880(lbs); 0.040
|
| 170. |
0112350816
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 180. |
0401550080
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
