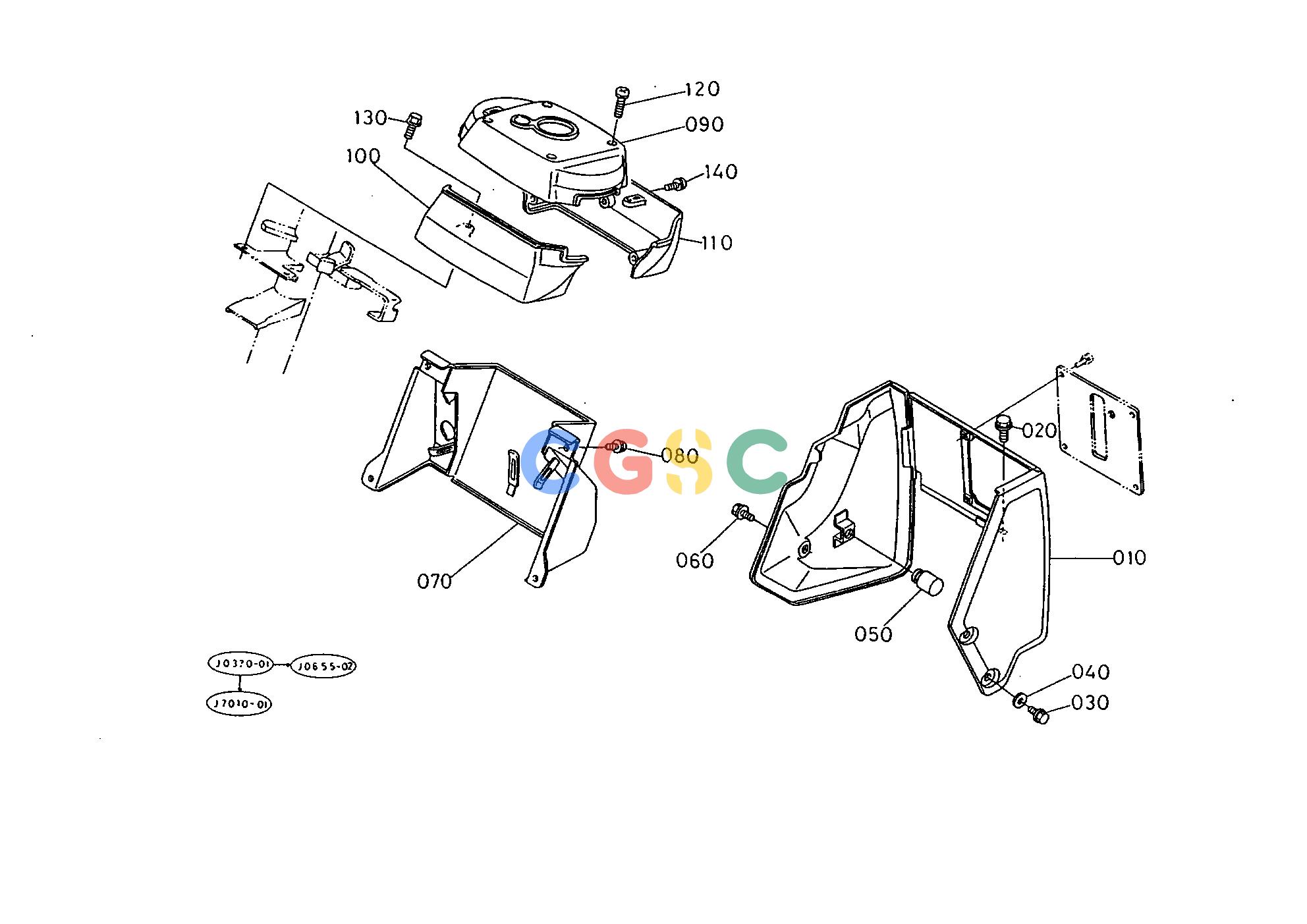

久保田零件查询T12602 MAIN AND PTO CHANGE COVER [NEW TYPE] ## S.No.:L2250F;>=11639 L2250DT;>=53383 L2550F;>=11051 L2550DT;>=53612 HOOD(BONNET) AND CHASSISEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
138 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243024020
|
[1] |
COMP.COVER PTO
|
0.0000(lbs); 0.000
|
| 010. |
3248024020
|
[1] |
COMP.COVER PTO
|
0.0000(lbs); 0.000
|
| 020. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 030. |
0175450612
|
[2] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 040. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 050. |
3135124330
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 060. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
3135124410
|
[1] |
BOARD SWITCH
|
0.0000(lbs); 0.000
|
| 070. |
3247024410
|
[1] |
BOARD SWITCH
|
0.0000(lbs); 0.000
|
| 080. |
0175450612
|
[4] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 090. |
3135124425
|
[1] |
COVER CHANGE UPPER
|
0.0000(lbs); 0.000
|
| 100. |
3135124430
|
[1] |
COVER CHANGE FRONT
|
0.2090(lbs); 0.095
|
| 110. |
3040024440
|
[1] |
COVER CHANGE REAR
|
0.2090(lbs); 0.095
|
| 120. |
3135124450
|
[4] |
SCREW WITH WASHER
|
0.1760(lbs); 0.080
|
| 130. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 140. |
3135124460
|
[3] |
SCREW WITH WASHER
|
0.0088(lbs); 0.004
|
